Fiat Panda (141) Factory Service Manual (1986-2003)04 · 33 Braking system
04 · General

Removing (page 2 of 2)

Make
Fiat
Model
Panda (141) Factory Service Manual
Year
1986–2003
Section
Hydraulic operation (2000 range)
33 Braking systemRemoving · page 2 of 2

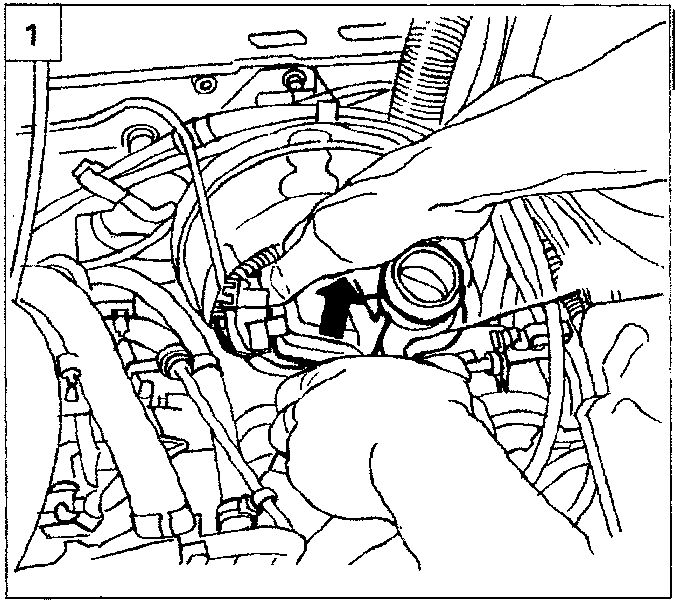

Diagram showing hands removing the brake fluid reservoir from the engine compartment
  1. Remove the brake fluid reservoir;

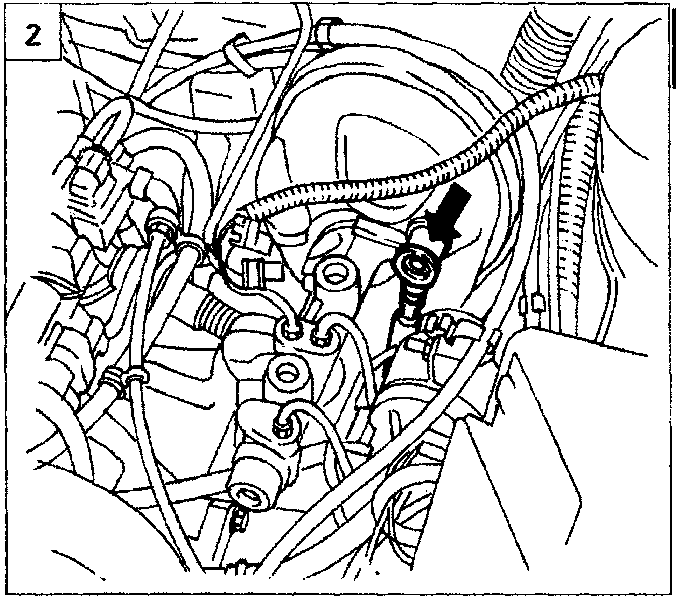

Diagram showing the single-acting vacuum valve being disconnected
  1. Disconnect the single-acting vacuum valve;
  2. Undo the connectors for the rigid brake pipes;

When carrying out this operation, take care not to damage the brake pipes.

  1. Extract the split pin to release the brake servo push rod from the pin on the pedal.

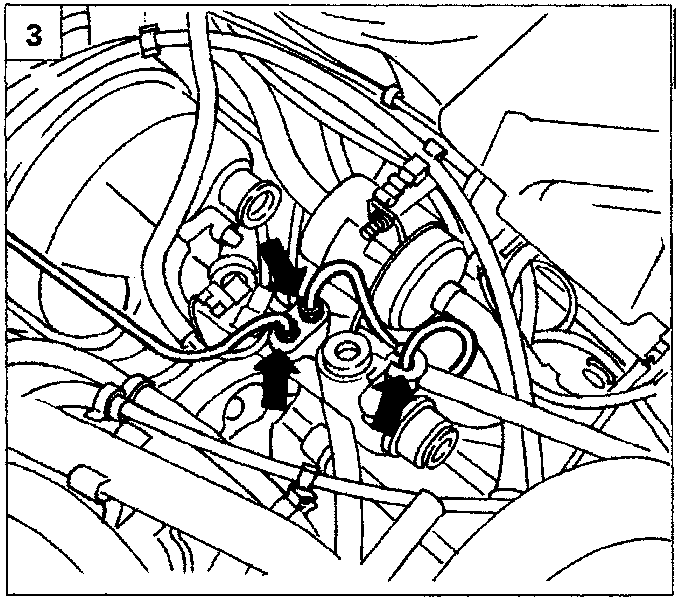

Diagram showing the connection points for the rigid brake pipes and related components in the engine bay

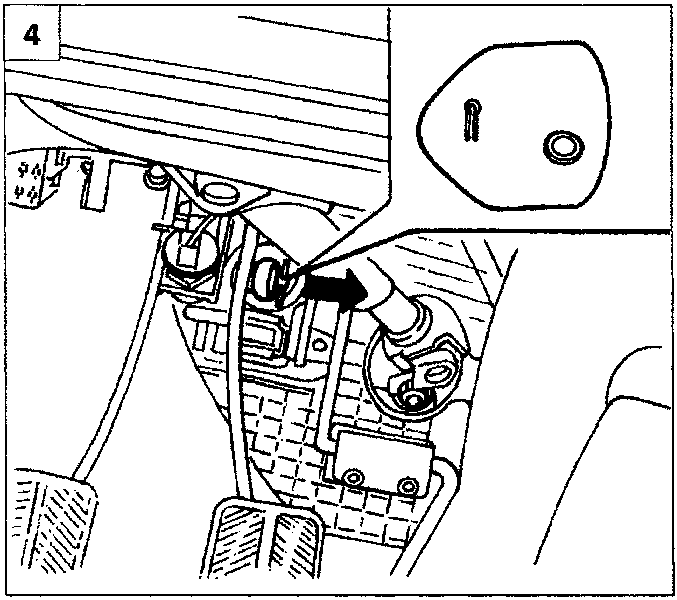

Diagram showing the extraction of the split pin releasing the brake servo push rod from the pedal assembly
