Removing-refitting

REMOVING-REFITTING

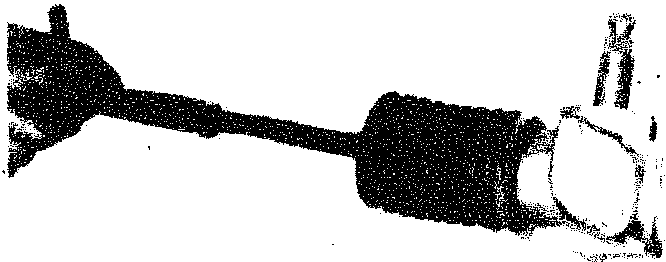

Removing-refitting track rod complete with track rod end

Check that the track rod end does not show signs of seizing or excess wear or it must be replaced.

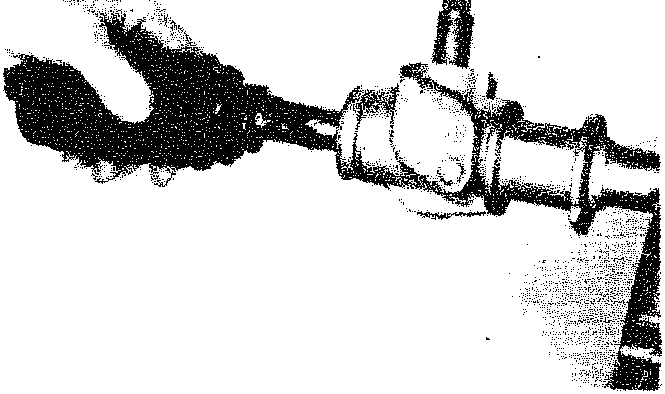

Removing-refitting protective rubber boot and seal

Carefully check that there are no holes or tears in the boot or it must be replaced.

Before fitting the pinion side boot, apply the recommended amount of grease.

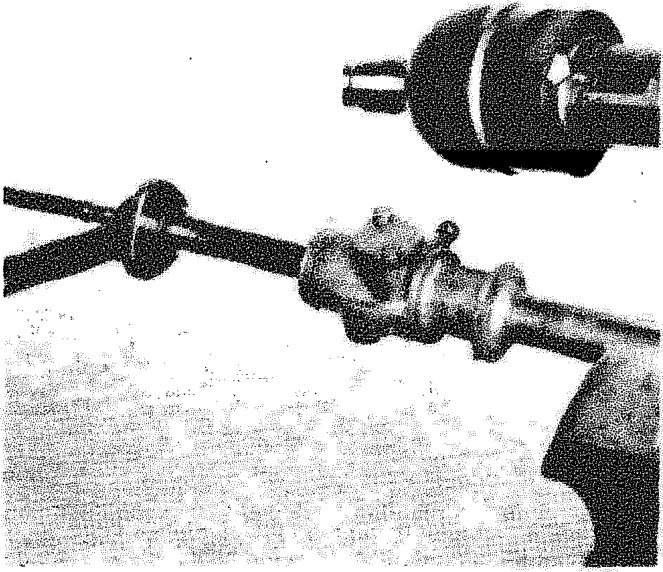

Removing-refitting ball joint

The ball joint must not show signs of excess seizing but must be free to move in all directions without failling under its own weight.

After fitting, stake the edge of the ball joint seal as shown by the arrow.
