55 Electrical systemElectric door lock device

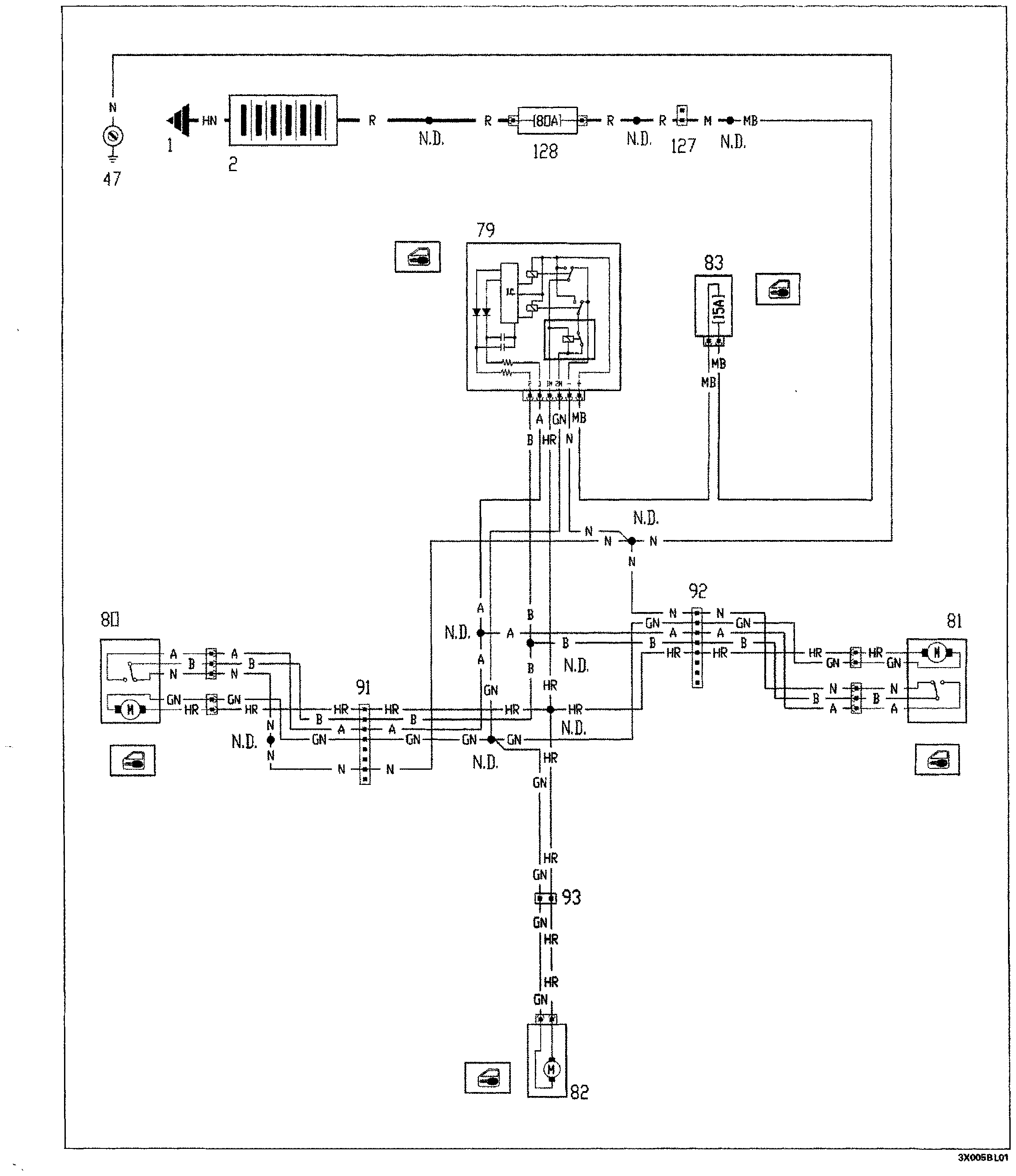

Electric door lock device – diagram from the 55 Electrical system chapter of the Fiat Panda (141) Factory Service Manual (1986-2003) factory manual.
Electric door lock device
See key at end of wiring diagrams.
