Instrument panel connections
- Make
- Fiat
- Model
- Panda (141) Factory Service Manual
- Year
- 1986–2003
- Section
- Wiring diagrams (2000 range) › Instrument panel connections
‹ Prev Direction indicators and warning light - Hazard warning lights and warning light - Reversing lights - Rear fog lights anNext › Instrument panel connections (1108 MPI 4x4)
55 Electrical systemInstrument panel connections

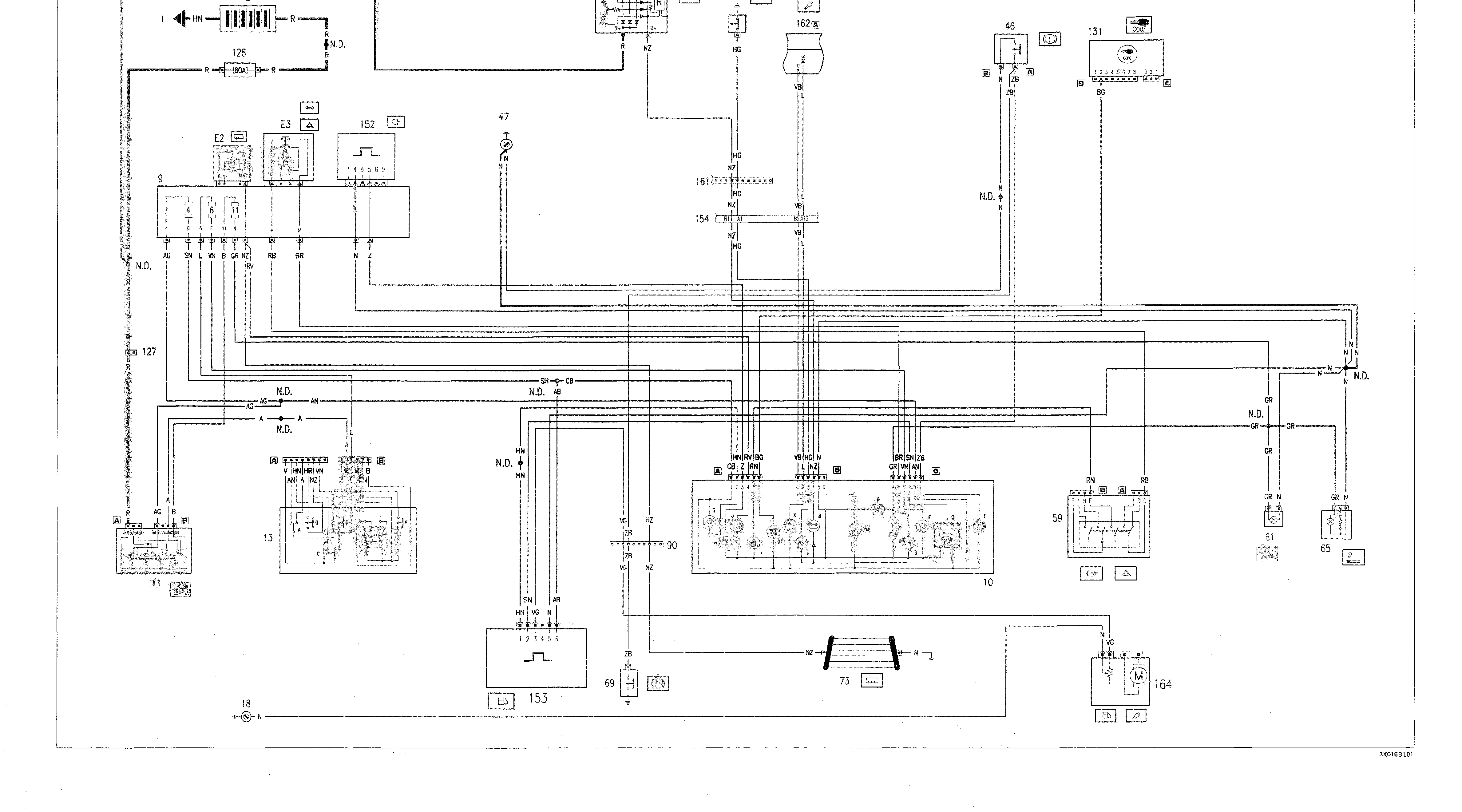

Instrument panel connections – diagram from the 55 Electrical system chapter of the Fiat Panda (141) Factory Service Manual (1986-2003) factory manual.
Instrument panel connections
See key at end of wiring diagrams.
