EngineEngine oil recovery pipe - r + r

Engine oil recovery pipe - r + r

Operation 1080D30 · Crankcase vapour/gas recirculation system

1.3 JTD 16v

Removing

Remove the car from the ramps.

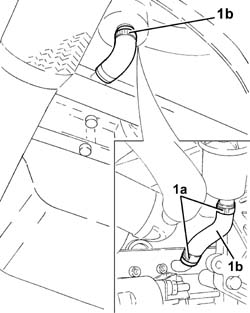

1. Loosen the bands (1a) and remove the engine oil vapour recovery pipe (1b).

Refitting

Fit the engine oil recovery pipe in place and fasten it using the bands.
