Wiring diagrams and electrical functionsEarths - wiring diagram

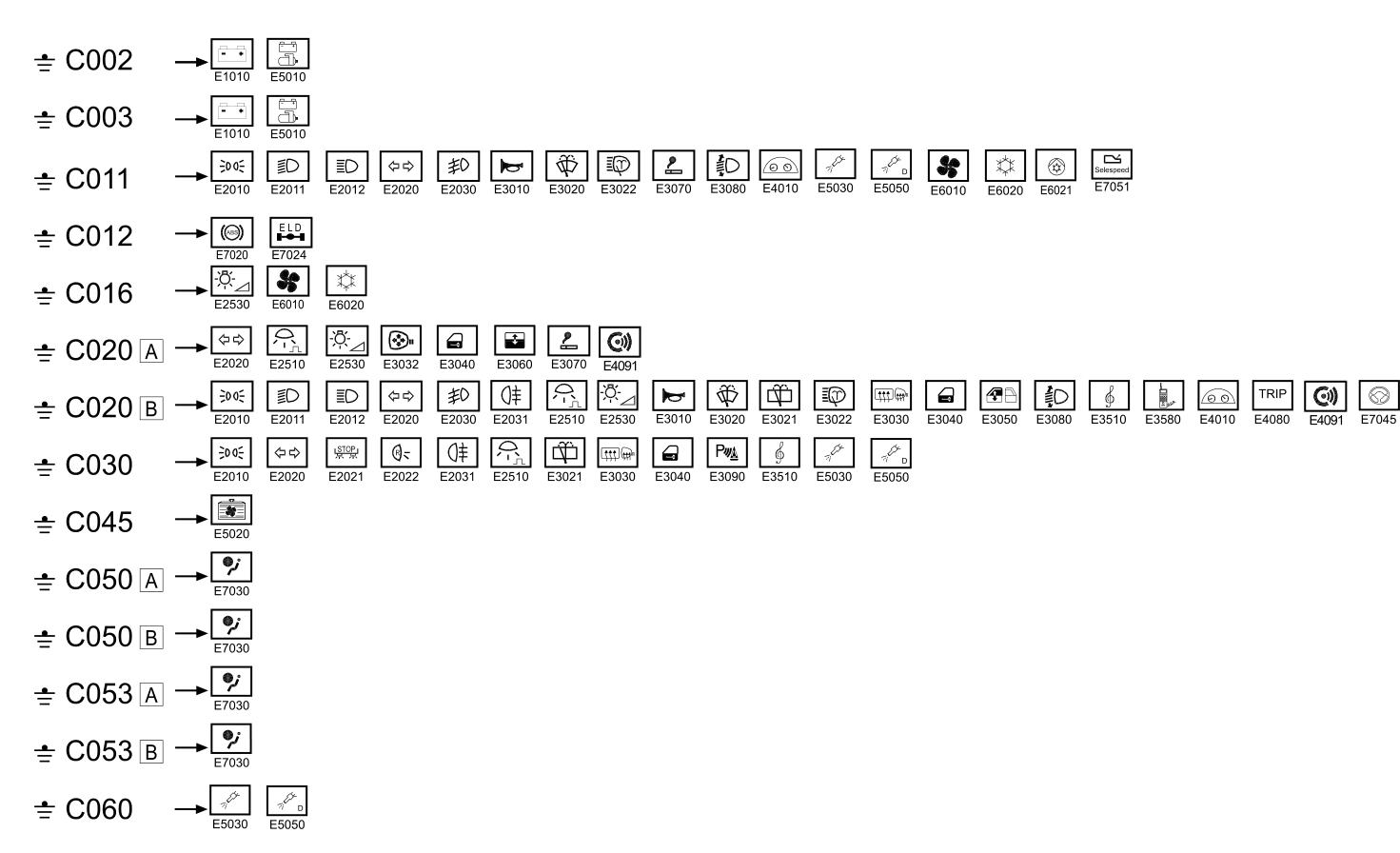

EARTHS - WIRING DIAGRAM
Wiring diagram
COMPONENTS
| Component code | Description | Reference to the assembly |
|---|---|---|
| C2 | Battery earth on engine | |
| C3 | Battery earth on bodyshell | |
| C11 | Right front earth | |
| C12 | ABS front earth | |
| C16 | Air conditioning unit earth | |
| C20 | Passenger dashboard earth | |
| C30 | Left rear earth | |
| C45 | Fan earth | |
| C50 | Air Bag system earth | |
| C53 | Side Bag + Head Bag earth | |
| C60 | Injection ECU earth |
