Abs - component location
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Vehicle electronic systems › Abs - component location
Wiring diagrams and electrical functionsAbs - component location

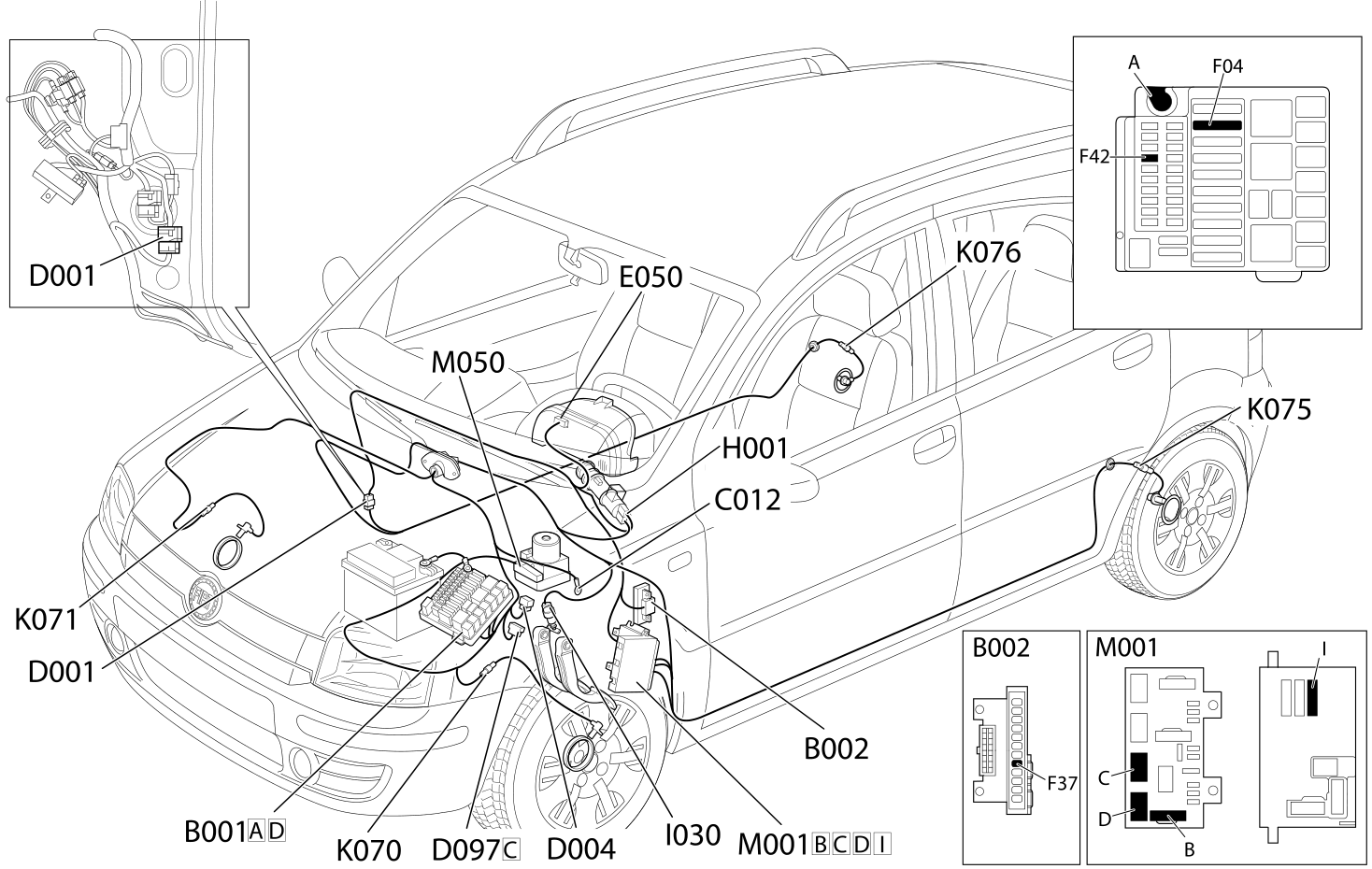

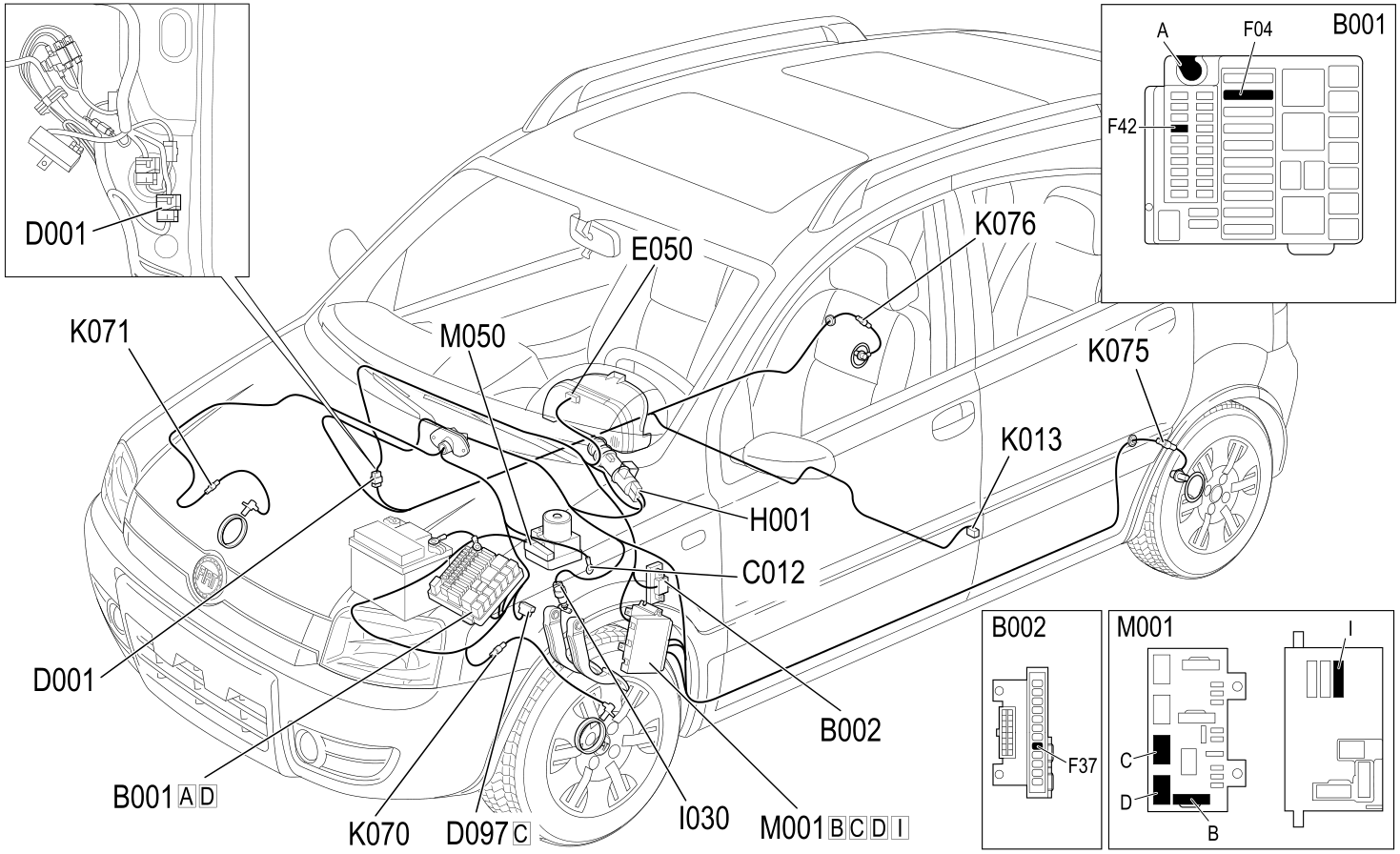

ABS - COMPONENT LOCATION
Component location
COMPONENTS
| Component code | Description | Reference to the assembly |
|---|---|---|
| B1 | Engine compartment junction unit | 5505C |
| B2 | Junction unit under dashboard | 5505C |
| C12 | ABS front earth | |
| D1 | front/dashboard coupling | |
| D4 | Front/engine coupling | |
| D97 | Short circuit coupling | |
| E50 | Instrument panel | 5560B |
| H1 | Ignition switch | 5520A |
| I30 | Brake pedal switch | 5550D |
| K70 | Left front wheel sensor for ABS | 3340A |
| K71 | Right front wheel sensor for ABS | 3340A |
| K75 | Left rear wheel sensor for ABS | 3340A |
| K76 | Right rear wheel sensor for ABS | 3340A |
| K84 | Speedometer sensor | |
| M1 | Body computer | 5505A |
| M50 | ABS control unit | 3340A |
