00 Introduction and technical dataGlazed
GLAZED

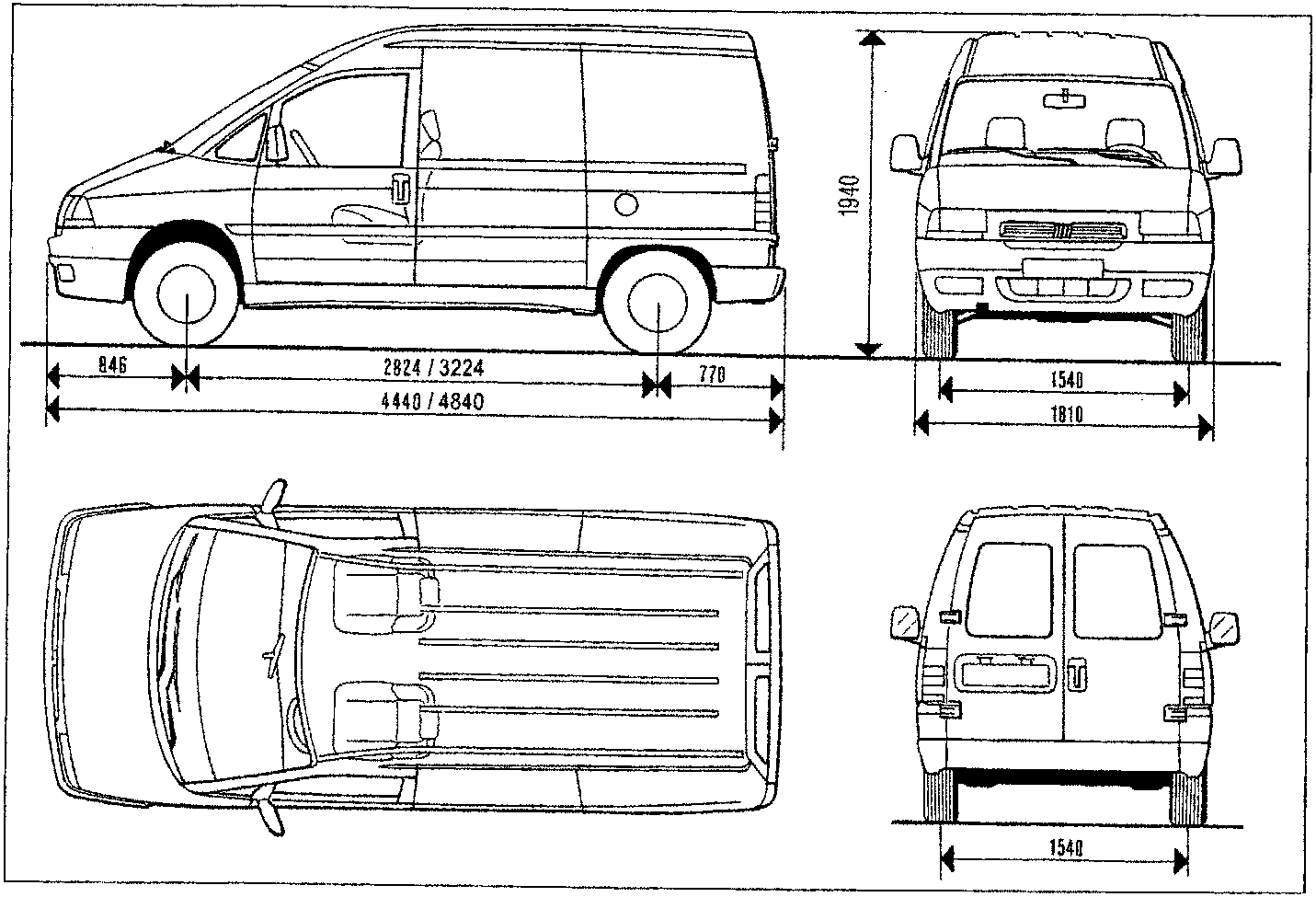

Long wheelbase version
| 1957 JTD Van |
1957 JTD Extra capacity van |
1957 JTD Long wheelbase van |
||
|---|---|---|---|---|
| Weight of vehicle in running order (with supplies spare wheel tools and accessories) | kg | 1400 | 1415 | 1445 |
| Payload including driver | kg | 815 | 900 | 870 |
| Maximum permitted loads | ||||
| front axle | kg | 1230 | 1230 | 1230 |
| rear axle | kg | 1230 | 1300 | 1300 |
| total | kg | 2215 | 2315 | 2315 |
| Maximum load on the roof | kg | 150 | 150 | 150 |
| Weight of trailer with brakes | kg | 1300 | 1300 | 1300 |
| Weight of trailer without brakes | kg | 750 | 750 | 750 |
| Max load on the tow hook (trailer with brakes) | kg | 60 | 60 | 60 |
