00 Introduction and technical dataCombi · page 1 of 4

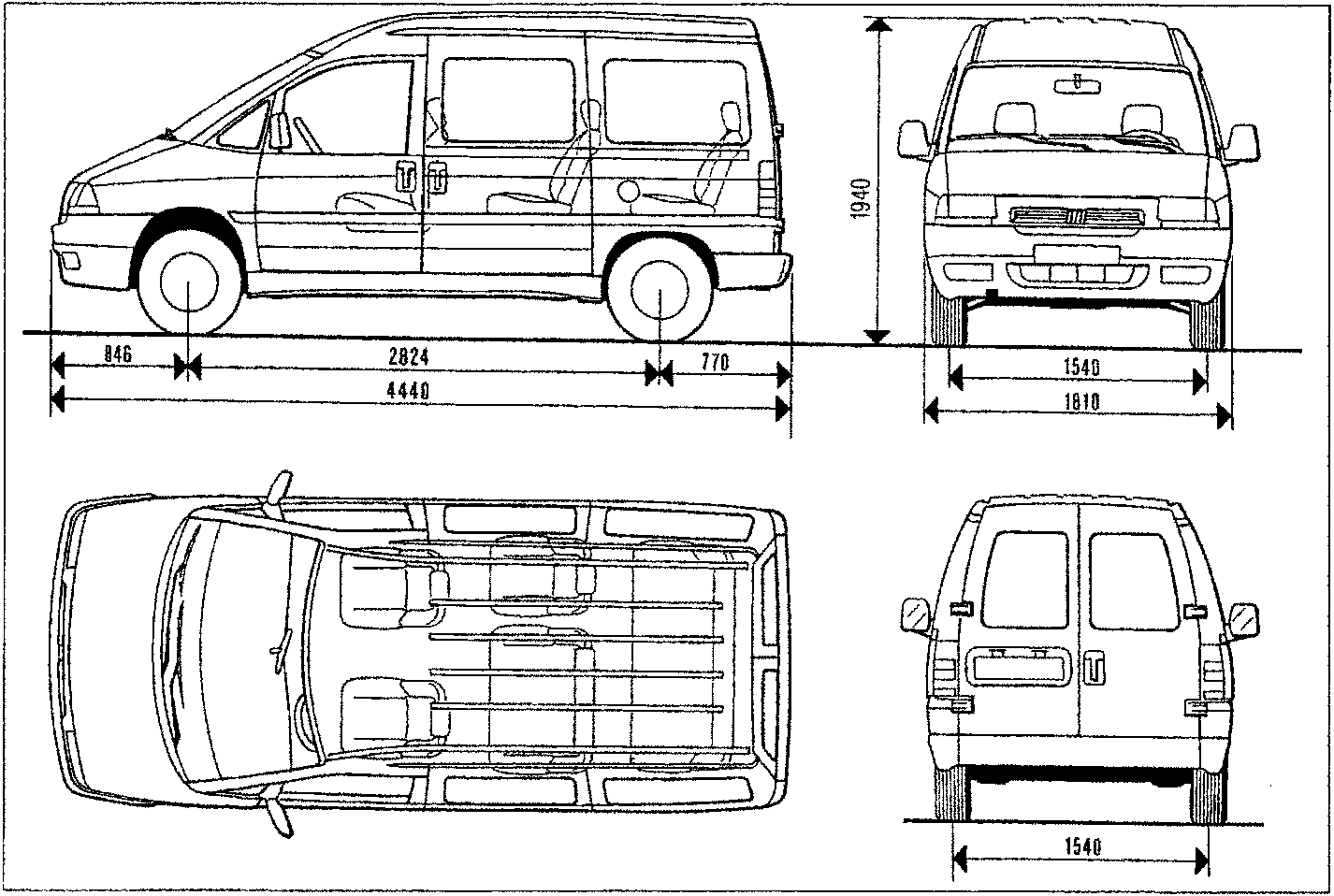

COMBI
| 1957 JTD Long wheelbase van |
|
|---|---|
| Weight of vehicle in running order (with supplies spare wheel tools and accessories) | kg 1595 |
| Payload including driver | kg 5p + 360 6p + 285 8p + 135 9p + 60 |
| Maximum permitted loads front axle rear axle total |
kg 1230 kg 1230 kg 2330 |
| Maximum load on the roof | kg 150 |
| Weight of trailer with brakes | kg 1300 |
| Weight of trailer without brakes | kg 750 |
| Max load on the tow hook (trailer with brakes) | kg 60 |
