The fuel consumption figures in accordance with directive 93/116/CE have been defined during the course of homologation tests which include
An urban cycle which includes a cold start followed by a simulated varied urban cycle
A non urban cycle which includes frequent acceleration in all gears simulating normal out of town use of the vehicle The speed varies between 0 and 120 km/h
The average combined consumption includes 37/ urban cycle and 63/ non urban cycle
The type of route traffic conditions driving style weather conditions trim level/equipment/accessories presence of special equipment and the state of the vehicle in general can lead to different fuel consumption figures from those established using the above mentioned procedures
The CO exhaust emissions (in g/km) are measured during the average combined cycle
| ENGINE TYPE | 1997 JTD 94 CV | 1997 JTD 109 CV | |
|---|---|---|---|
| GEARBOX | |||
| Speed km/h | 1st | 29 | 31 |
| 2nd | 52 | 59 | |
| 3rd | 83 | 95 | |
| 4th | 117 | 133 | |
| 5th | 160 | 165 | |
| R | 34 | 34 | |
| Gradient fully laden Gradient calculated and valid for moving vehicle with engine speed corresponding to maximum torque |
N A | ||
| Fuel consumption in accordance with standard 93/116/CE on transporting people (litres/100 km) |
Urban cycle | 8 4 | 7 9 |
| Extra urban cycle | 5 8 | 5 4 | |
| Combined cycle | 6 8 | 6 4 | |
| CO2 exhaust emissions (g/km) | 182 | 171 | |

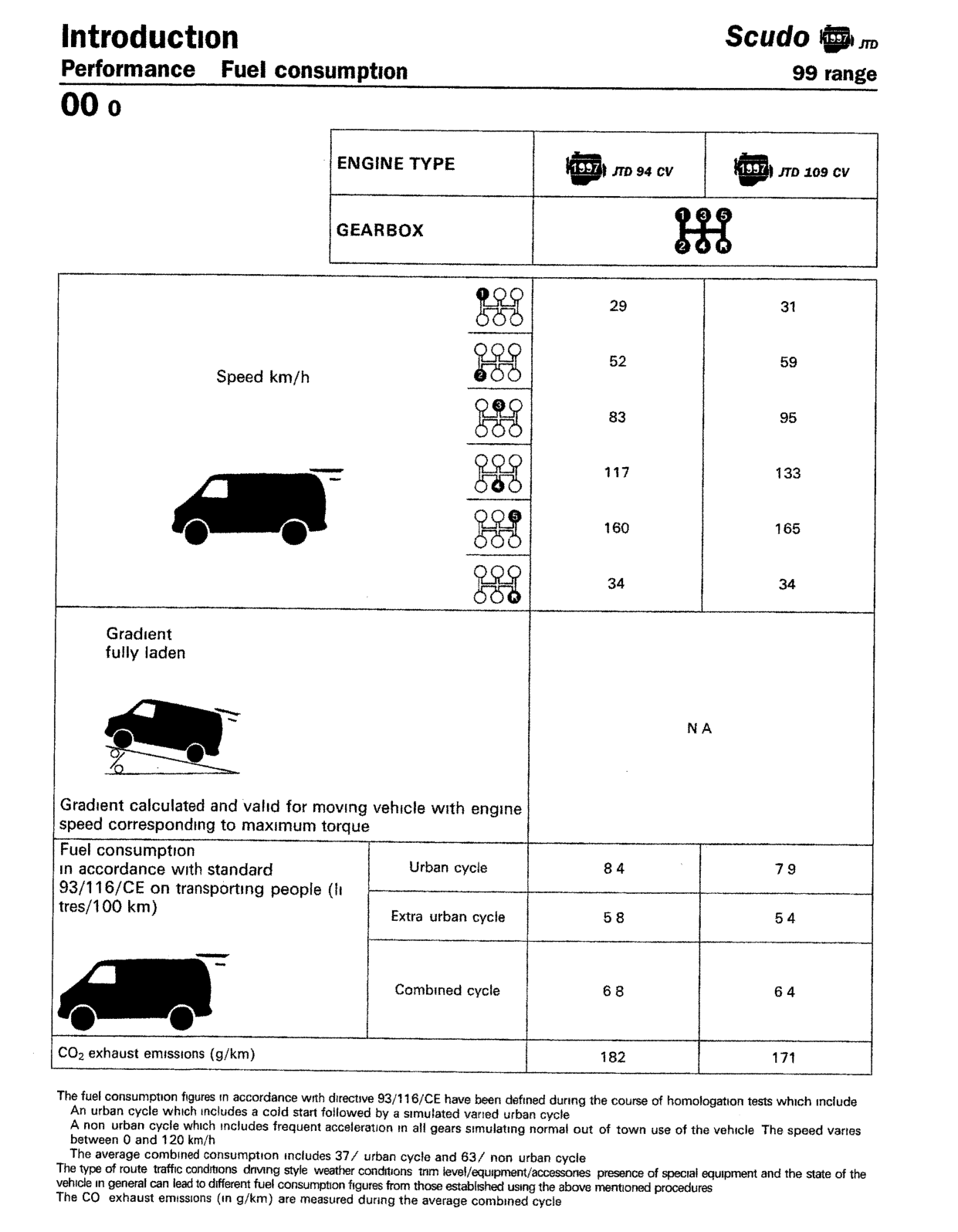

Original page
