00 Introduction and technical dataCombi · page 4 of 4
(▲) Distilled water
(●) Quantity for version with headlamp washers
(■) For temperatures below 15 C the use of SELENIA WR Diesel is recommended
* Engine sump only
| Product | Parts to be filled | Quantity | |
|---|---|---|---|
| dm3 (l) | (kg) | ||
| Diesel | 80 | ||
| 50% + (▲) | Total capacity Cooling system |
9 | |
| SELENIA ■ Turbo Diesel (SAE 10 W/40) |
Total capacity | 4 5 | |
| Capacity of sump and filter (periodic changes) |
4 5 4 2 * |
4 00 3 8 * |
|
| a = TUTELA ZC 75 SYNTH | 1 9 | 1 7 | |
| a = TUTELA GI/A | a | 1 3 | 1 17 |
| b = K 854 | |||
| c = TUTELA MRM2 | b | 0 095 | |
| TUTELA TOP 4 (270 C) | Total capacity | without ABS | 0 47 |
| with ABS | 0 52 | ||
| ☀ 3% | 4 5 10 (●) |
||
| ❄ 20 C 50% | |||
| < 20 C 100% | |||

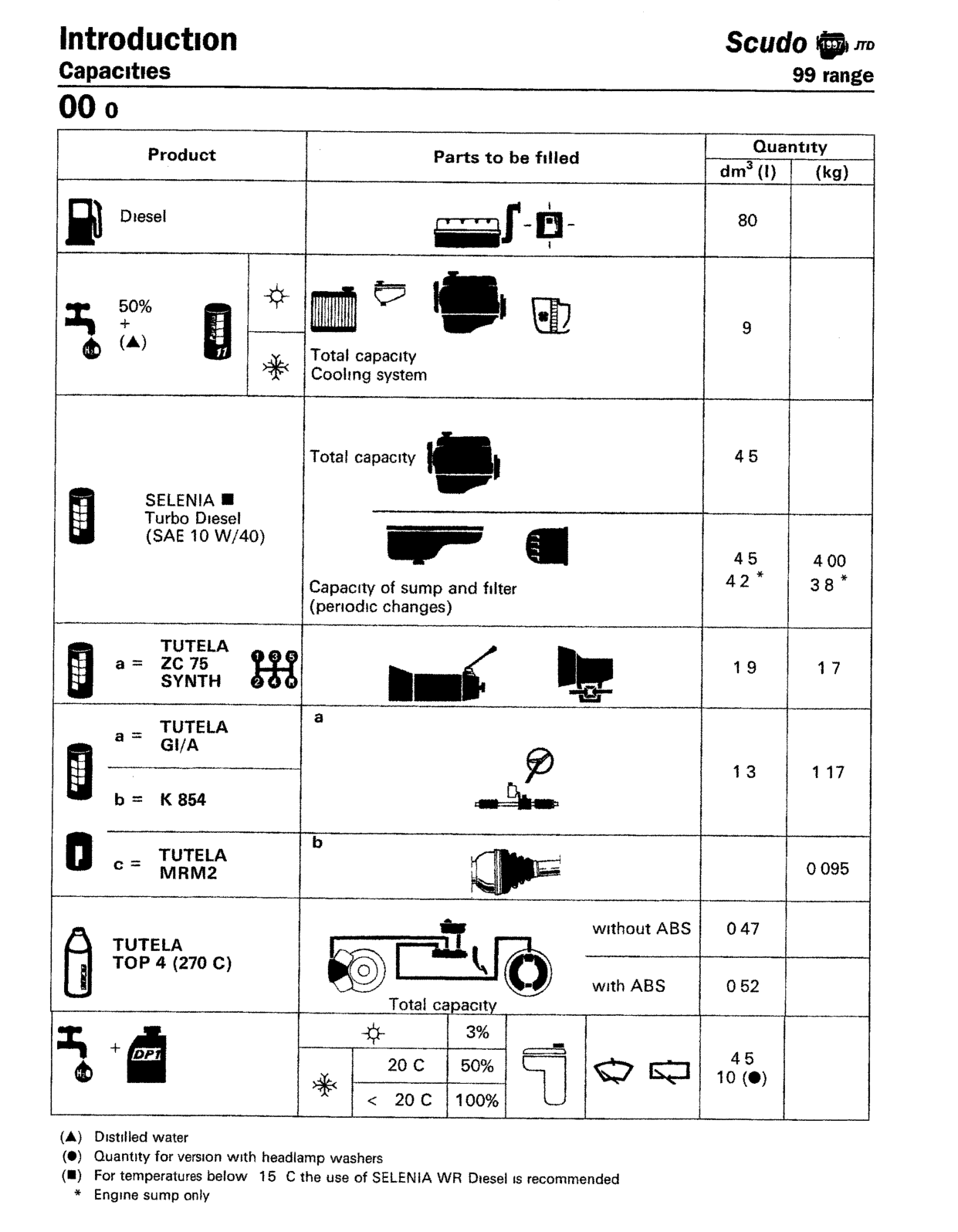

Original page
