00 Introduction and technical dataSpecifications · page 1 of 5
SPECIFICATIONS
| [Diagram] | Cycle | Diesel 4 stroke | ||
|---|---|---|---|---|
| Timing gear | single overhead camshaft | |||
| Fuel system type | Direct injection – Bosch Common Rail EDC 15C2 | |||
| [Icon: 4 cylinders] | Number of cylinders | 4 | ||
| [Icon: bore Ø] | Cylinder liner (bore) |
mm | 85 | |
| [Icon: piston stroke] | Stroke | mm | 88 | |
| [Icon: capacity] | Capacity | cm³ | 1997 | |
| [Icon: compression ratio] | Compression ratio |
18 0 ± 0 5 | ||
| Total combustion chamber volume | cm³ | 29 37 | ||
| [Graph: power curve] | Max power CEE | kW (bhp) |
69 (94) |
80 (109) |
| rpm | 4000 | 4000 | ||
| [Graph: torque curve] | Max torque CEE | daNm (kgm) |
21 5 (22) |
25 (25 5) |
| rpm | 1750 | 1750 | ||

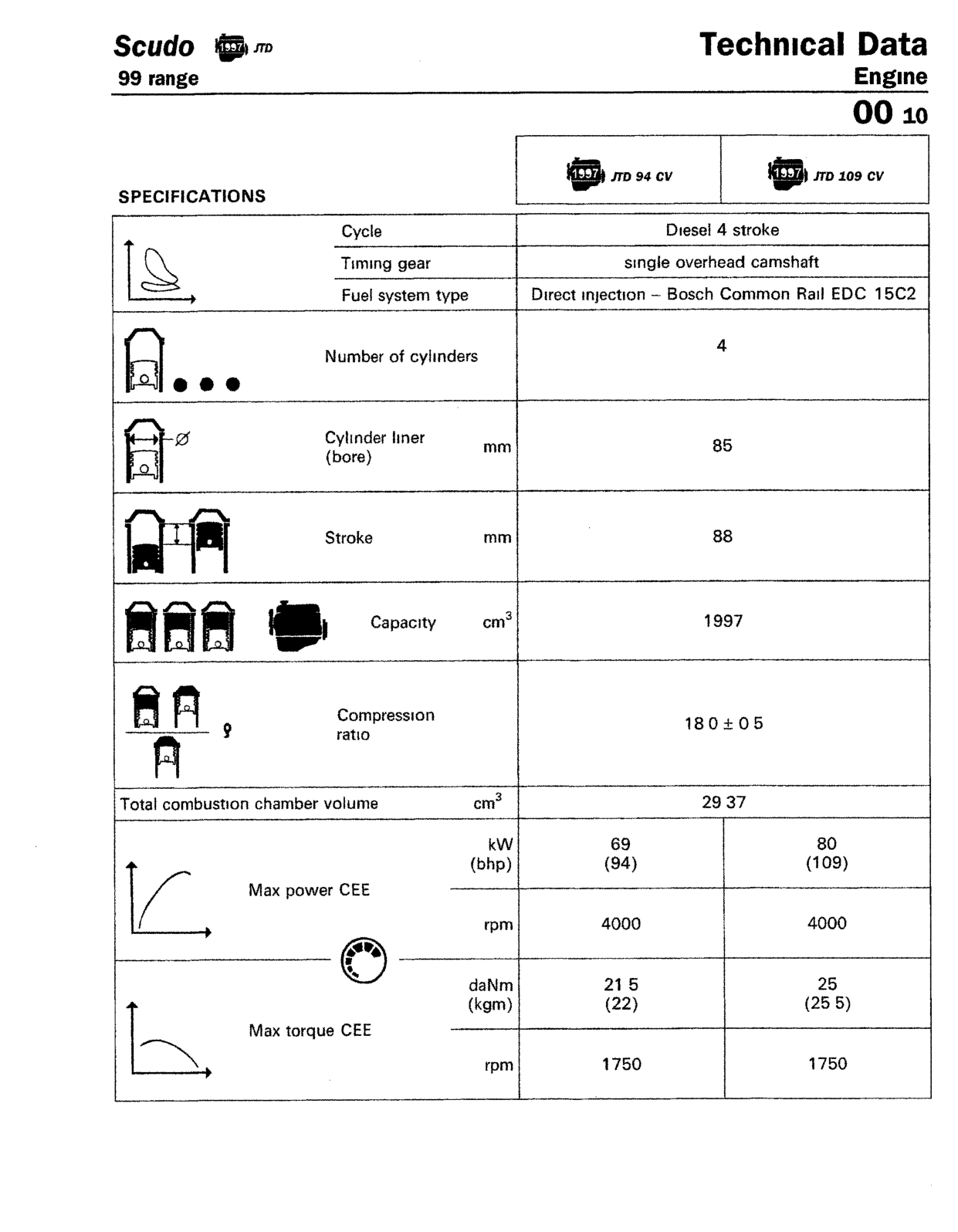

Original page
