Technical data (99 range JTD): Specifications (page 2 of 5)
- Make
- Fiat
- Model
- Scudo Factory Service Manual
- Year
- 1996–2006
- Section
- Technical data (99 range JTD)
00 Introduction and technical dataSpecifications · page 2 of 5

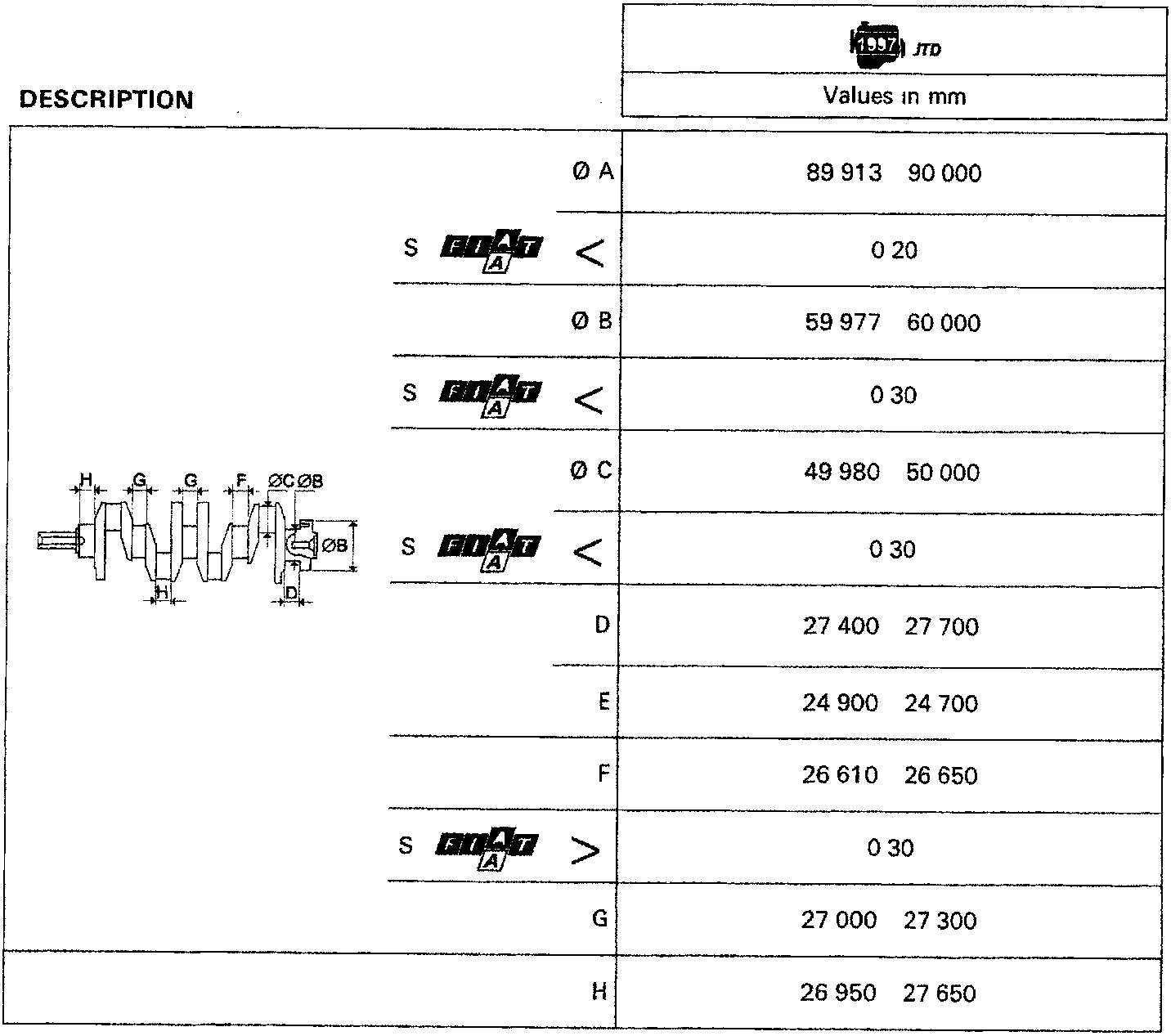

| DESCRIPTION | 1997 JTD | |
|---|---|---|
| Values in mm | ||
| Ø A | 89 913 | 90 000 |
| S [FIAT logo] < | 0 20 | |
| Ø B | 59 977 | 60 000 |
| S [FIAT logo] < | 0 30 | |
| Ø C | 49 980 | 50 000 |
| S [FIAT logo] < | 0 30 | |
| D | 27 400 | 27 700 |
| E | 24 900 | 24 700 |
| F | 26 610 | 26 650 |
| S [FIAT logo] > | 0 30 | |
| G | 27 000 | 27 300 |
| H | 26 950 | 27 650 |
