00 Introduction and technical dataSpecifications · page 3 of 5
| DESCRIPTION | JTD |
|---|---|
| Values in mm | |
| Cylinder liner Ø | 85 000 85 018 |
| Ø > | 0 60 |
| Piston Ø | N A |
| Ø > | 0 60 |
| Piston projection | 0 470 0 830 |
| Gudgeon pin housing Ø | 28 010 28 015 |
| 6 Small end bush or pin housing ع Big end bearing housing ز |
N A |
| 53 695 53 708 | |
| 7 ع ز |
30 200 30 221 |
| Small end bush &...... 28 020 28 027 |

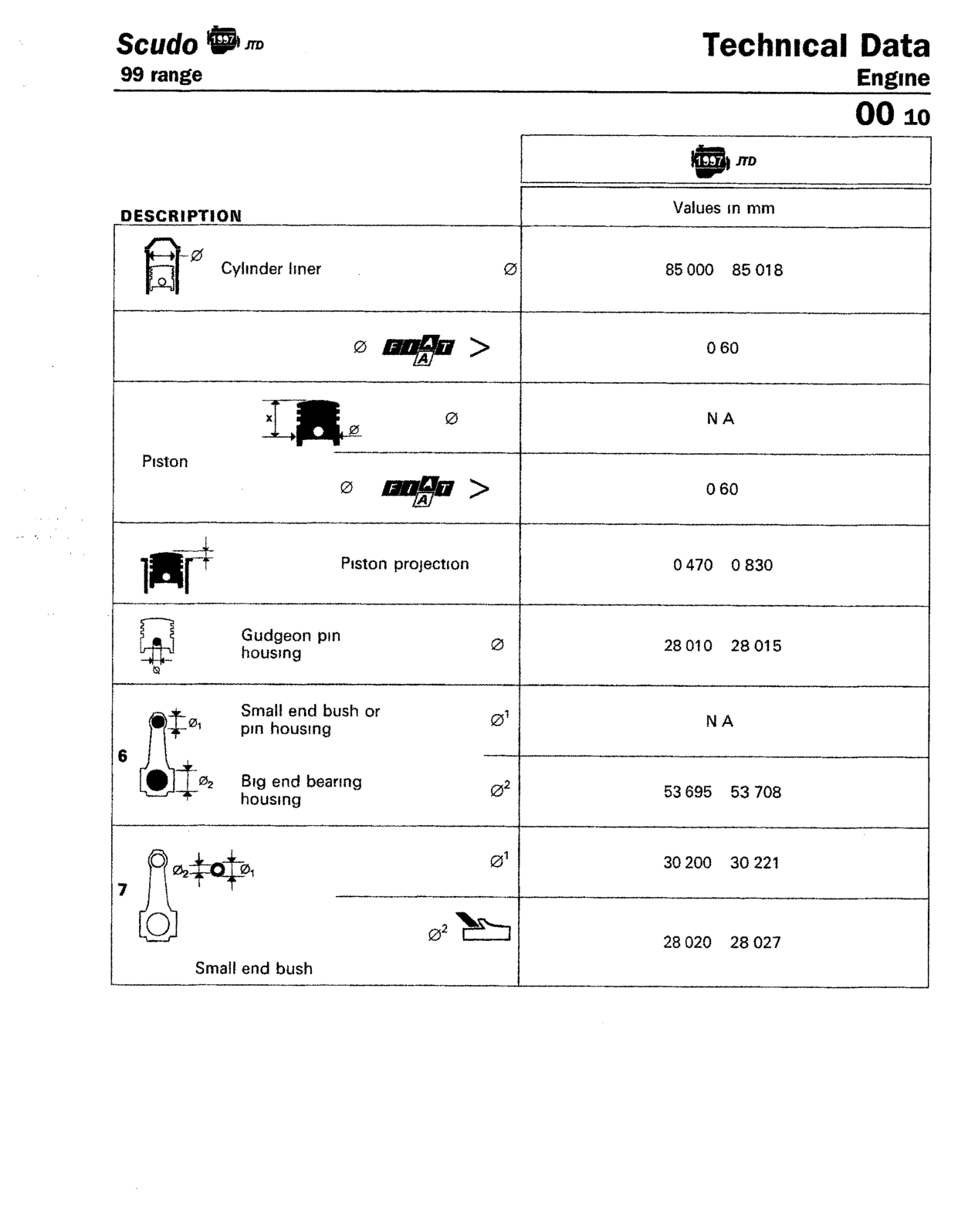

Original page
