Technical data (99 range JTD): Specifications (page 5 of 5)

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Technical data (99 range JTD)

00 Introduction and technical dataSpecifications · page 5 of 5

Values in mm

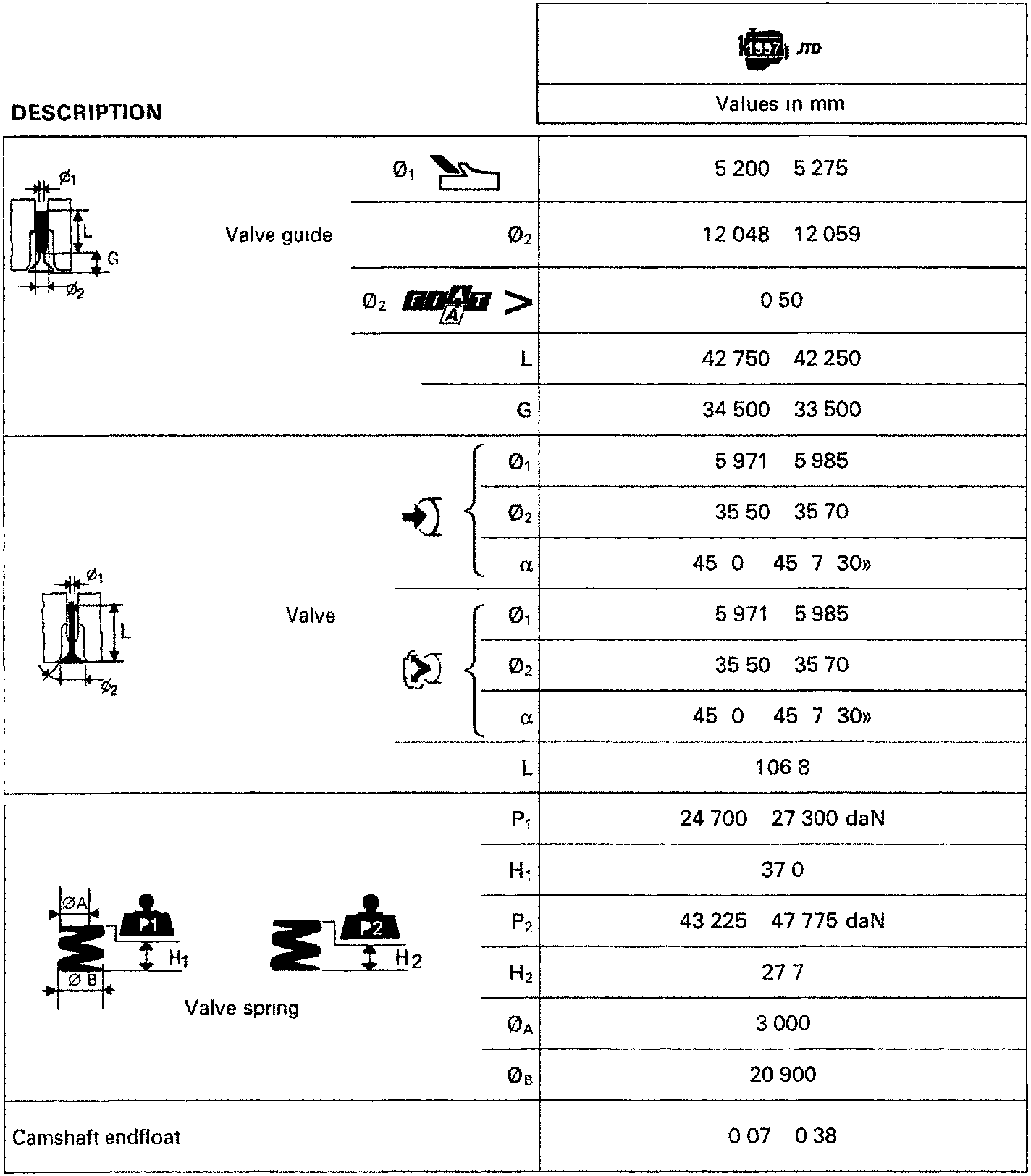

DESCRIPTION	1997.1 JTD
	Values in mm
	Valve guide	Ø1	5 200	5 275
	Ø2	12 048	12 059
	Ø2 >	0 50
	L	42 750	42 250
	G	34 500	33 500
		Valve	Ø1	5 971	5 985
			Ø2	35 50	35 70
			α	45 0	45 7 30»
				Ø1	5 971	5 985
Ø2			35 50	35 70
α			45 0	45 7 30»
L		106 8
	Valve spring	P1	24 700	27 300 daN
		H1	37 0
		P2	43 225	47 775 daN
		H2	27 7
		ØA	3 000
		ØB	20 900
Camshaft endfloat			0 07	0 38
