00 Introduction and technical dataSpecial tools
Special tools

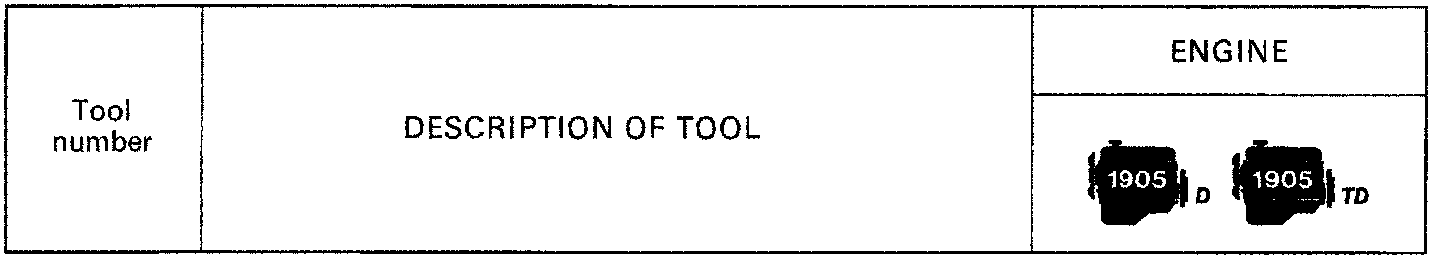

| Tool number | DESCRIPTION OF TOOL | ENGINE |
|---|---|---|
| 1846011000 | Drift (to be used with 1860854000) | ● |
| 1850160000 | Spanner for tightening lower injection pump fixing bolt | ● |
| 1852128000 | Bush for fitting-removing injectors | ● |
| 1860170000 | Bracket for locking cylinder head in the vice | ● |
| 1860183000 | Pliers for removing-refitting piston rings on piston | ● |
| 1860313000 | Tool for positioning valve seal | ● |
| 1860395000 | Tool for extracting valve guide | ● |
| 1860490000 | Valve leakage test equipment (to be used with tool 1895868000) | ● |
| 1860644000 | Tool for fitting-removing cotters (to be used with tool 1860644020) | ● |
| 1860644020 | Tool for fitting-removing cotters (to be used with tool 1860644000) | ● |
| 1860700000 | Tool for fitting pistons in cylinders | ● |
| 1860804000 | Valve retaining plane for removing valve springs | ● |
| 1860806000 | Drift for fitting oil seal on cap N°1 (flywheel side) | ● |
| 1860807000 | Tool for fitting seal on camshaft | ● |
| 1860815000 | Tool for rotating crankshaft | ● |
| 1860835000 | Tool for extracting oil seal on valve guide | ● |
