00 Introduction and technical dataRear suspension
Rear suspension
00.44
Rear suspension independent wheel, with coil springs.
Cast iron arms with bearings.
Transverse reaction beam. Rubber buffers.

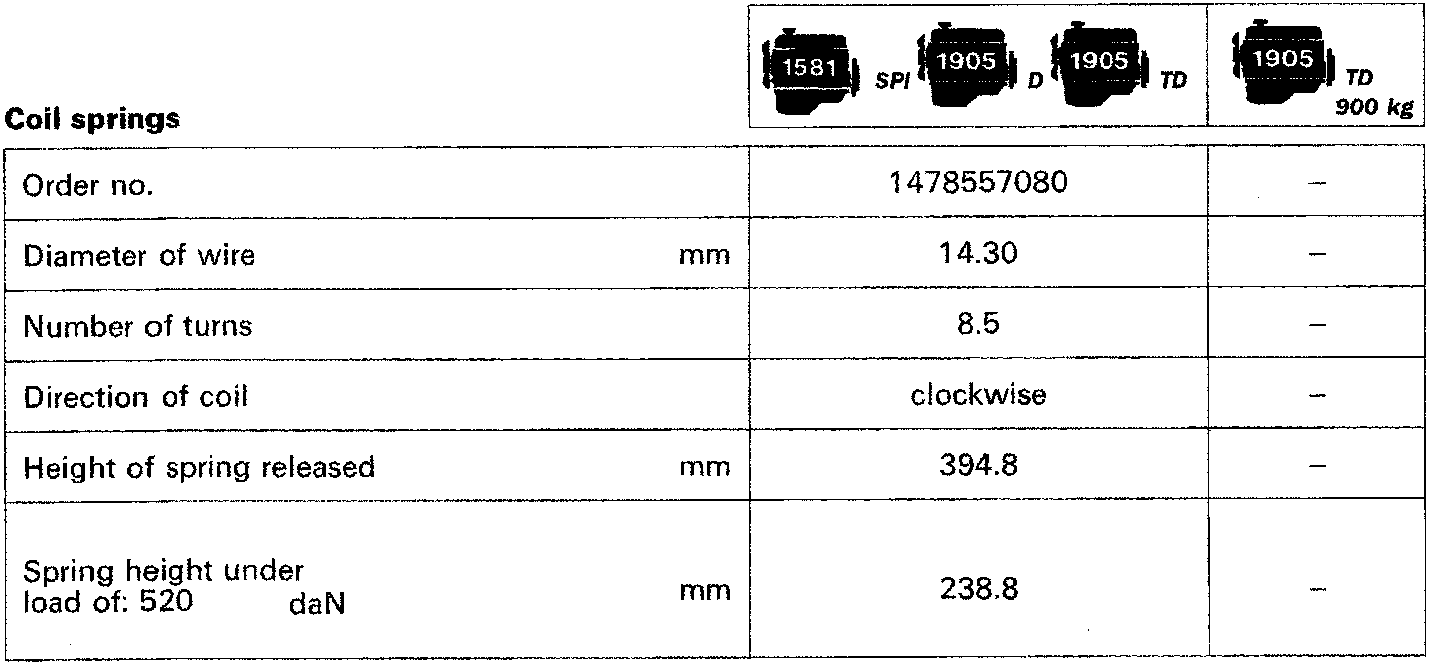

Coil springs
| Coil springs | |||
|---|---|---|---|
| Order no. | 1478557080 | – | |
| Diameter of wire | mm | 14.30 | – |
| Number of turns | 8.5 | – | |
| Direction of coil | clockwise | – | |
| Height of spring released | mm | 394.8 | – |
| Spring height under load of: 520 daN | mm | 238.8 | – |
Shock absorbers
| Shock absorbers | |||
|---|---|---|---|
| Type: telescopic, double-acting | Hydraulic | ||
| Order number | 9623938780 | – | |
| Travel (damping starts) | mm | 125 | – |
| Maximum stretch | mm | 377.5±2,5 | – |
