00 Introduction and technical dataCoil springs

Front suspension independent wheel, MacPherson type with wishbones connected to a subframe via two flexible bushes.

Offset coil springs and double-acting hydraulic dampers.

Joints with lifetime lubrication.

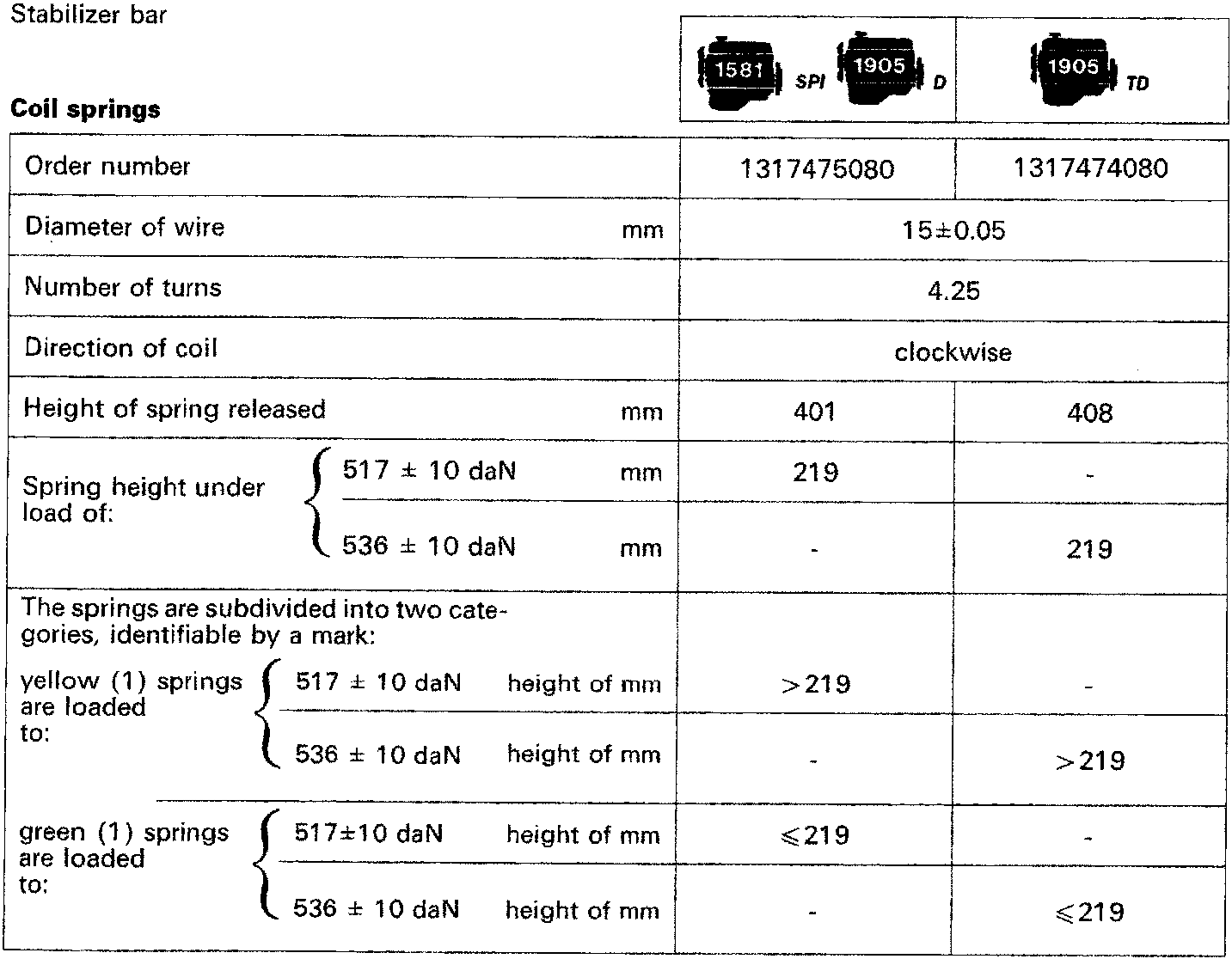

Coil springs

Stabilizer bar
Order number		1317475080	1317474080
Diameter of wire mm	15±0.05
Number of turns	4.25
Direction of coil	clockwise
Height of spring released mm	401	408
Spring height under load of:	517 ± 10 daN mm	219	-
	536 ± 10 daN mm	-	219
The springs are subdivided into two cate- gories, identifiable by a mark:
yellow (1) springs are loaded to:	517 ± 10 daN height of mm	>219	-
	536 ± 10 daN height of mm	-	>219
green (1) springs are loaded to:	517±10 daN height of mm	≤219	-
	536 ± 10 daN height of mm	-	≤219

(1) Fit to springs of the same category.

Shock absorbers

Type: telescopic, double-acting	Hydraulic
Order number	1307658080
Travel (damping starts) mm	186.5
Maximum stretch mm	510±2
