00 Introduction and technical dataWheel geometry

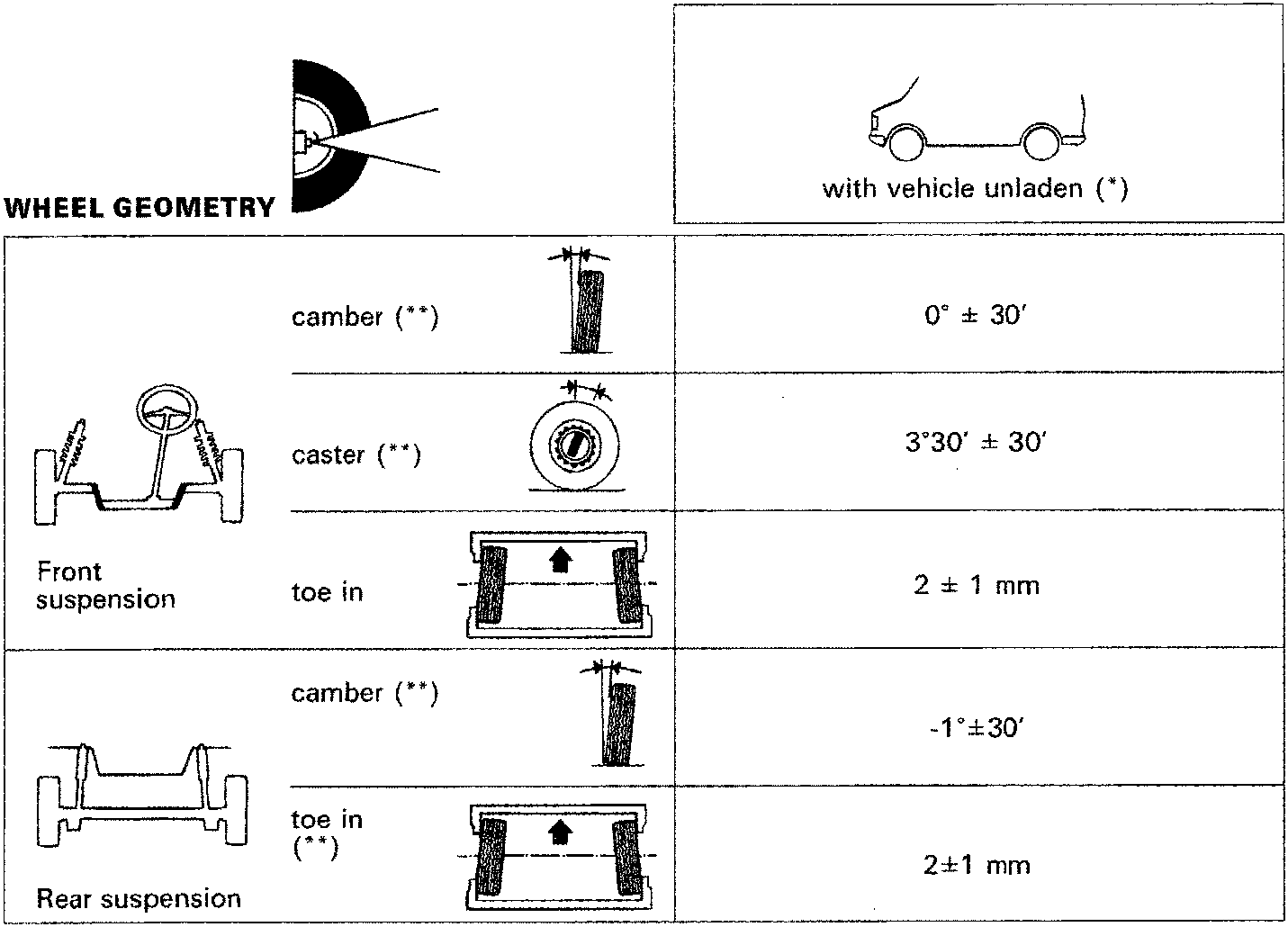

WHEEL GEOMETRY
with vehicle unladen (*)
| Front suspension | camber (**) [diagram] | 0° ± 30' |
|---|---|---|
| caster (**) [diagram] | 3°30' ± 30' | |
| toe in [diagram] | 2 ± 1 mm | |
| camber (**) [diagram] | -1°±30' | |
| toe in (***) [diagram] | 2±1 mm | |
| Rear suspension |
(*) With tyres inflated to the specified pressure and vehicle in running order
(**) Angles cannot be adjusted
(●) Data unavailable at the time of printing

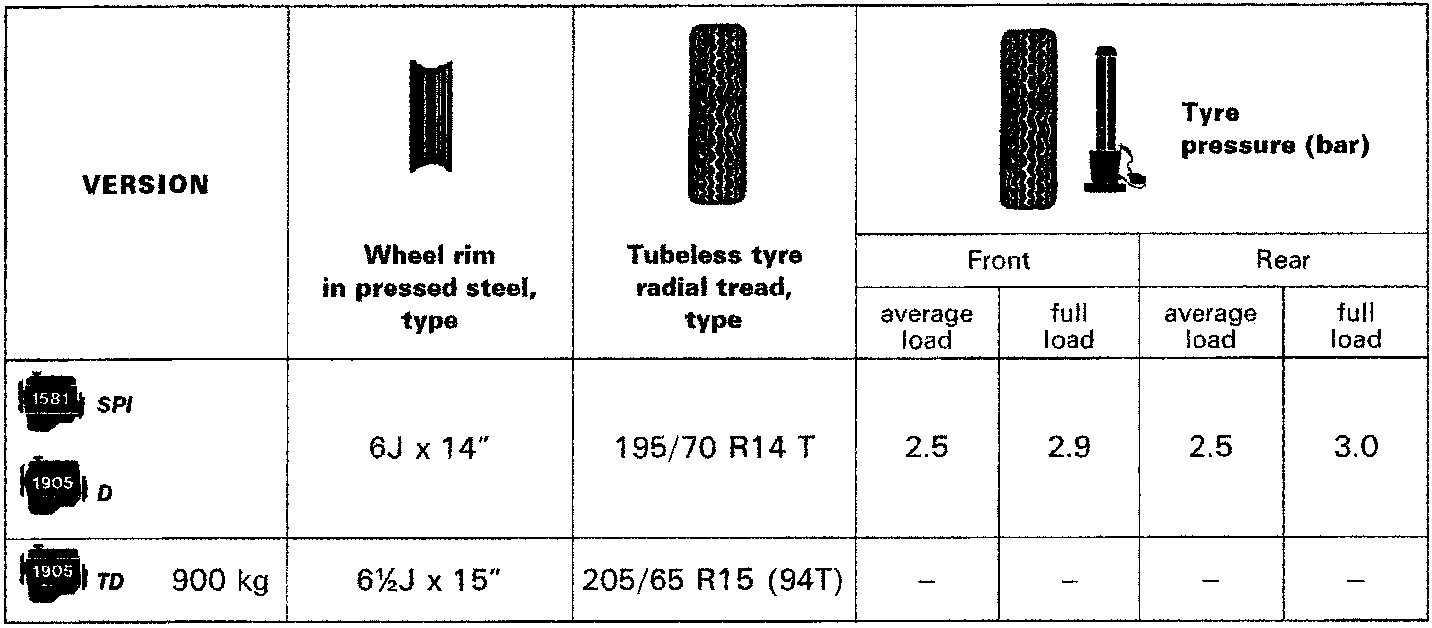

VERSION
| VERSION | Wheel rim in pressed steel, type |
Tubeless tyre radial tread, type |
Tyre pressure (bar) | |||
|---|---|---|---|---|---|---|
| Front | Rear | |||||
| average load | full load | average load | full load | |||
| 1581 SPI 1905 D |
6J x 14" | 195/70 R14 T | 2.5 | 2.9 | 2.5 | 3.0 |
| 1905 TD 900 kg | 6½J x 15" | 205/65 R15 (94T) | – | – | – | – |
