Removing - Refitting
- Position the vehicle on a lift.

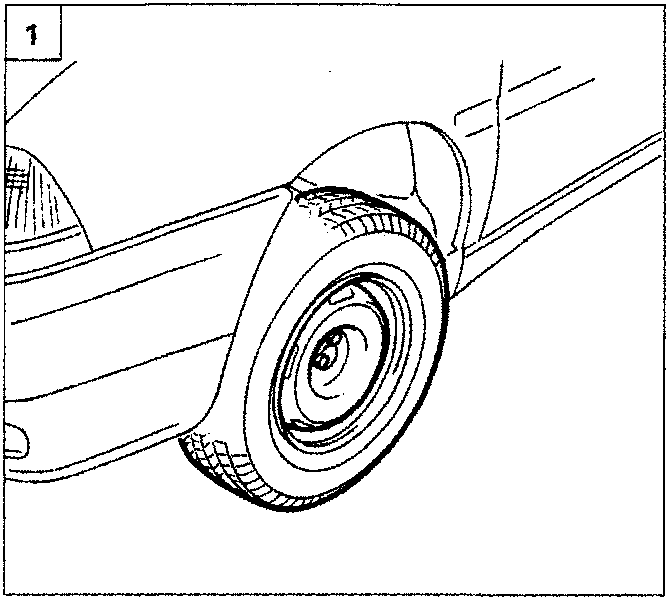

- Remove the front wheels.

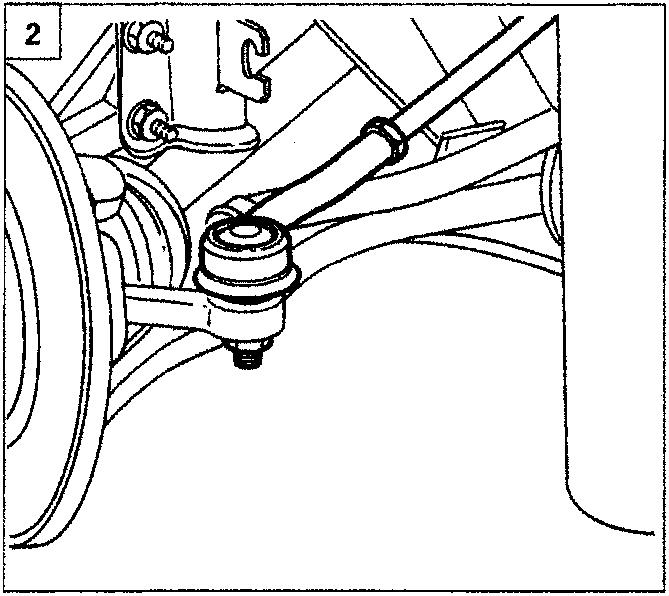

- Undo the nuts fixing the left and right side track rod ends.
5 daNm

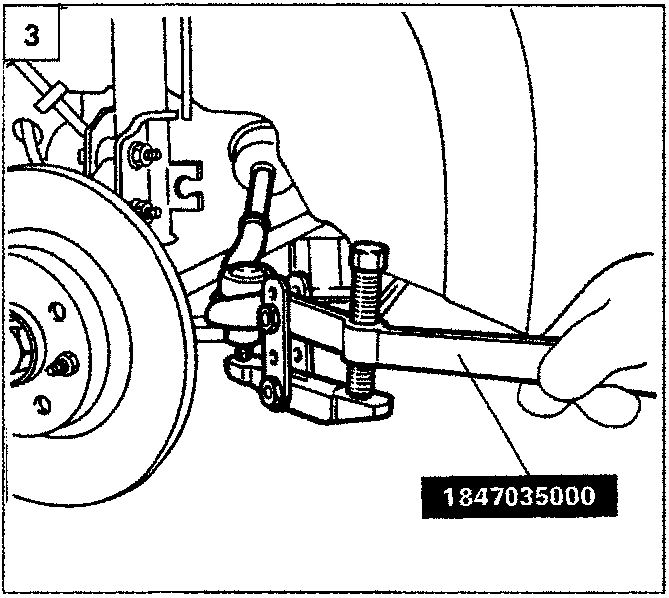

- Using tool 1847035000, release the track rod ends from the two steering knuckles.

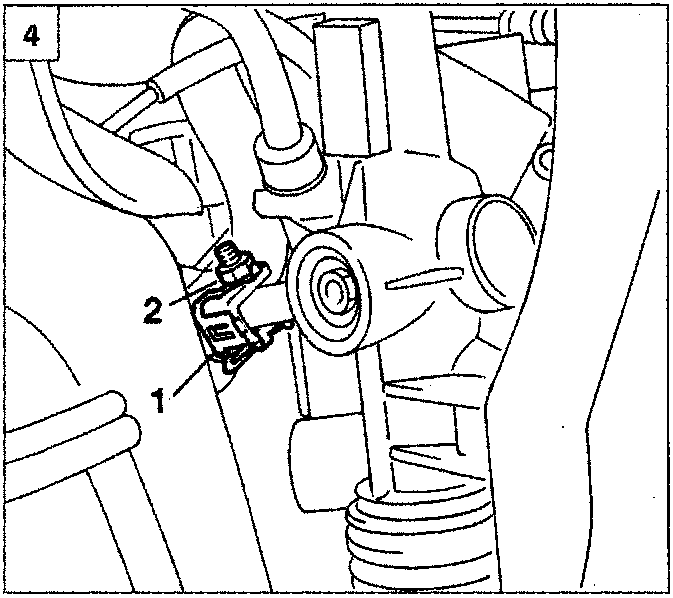

- Remove the clip (1) and undo the nut (2) securing the steering column to the steering box.
The nut securing the lower shaft to the steering box pinion is selflocking: it should be replaced each time it is undone or loosened.
