Fiat Scudo Factory Service Manual (1996-2006)04 · 41 Steering
04 · Steering & suspension

Removing - Refitting (page 2 of 2)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Mechanical steering box
41 SteeringRemoving - Refitting · page 2 of 2

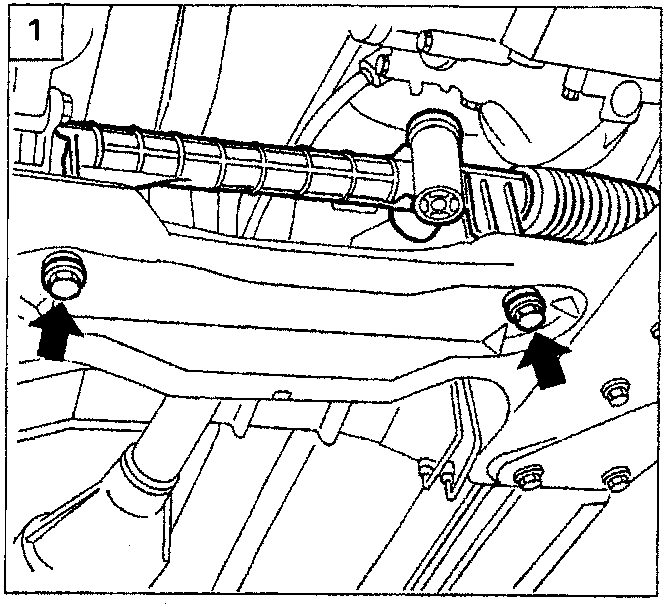

Diagram showing the underside of the vehicle with arrows pointing to two bolts fixing the steering box to the front crossmember.
1. Undo the two botls fixing the steering box to the front crossmember and remove the steering box.

13 daNm

2. Extract the steering box, removing it via the left side.

At the end of the process of removing-refitting the steering box, always adjust the front wheel toe in.

3. When refitting, reverse the order of the operations carried out for the removal.

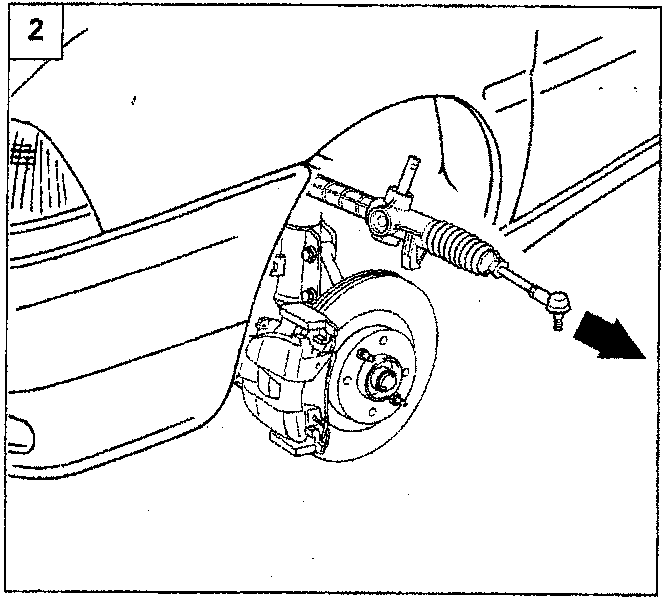

Diagram showing the steering box being extracted from the left side of the vehicle near the front wheel hub.

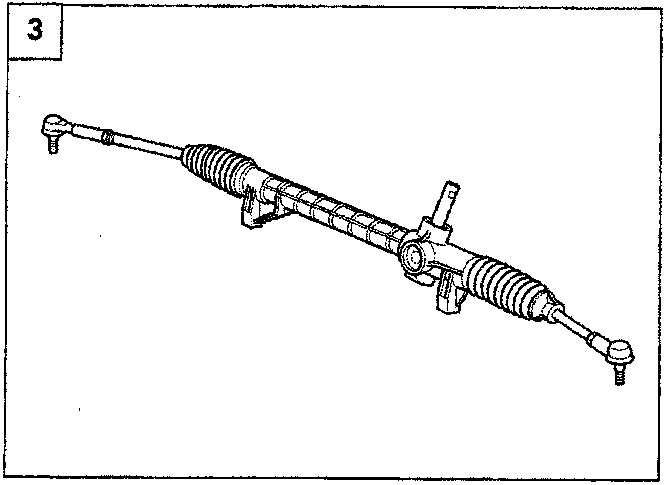

Isolated view of the removed mechanical steering box assembly.
