Version writhout A B S

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Control units (2000 range) › Version writhout A B S

55 Electrical equipmentVersion writhout A B S

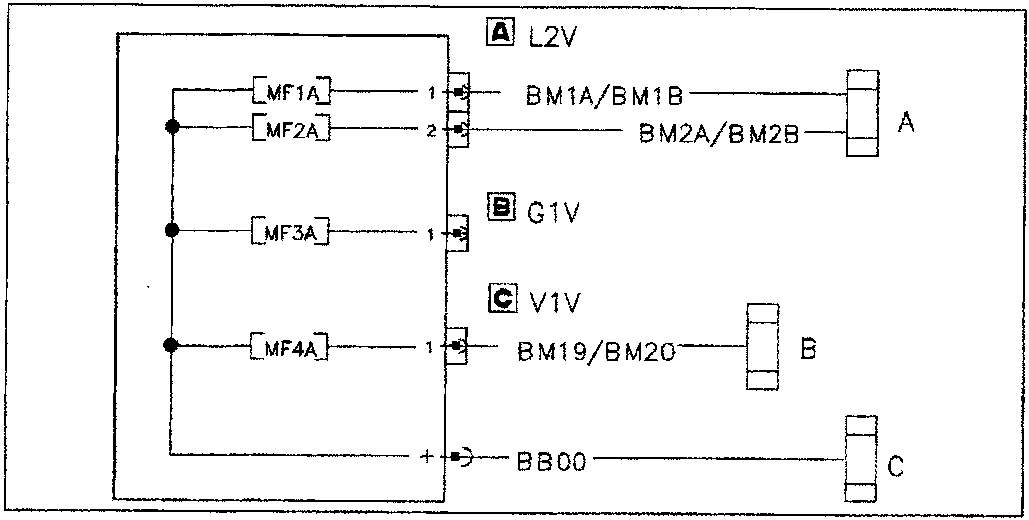

A 1997 JTD front cable loom

B A B S cable loom

C +30 battery

Version writhout A B S

The BMF2 junction unit unlike the version with A B S only protects the injection system for the Scudo 1997 JTD version

The control unit still located in the front on the left consist of 3 different connectors which contain 2 power fuses which are used and 2 spare ones

Fuse	Amperage	Supply	Protection	Connector	Pin
MF1A	20A	+30 battery	1997 JTD engine injec tion system	A (blue 2 way)	1
MF2A	30A	+30 battery	1997 JTD engine injec tion system	A (blue 2 way)	2
MF3A		+30 battery	Spare fuse	C (yellow 1 way)	1
MF4A		+30 battery	Spare fuse	B (green 1 way)	1

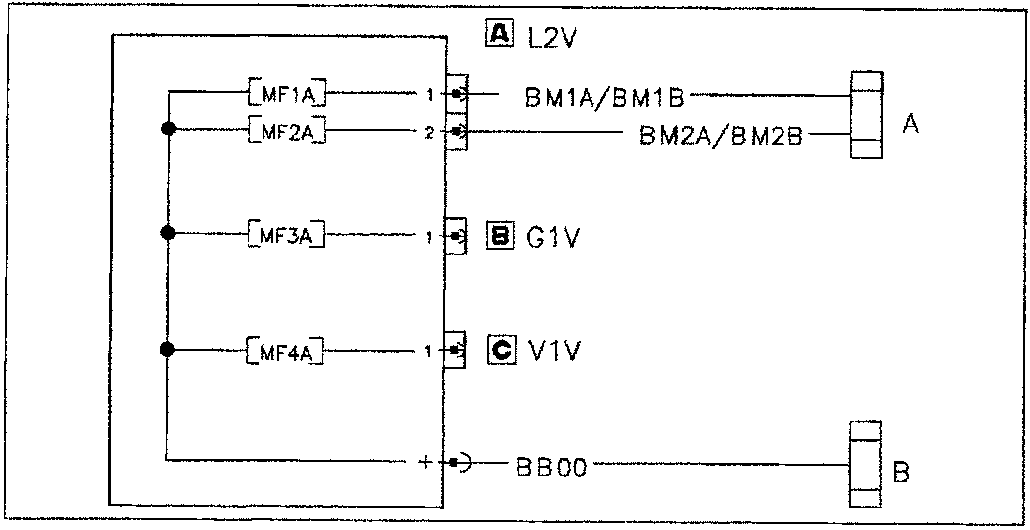

BMF2 wiring diagram

A 1997 JTD front cable loom

B +30 battery
