- Diagrammatic views (98 range) › Diagrammatic views
‹ Prev Diagrammatic view of location of cable looms and componentsNext › Diagrammatic view of location of cable looms and components
55 Electrical equipmentDiagrammatic views
Diagrammatic views

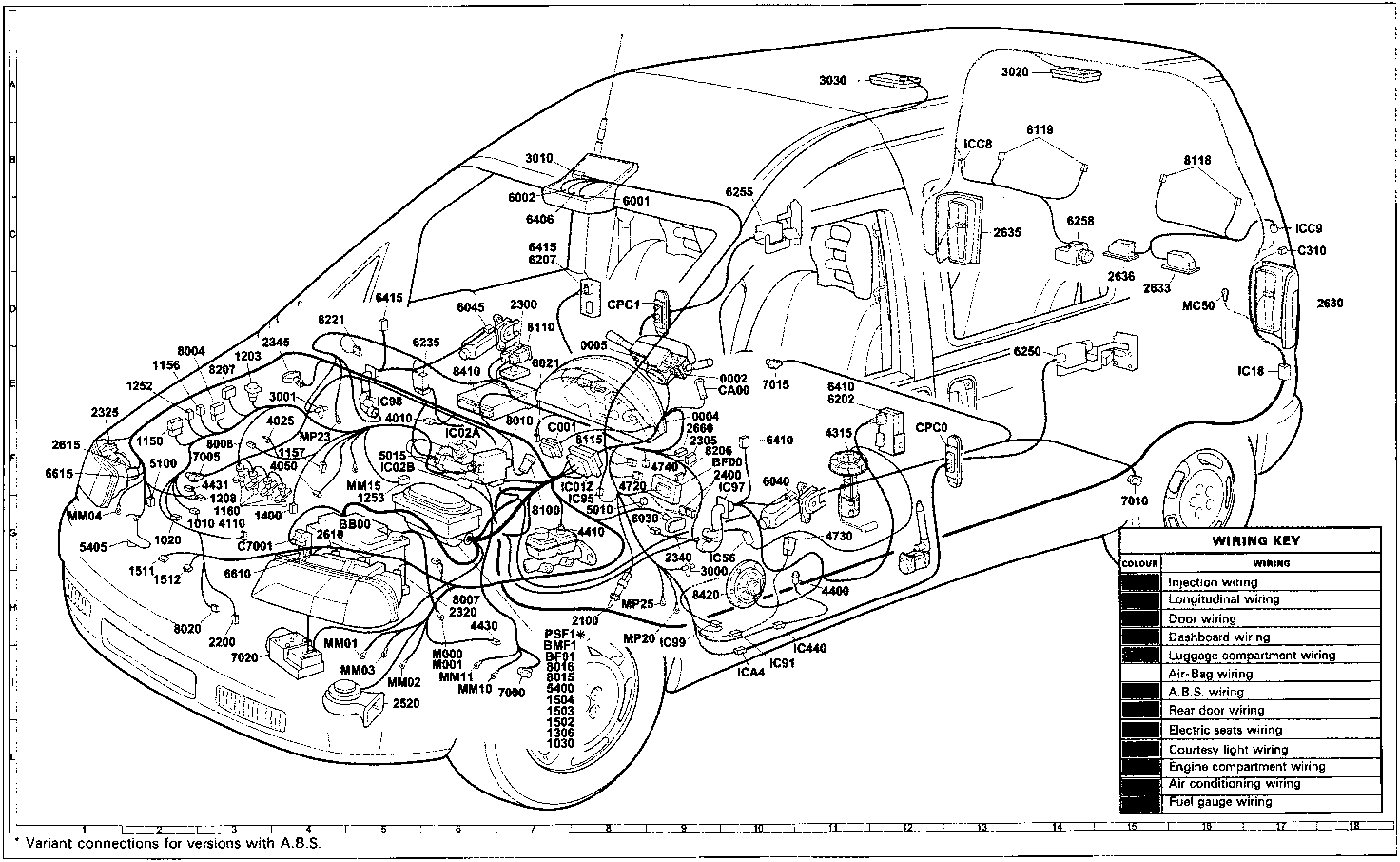

Diagrammatic view of location of cable looms and components (See key at end of wiring diagrams with the co-ordinates referring to the components)
* Variant connections for versions with A.B.S.
| WIRING KEY | |
|---|---|
| COLOUR | WIRING |
| Injection wiring | |
| Longitudinal wiring | |
| Door wiring | |
| Dashboard wiring | |
| Luggage compartment wiring | |
| Air-Bag wiring | |
| A.B.S. wiring | |
| Rear door wiring | |
| Electric seats wiring | |
| Courtesy light wiring | |
| Engine compartment wiring | |
| Air conditioning wiring | |
| Fuel gauge wiring | |
