Front view (page 2 of 2)

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Instrument panel (2002 update)

55 Electrical equipmentFront view · page 2 of 2

CONNECTOR A
Terminal N°	Cable code	Circuit invovled	Terminal N°	Cable code	Circuit invovled
1	2334	Right direction indicator	14	480	Injection failure
2	2344	Left direction indicator	15	444	Brake pad wear (earth)
3	-	Not used	16	-	Not used
4	478	Air Bag/ pretensioners	17S	211	Brake pad wear (positive)
5	1622	Vehicle speed	18	475	Seat belts not fastened
6	-	Not used	19	403	Water in fuel filter sensor
7	-	Not used	20	-	Not used
8	449	Anti-lock brakes failure (A.B.S.)	21	-	Not used
9	401	Engine coolant temperature	22	-	Not used
10	428	Rev counter signal	23	-	Not used
11	-	Not used	24	440	Handbrake/insufficient brake fluid level
12	B25B	Positive from battery (+30)	25	-	Not used
13	C02C	Switch positive (+15)	26	M25	earth

CONNECTOR B
Terminal N°	Cable code	Circuit invovled	Terminal N°	Cable code	Circuit invovled
1	402	Insufficient engine coolant level	10	410	Insufficient engine oil pressure (warning light)
2	2023	Rear fog lamps	11	431	Fuel level gauge
3	PA5	Fog lights	12	V19R	Ideogram lights positive
4	PR5	Main beam headlamps	13	-	Not used
5	PC5	Dipped headlamps	14	414	Engine oil pressure (gauge)
6	-	Not used	15	415	Engine oil pressure (gauge)
7	435	Heater plugs	16	M432	Fuel level
8	A28	Insufficient battery recharging (positive)	17S	400	Engine coolant temperature (warning light)
9	401	Switch positive (+15)	18	304/304A	Fiat-CODE/left front door lock

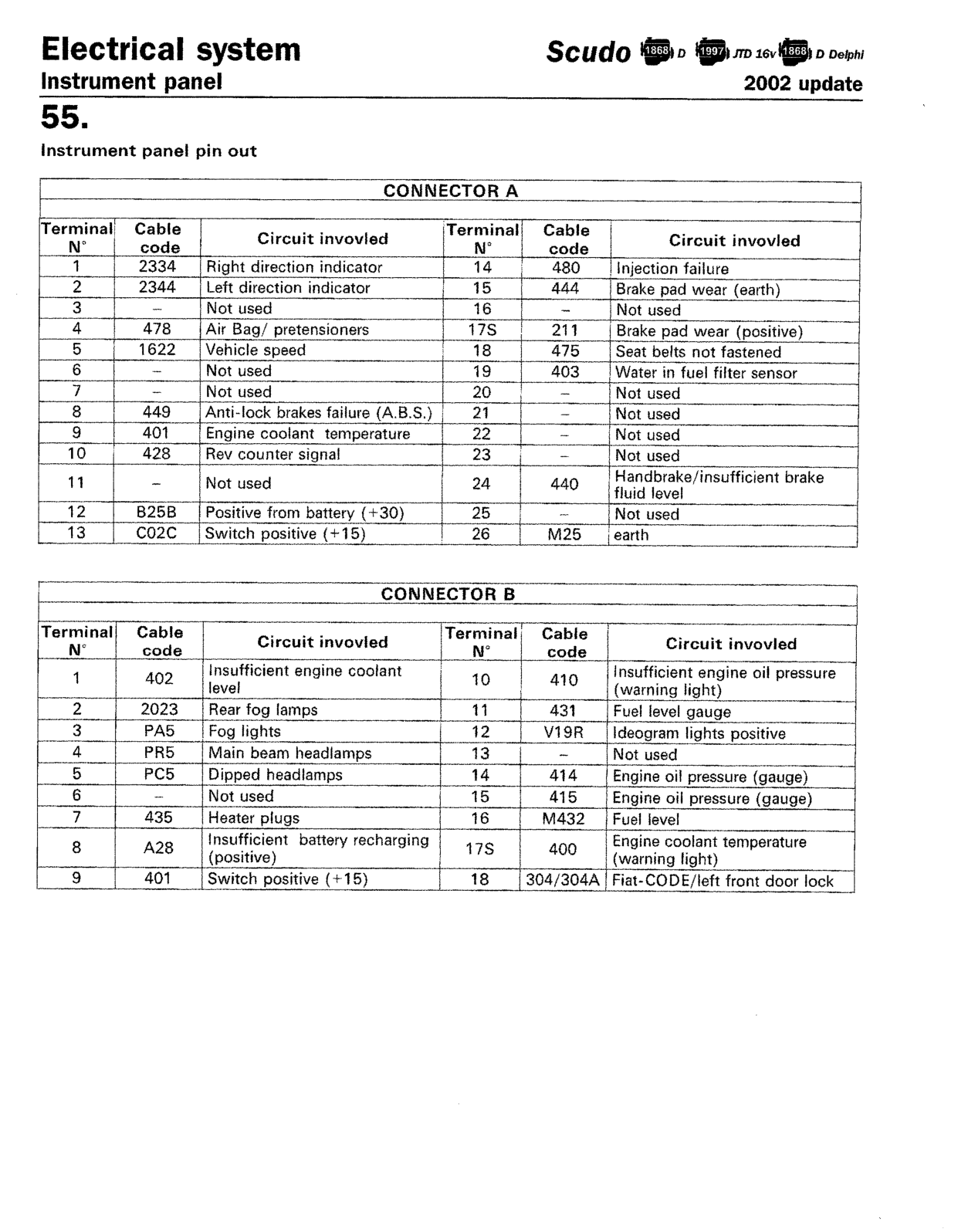

Original page
