Fiat Scudo Factory Service Manual (1996-2006)07 · 70 Bodywork
07 · Body & interior

Removing - refitting seat belts

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Interior fittings › Removing - refitting seat belts
70 BodyworkRemoving - refitting seat belts

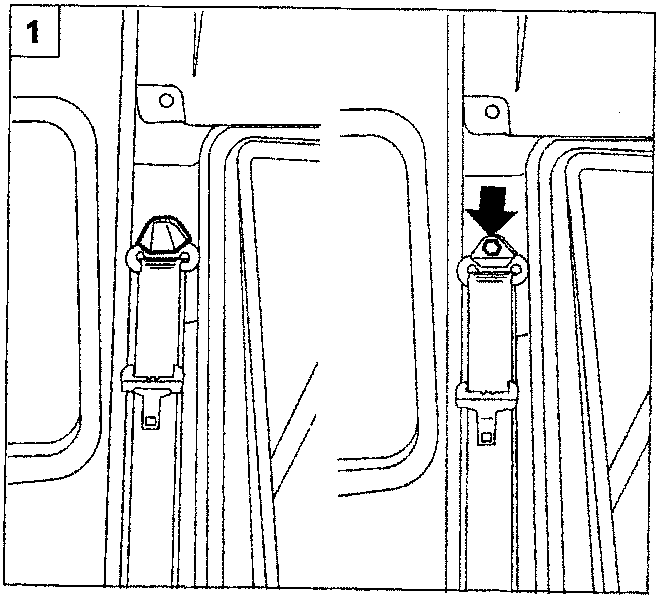

Diagram showing the upper seat belt anchor point on the vehicle pillar with a downward arrow indicating removal direction.

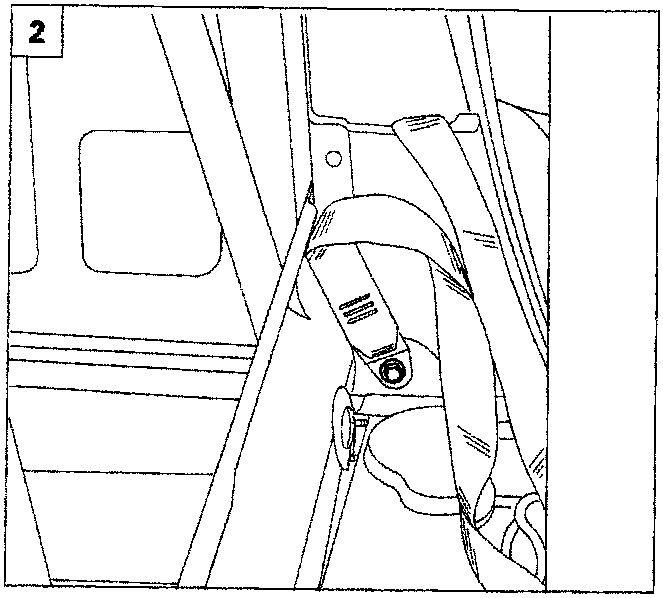

Diagram showing the lower seat belt anchor point and fixing bolt near the floor area.

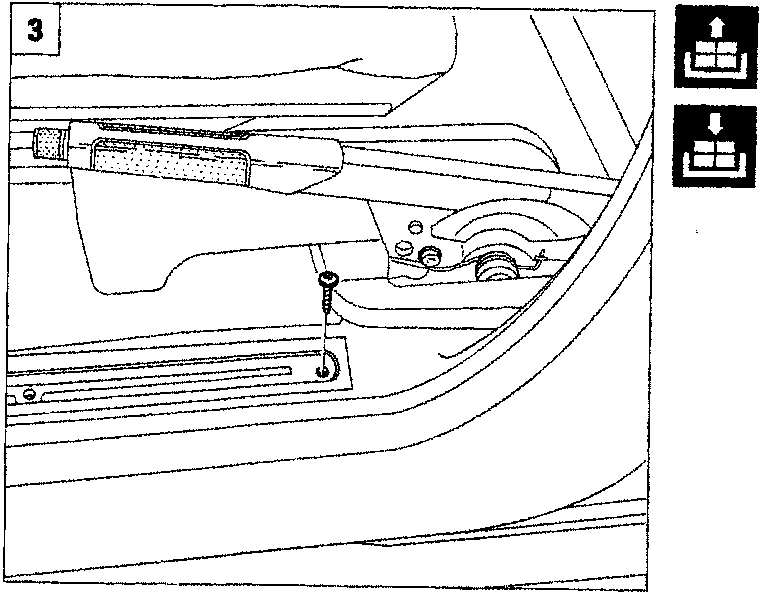

Diagram showing the front running board, lower cover, and centre pillar area where seat belt components are fixed to the floor.

REMOVING - REFITTING SEAT BELTS

  1. Lift up the fixing cover and undo the bolt underneath;
  2. undo the lower seat belt fixing bolt;
  3. undo the bolt fixing the front running boardto the floor and to the lower cover for the centre pillar;
  4. undo the bolts fixing the cover to the centre pillar, then remove the belt from the housing.

NOTE To remove-refit the centre pillar cover simply repeat the last three operations carried out for removing the seat belts.

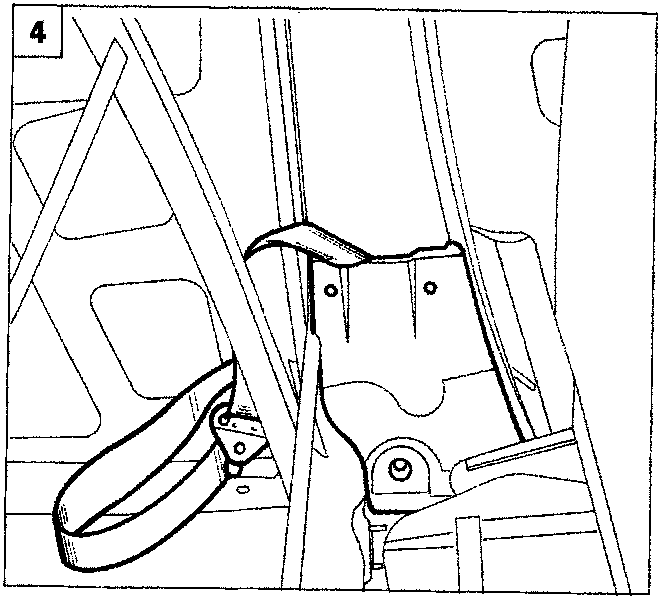

Diagram showing the seat belt housing unit being removed from the centre pillar area.
