Removing - refitting roof lining

REMOVING - REFITTING ROOF LINING

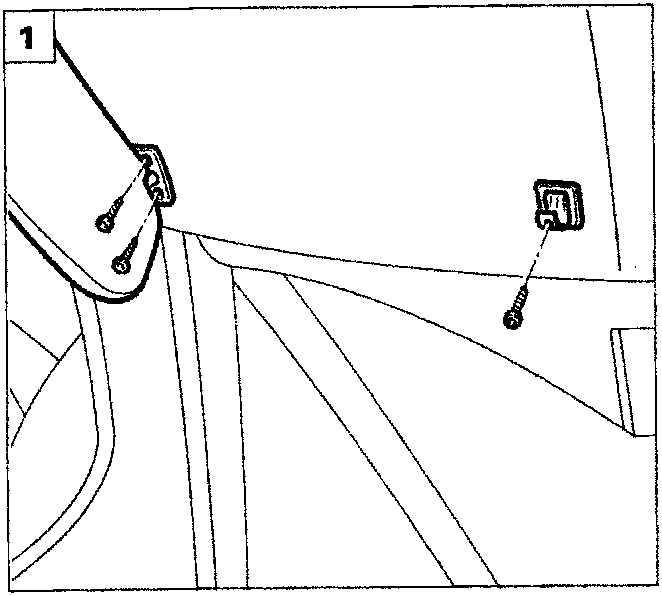

1. Undo the bolts shown and remove the sun visor with the relevant strikers.

NOTE This operation should be repated for the passenger side sun visor

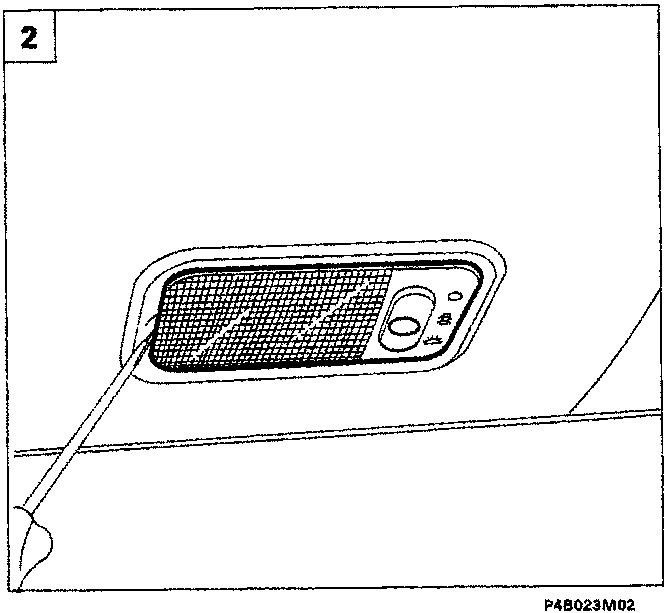

2. Remove the courtesy light which is a press fit;

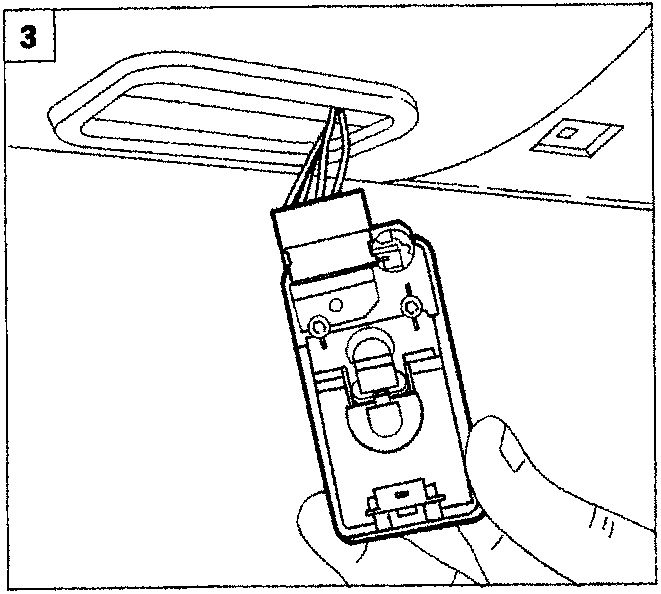

3. disconnect the electrical connector then remove the courtesy light from the vehicle;

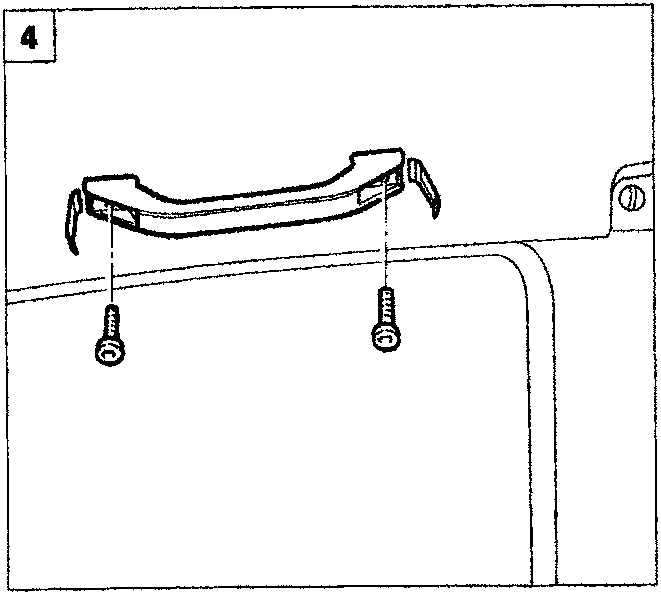

4. move the two fixing covers aside and re-move the passenger grab handle acting of the fixings underneath;

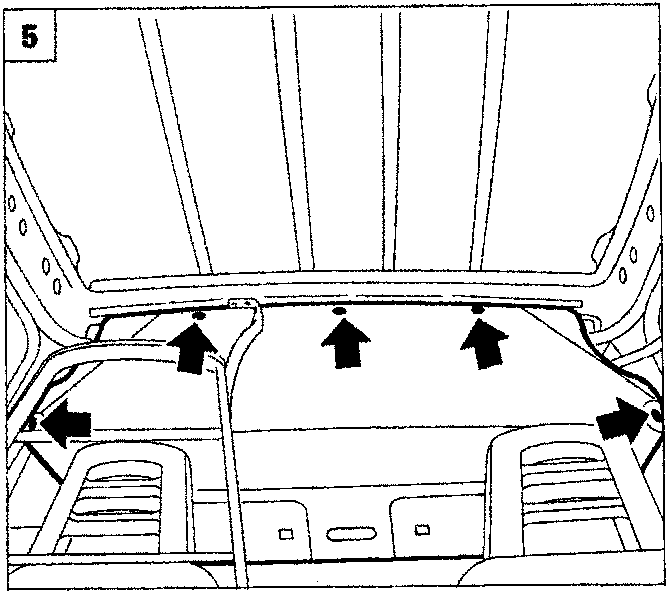

5. Remove the door housing trim, remove the fixing buttons, then extract the roof lining from the vehicle.
