Dismantling - reassembling backrest (page 2 of 2)

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Seats

70 BodyworkDismantling - reassembling backrest · page 2 of 2

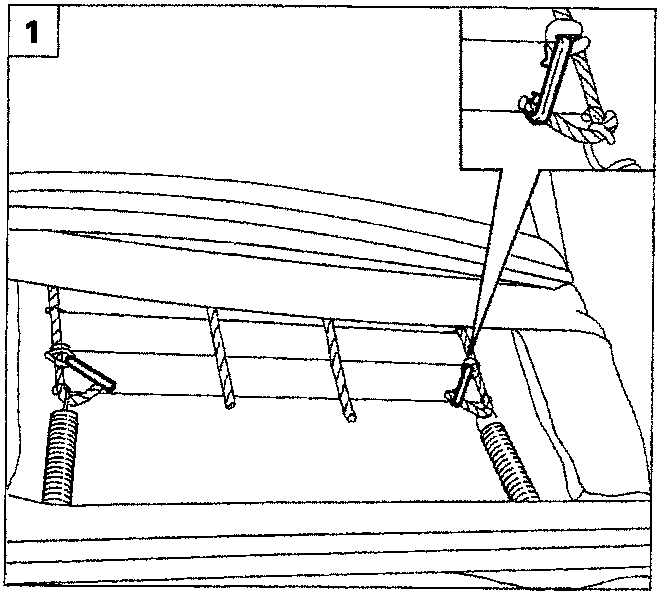

1. remove the rear hooks fixing and tensioning the front part of the cover;

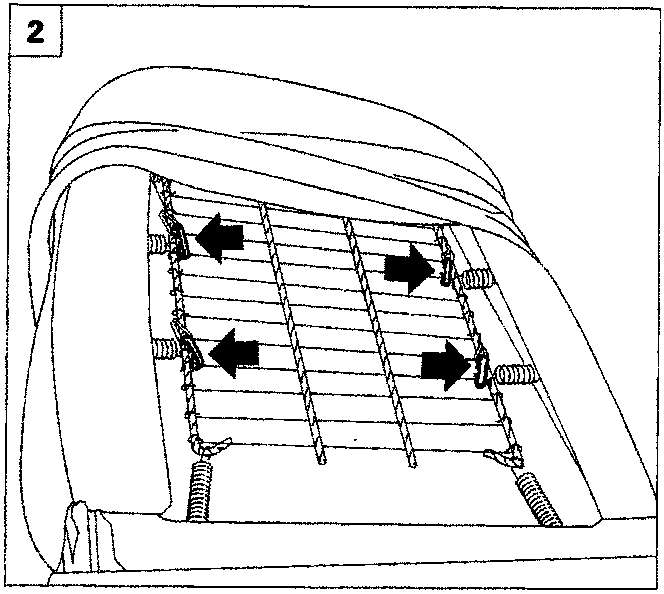

2. remove the cover towards the upper part of the backrest and remove the centre and upper hooks fixing and tensionin the front part of the cover;

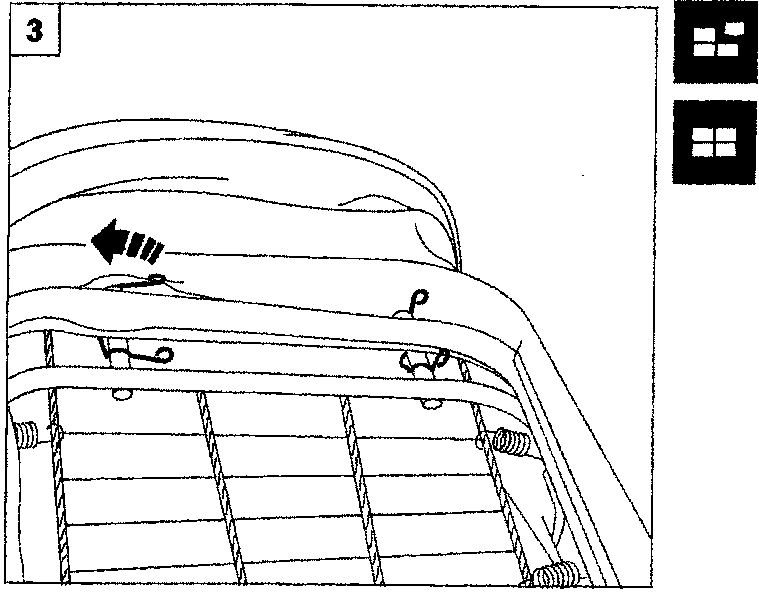

3. release the springs illustrated rotating them through around 90° in the direction shown by the arrow, remove the head restraint, then remove the upholstery cover.

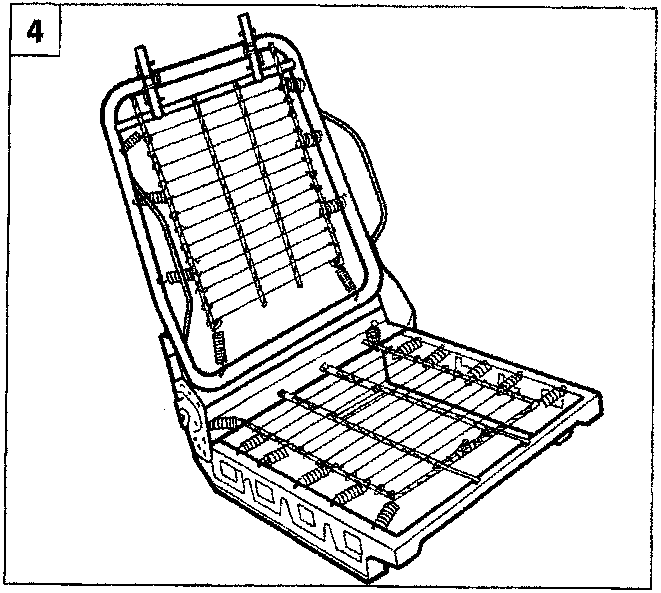

4. View of the seat frame.
