Dismantling - reassembling backrest

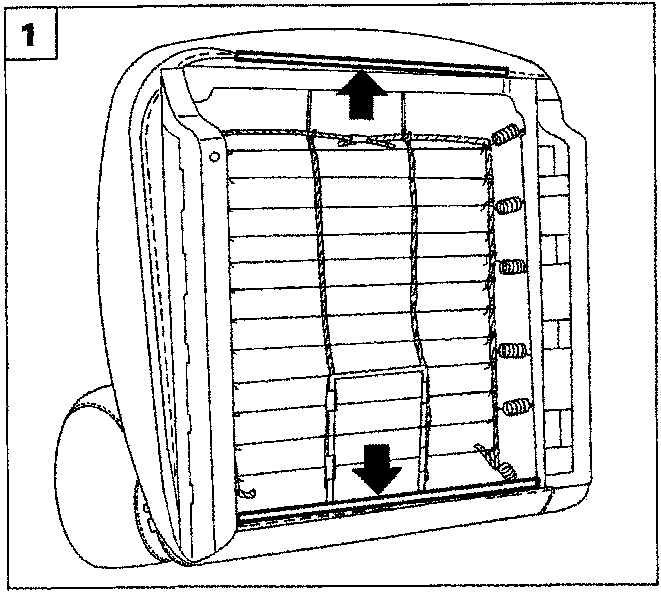

1. release the plastic clips from the points illustrated, then remove the cover from the frame;

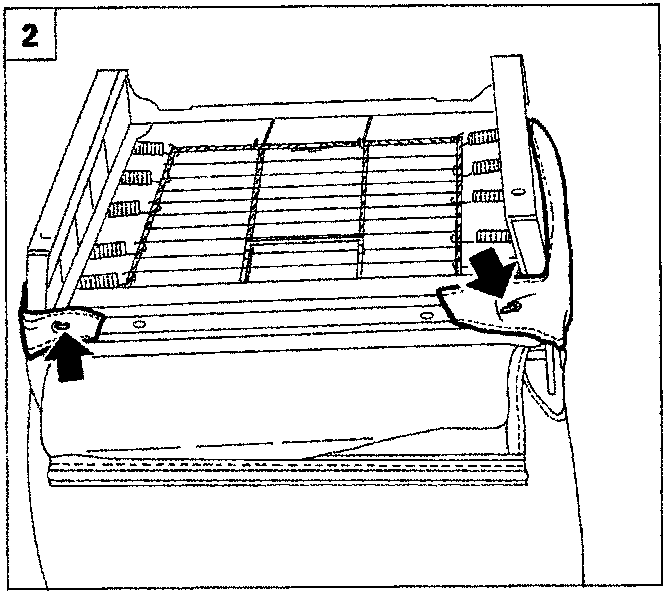

2. release the cushion complete with cover from the two anchorage points, then remove it from the frame;

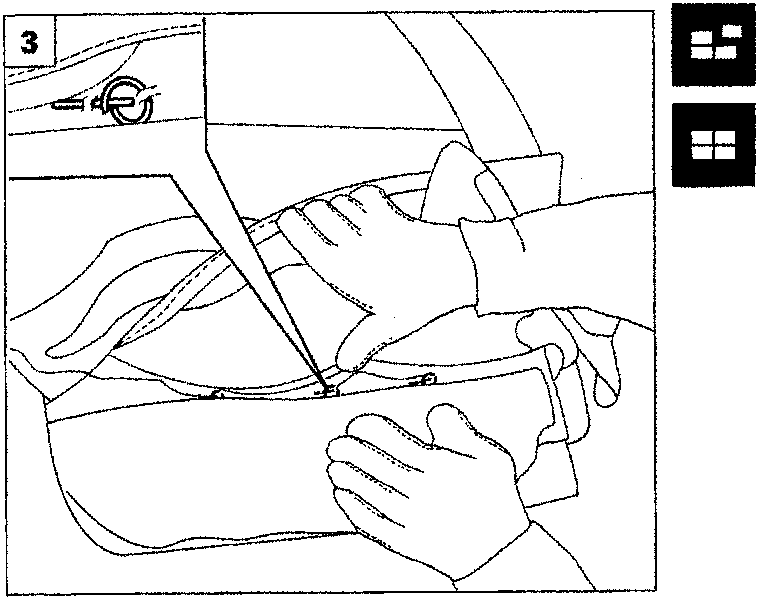

3. separate the cushion cover from the internal upholstery acting on the hooks fixing the cover to the cushion.

NOTE When refitting replace the hooks fixing the cover to the upholstery.

Dismantling - reassembling backrest

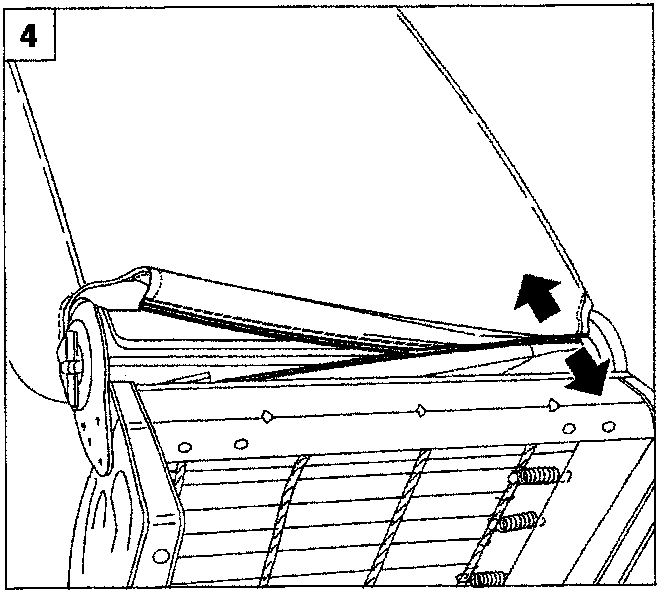

4. Remove the backrest cover as illustrated in the diagram;
