Fiat Scudo Factory Service Manual (1996-2006)07 · 70 Bodywork
07 · Body & interior

Removing - refitting seat support frame

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Seats › Removing - refitting seat support frame
70 BodyworkRemoving - refitting seat support frame

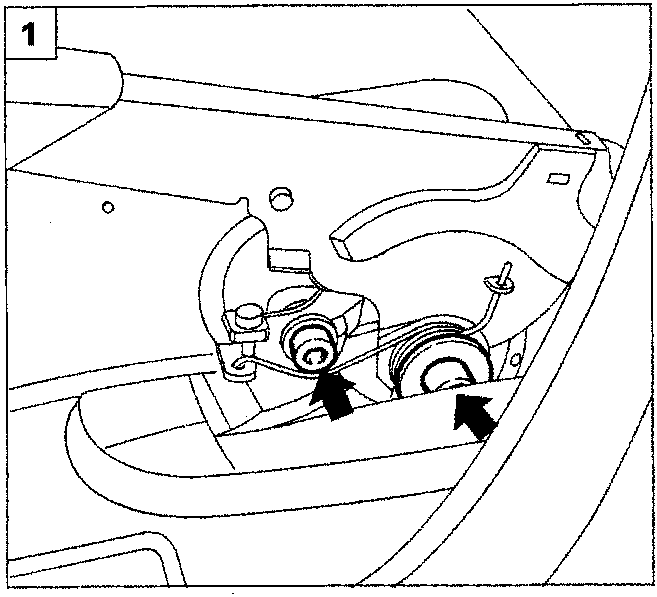

Diagram showing the seat adjustment mechanism with arrows pointing to two bolts.

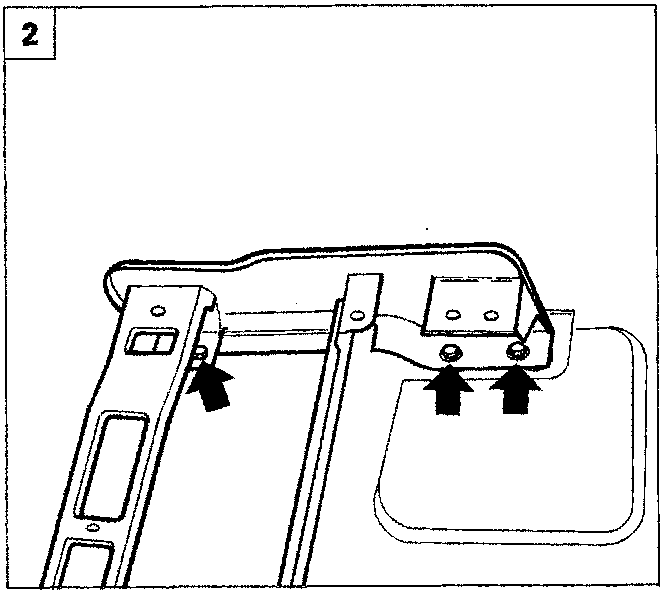

Diagram showing the rear of the seat frame with arrows pointing to mounting bolts.

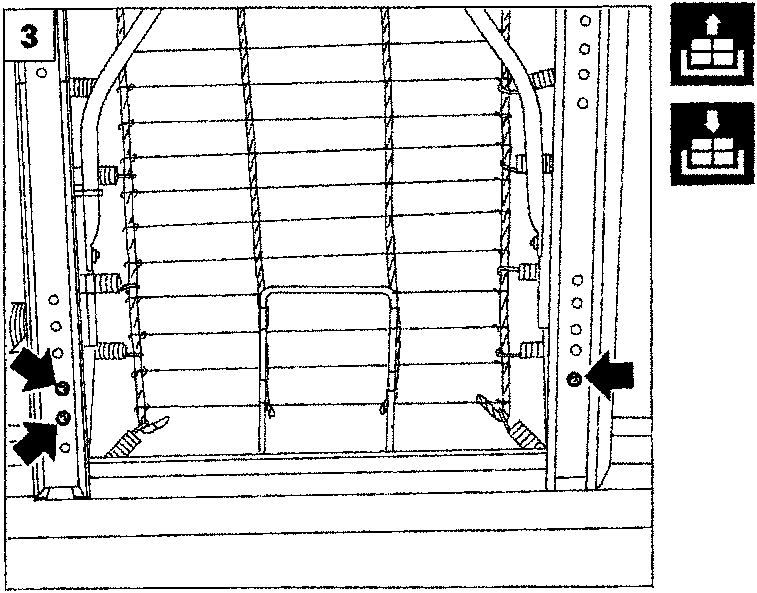

Diagram showing the underside of the seat frame with arrows pointing to bolts on both sides.

REMOVING - REFITTING SEAT SUPPORT FRAME

Remove the seat as illustrated previously.

  1. Disconnect the handbrake from the frame acting on the two bolts shown;
  2. remove the frame from the floor acting on the six bolts fixing it to the floor.

DISMANTLING - REASSEMBLING SEAT

Dismantling - reassembling sliding guides

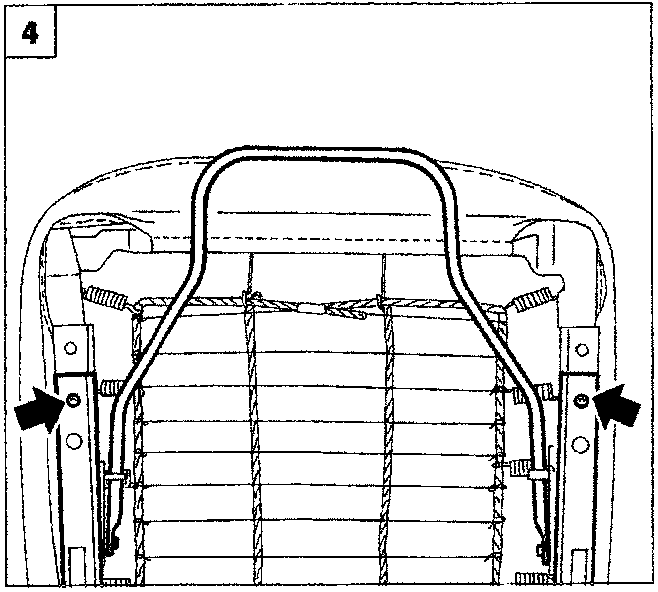

Diagram showing the back view of the seat with arrows pointing to the sliding guide bolts on both sides.
  1. Undo the rear bolts fixing the guides to the frame;
  2. move the sliding guides backwards to the end of travel position acting on the special lever and undo the bolts fixing the guides to the frame, then remove them.
