70 BodyworkRemoving - refitting rear bumper

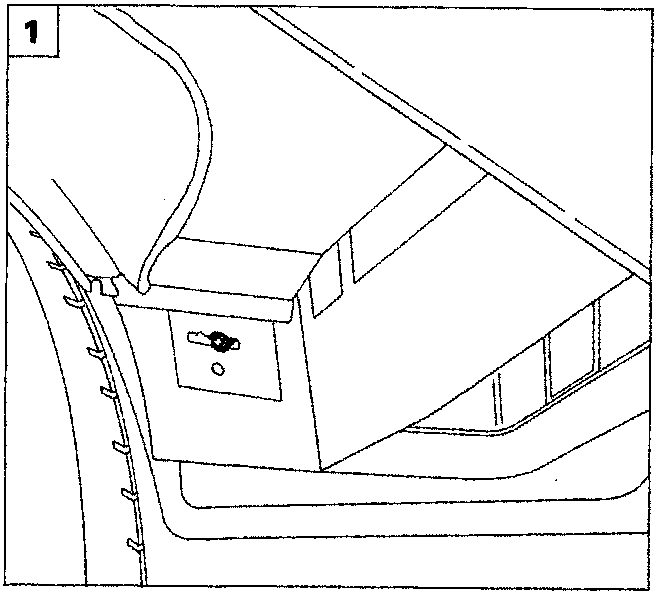

Diagram showing the rear corner of the vehicle body and bumper area

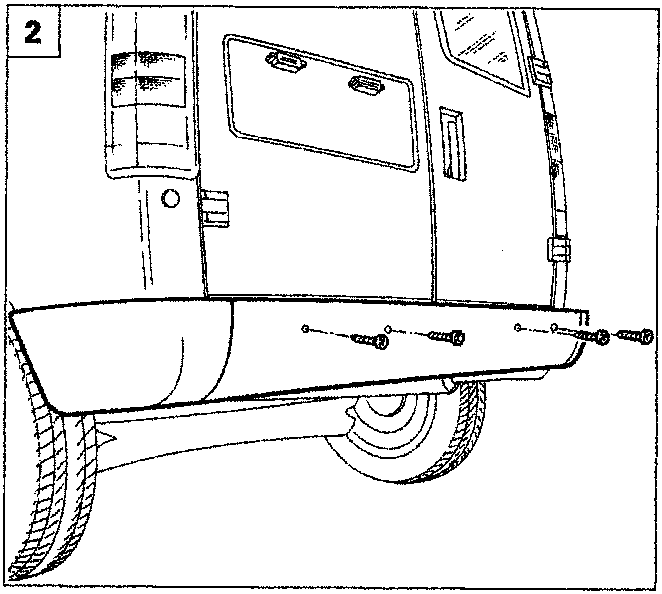

Diagram showing the rear view of the vehicle with the bumper mounting points indicated by arrows

REMOVING - REFITTING REAR BUMPER

  1. Position the vehicle on a lift, raise the lift and undo the side fixing securing the rear bumper to the bodyshell;
  2. undo the bolts fixing the bumper to the mounting brackets underneath, then remove it from the vehicle.

REMOVING - REFITTING SEAT

  1. Undo the front bolts fixing the sliding guides;
  2. undo the rear fixing bolts, then remove the seat complete with sliding guides.

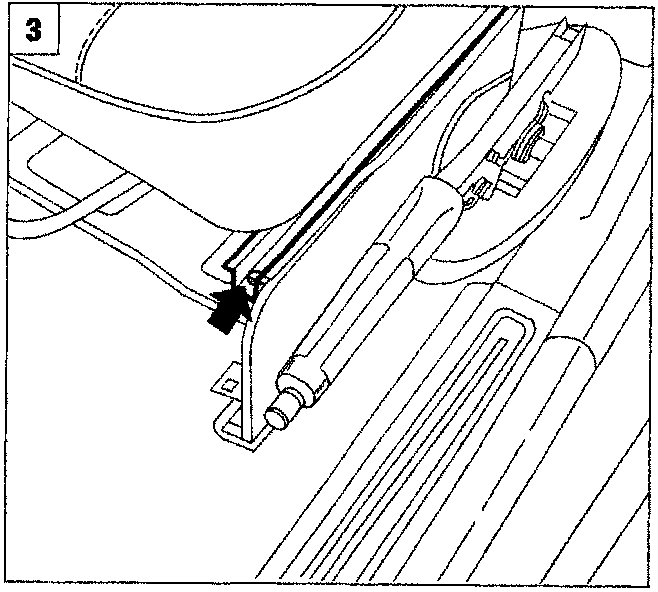

Diagram showing the interior floor area with the seat sliding guide rail and mounting bracket

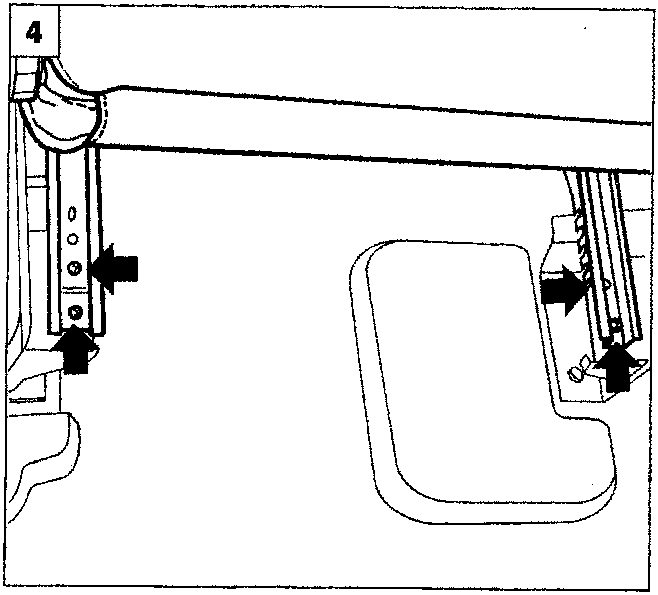

Diagram showing the seat base and sliding guide assembly with arrows indicating bolt locations
