70 BodyworkAdjustments

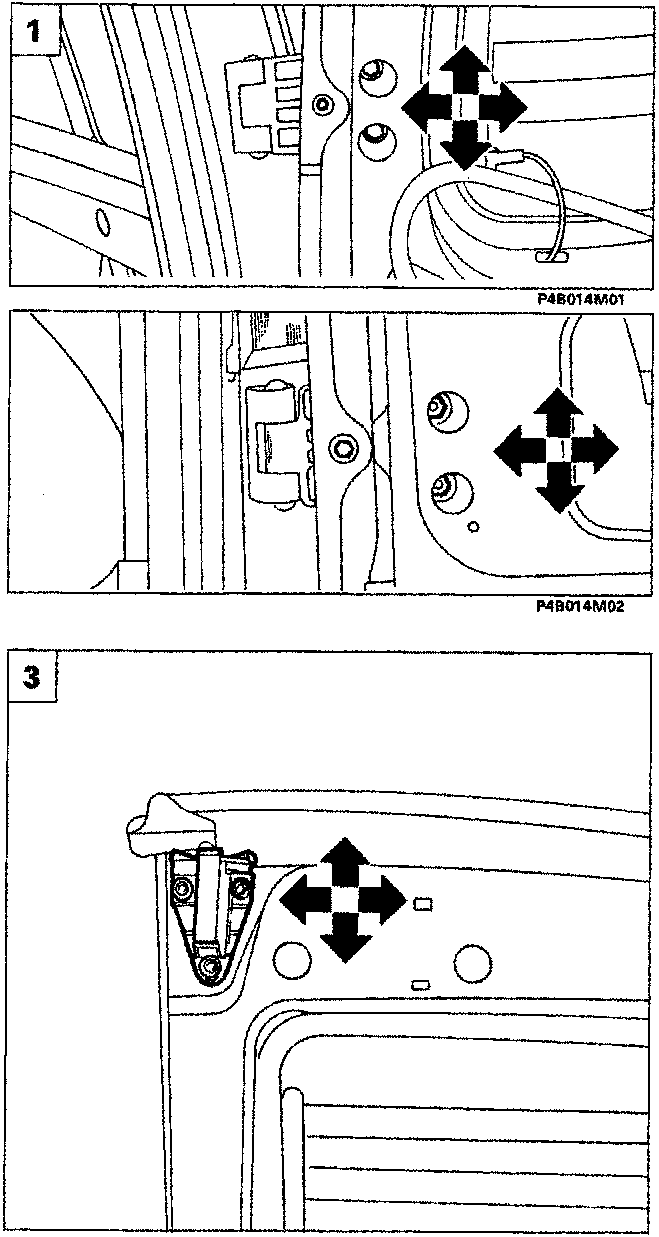

Diagram showing adjustment points on the rear door hinge and latch mechanism with directional arrows

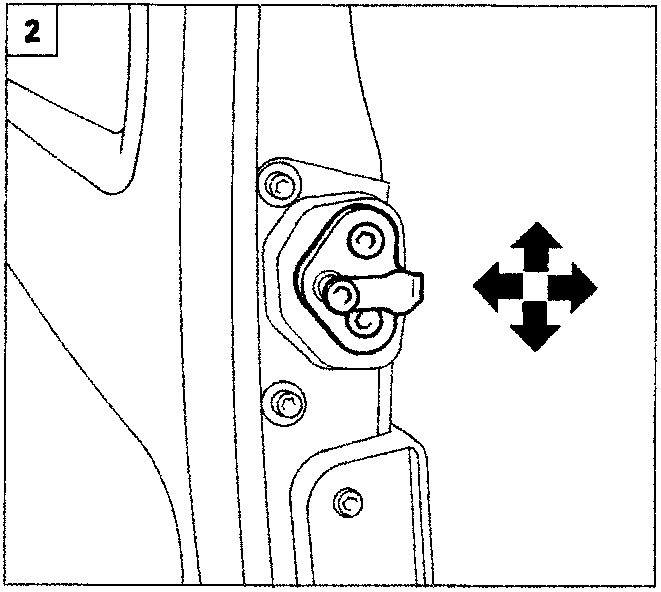

Diagram showing the lock striker on the door frame with a four-directional arrow indicating adjustability

ADJUSTMENTS

Adjusting position of door

  1. Loosen the bolts fixing the door, then adjust the position of the door;

NOTE The arrows indicate the possible movements for the adjustment

Icon representing a torque wrench tightening a bolt
when the adjustment is completed, tighten the bolts previously illustrated to the recommended torque using a torque wrench.
  1. Adjusting the lock striker
  2. Adjusting the left door attachment device

! The device is also fitted in the lower part of the door

  1. Adjusting the striker for the left door attachment device.

! The device is also fitted on the floor of the vehicle

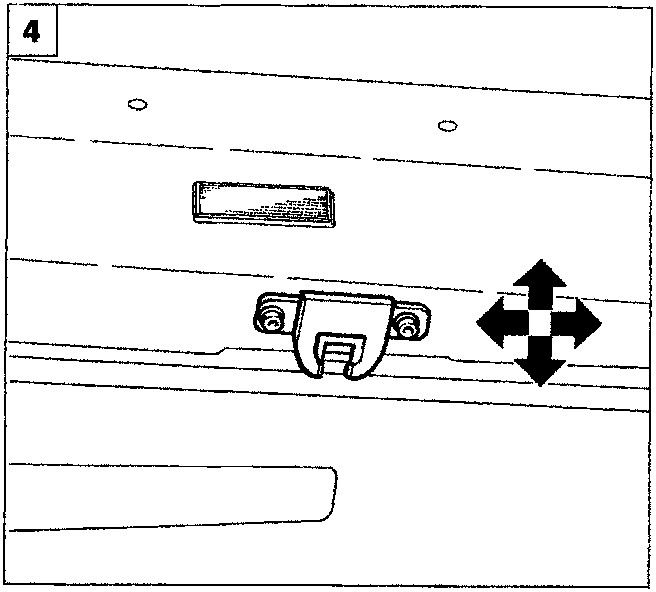

Diagram showing the left door attachment device and striker on the vehicle floor with a directional arrow
