Heated rear windscreen

HEATED REAR WINDSCREEN

Removing

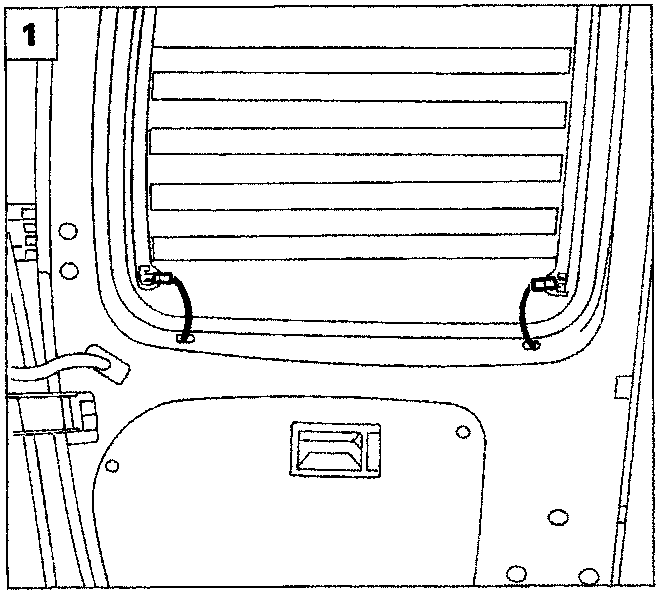

1. Disconnect the electrical connections shown;

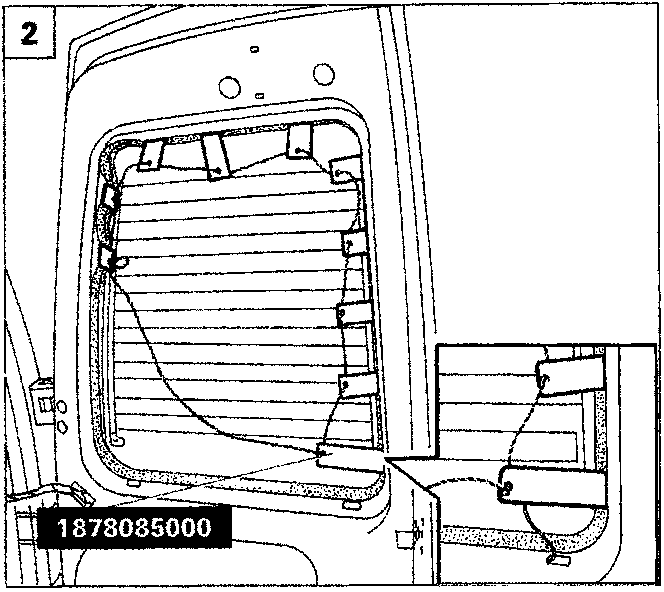

2. position tool 1878085000 between the rearscreen trim and the rearscreen housing, using the tool as a lever to remove the trim and then extract the rearscreen from the door.

Refitting

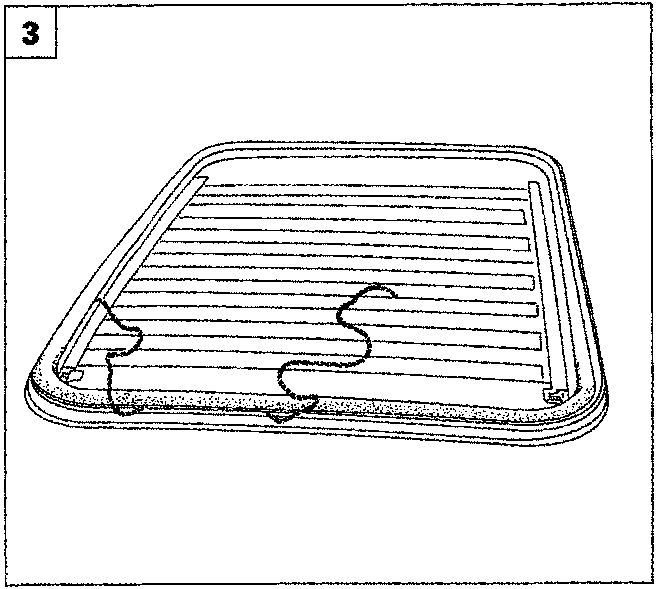

3. Position twine along the entire internal perimeter of the trim;

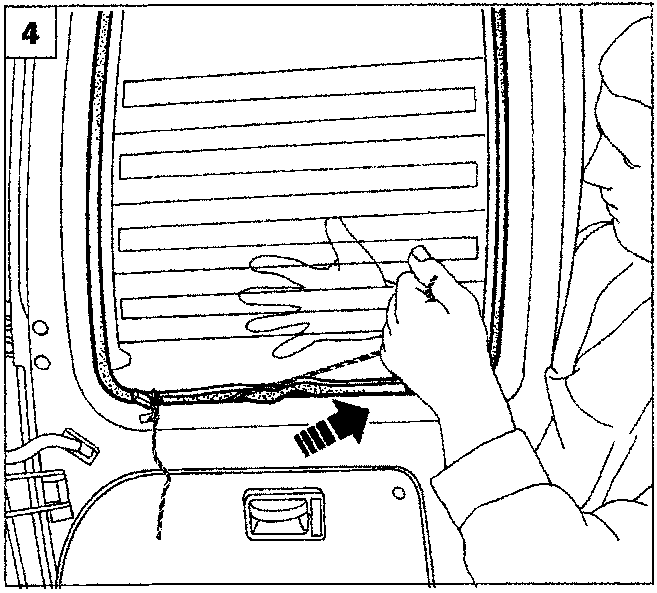

4. pull the two ends of the twine, in two separate stages, so that the trim fits along the perimeter of the rearscreen housing, remove the twine and make sure that the rearscreen fits correctly.
