Removing - refitting rear door wiring

REMOVING - REFITTING REAR DOOR WIRING

NOTE The operations are carried out on the wiring for the left door because the right door is not fitted with the electrical connections for the number plate lights.

• Remove the door panel as described previously.

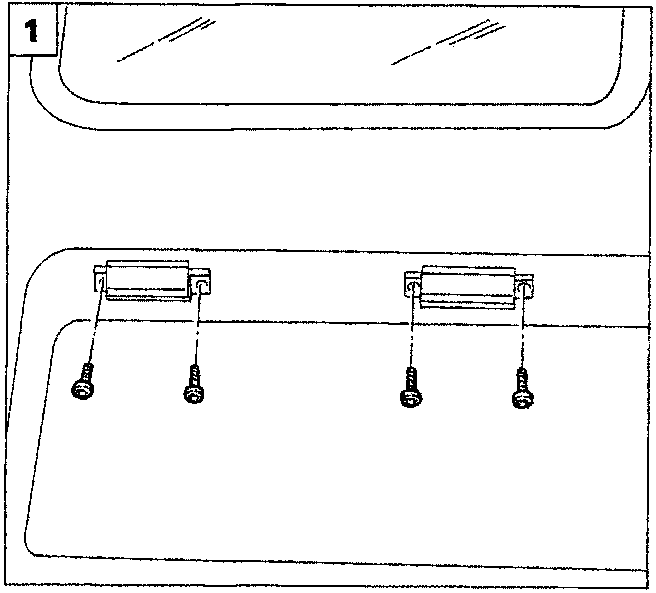

1. Undo the bolts fixing the number plate lights to the door;

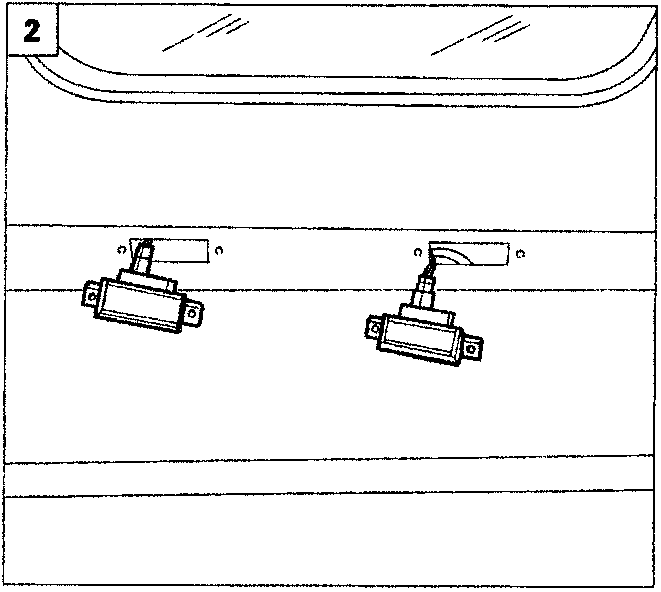

2. disconnect the electrical connections and remove the number plate lights;

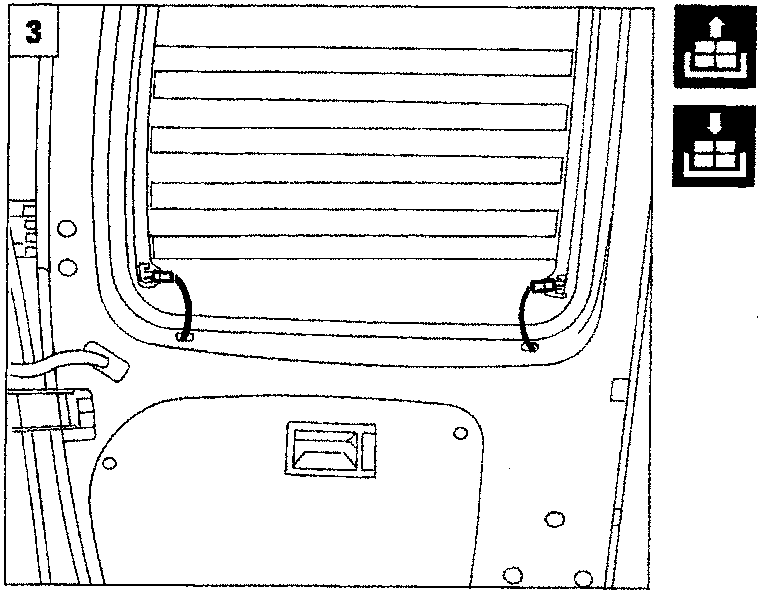

3. disconnect the electrical connections from the heated rear windscreen;

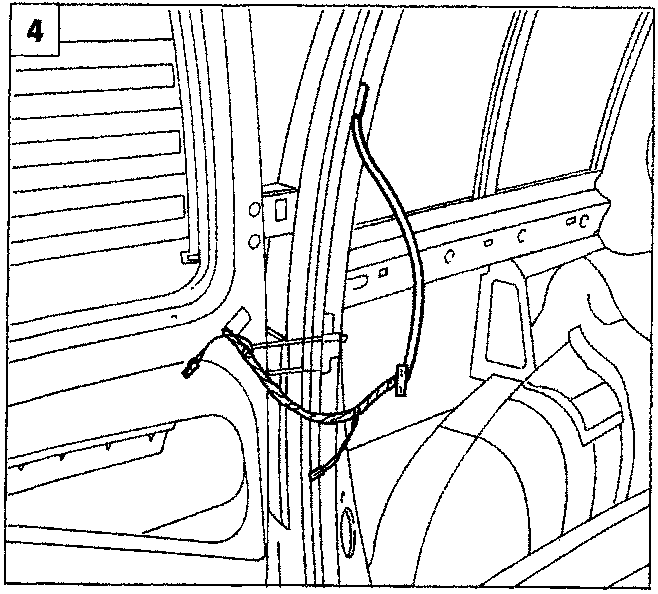

4. release the rubber cable carrier from the mounting, then remove the wiring from the door.

NOTE If the rear door wiring has to be replaced, it is also necessary to disconnect the electrical connection in the rear pillar, then separate the door wiring from the vehicle wiring.
