Removing - refitting door panel

REMOVING - REFITTING DOOR PANEL

NOTE Operations are carried out on the right door panel because the left door does not have an internal door opening control lever.

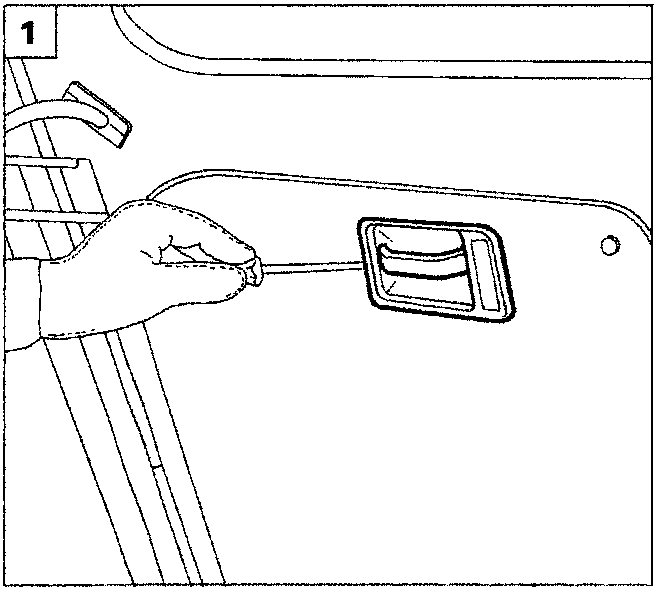

1. Remove the escutchion which is a press fit from the internal door opening control lever;

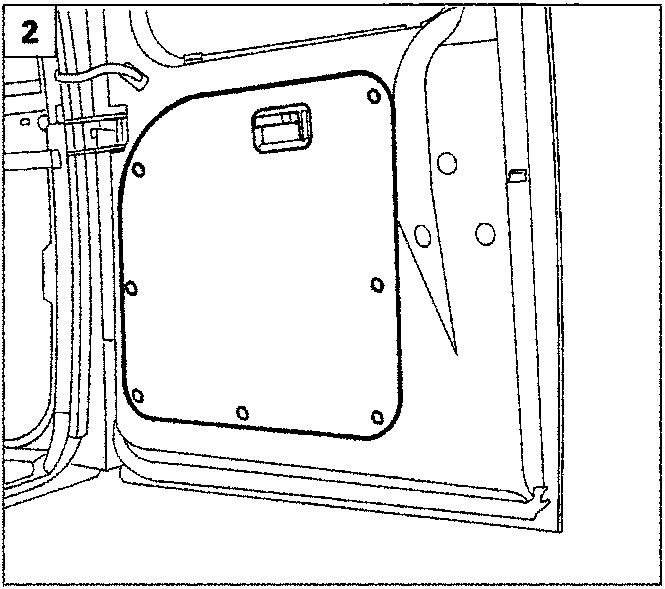

2. using a suitable tool, press towards the inside of the buttons, remove the buttons, then remove the panel from the door.

NOTE The buttons can be reused, if they are excessively worn, replace them.

REMOVING - REFITTING INTERNAL DOOR OPENING CONTROL LEVER

Remove the door panel as described previously.

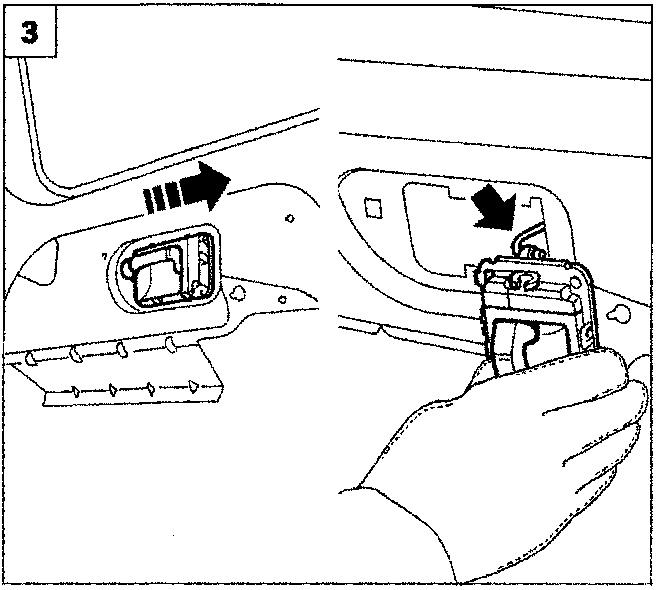

3. Push the lever in the direction of the arrow illustrated in the diagram, rotate it in such a way as to be able to disconnect the rod illustrated, then remove it from the door.

REMOVING - REFITTING OUTER DOOR OPENING HANDLE

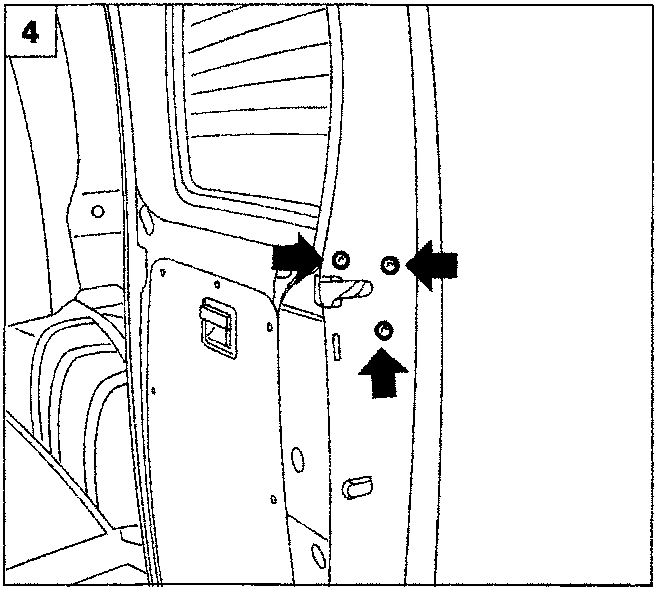

4. Undo the bolts fixing the lock to the door;
