Removing - refitting rear doors

REMOVING - REFITTING REAR DOORS

Remove the door panel as shown previously.

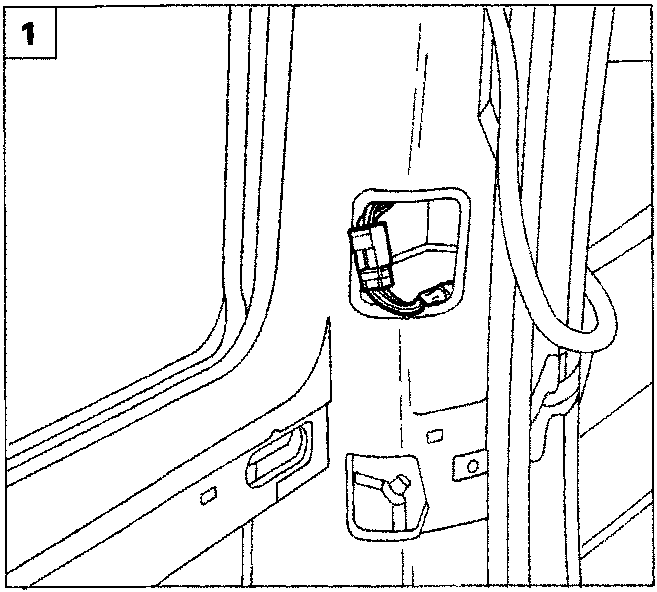

1. Disconnect the electrical connection in the rear pillar for the door wiring, remove the wiring and move it aside;

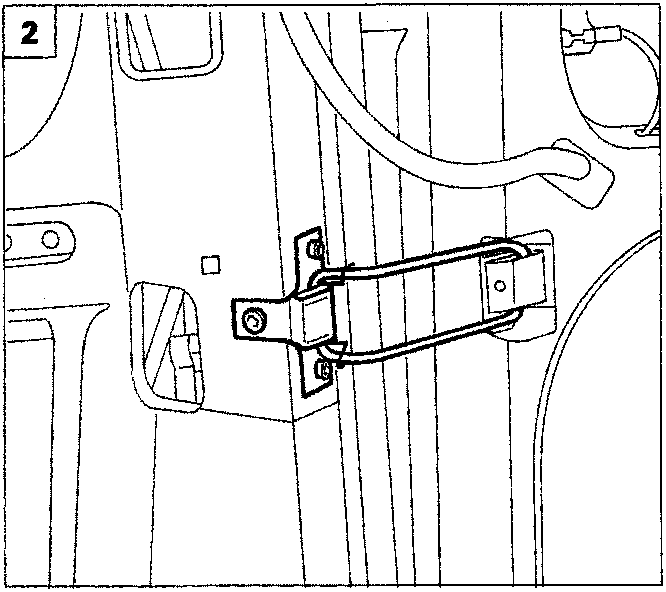

2. disconnect the door check strap from the attachment on the actual door;

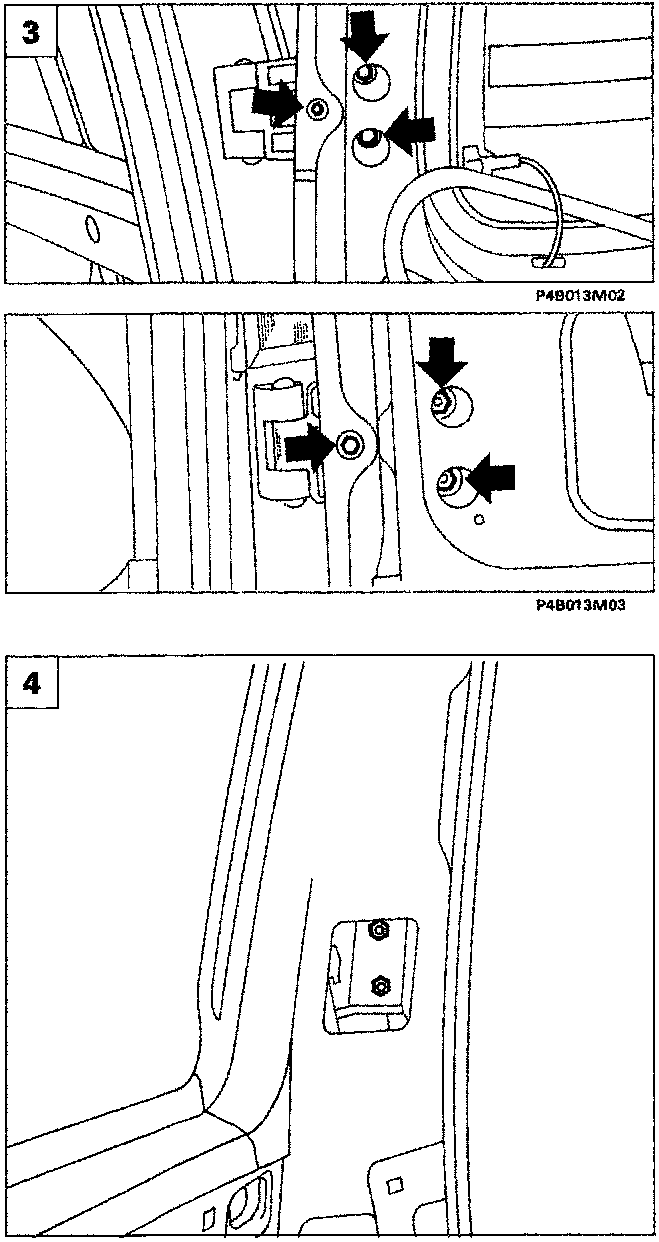

3. undo the bolts fixing the door to the hinges, then remove it from the vehicle.

REMOVING - REFITTING HINGES

Remove the rear door as shown previously.

4. Undo the bolts fixing the hinge to the bodyshell, then remove it from the vehicle;

NOTE The hinges cannot be adjusted at the fixing points on the bodyshell

The illustration shows the centre hinge. Repeat the operations described in point 4 for the lower hinge.
