Removing - refitting door lock

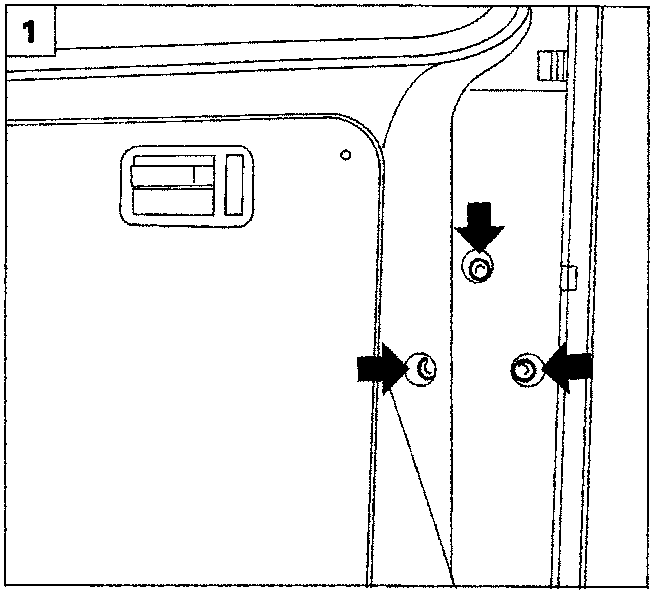

1. undo the bolts fixing the outer handle to the door;

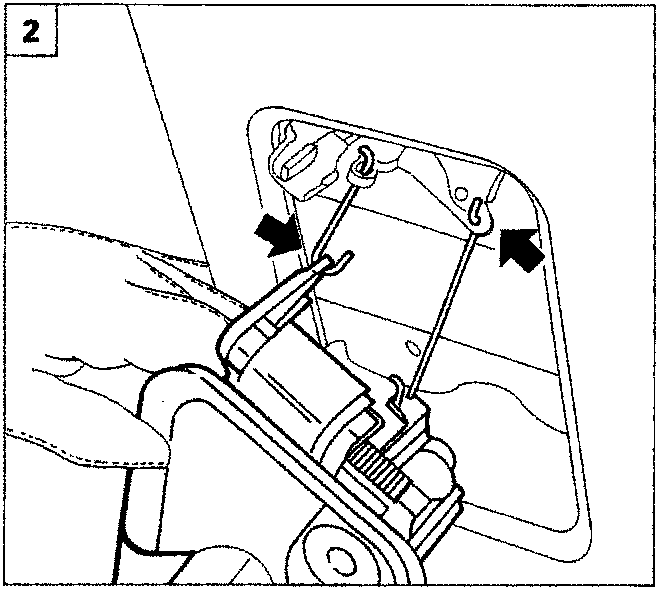

2. disconnect the rods from the handle and the lock, then remove the outer handle from the door.

REMOVING - REFITTING DOOR LOCK

Remove the door panel and the outer door handle as described previously.

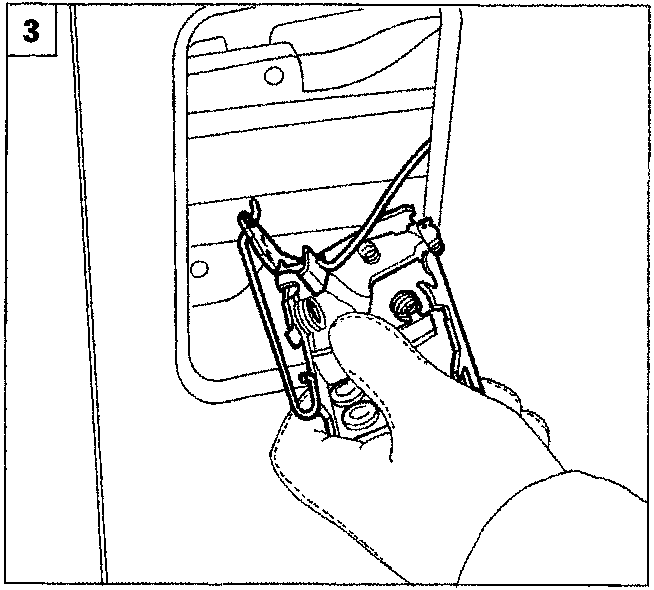

3. Disconnect the rod for the internal opening control lever from the lock, then remove the lock from the door.

REMOVING - REFITTING DOOR CHECK STRAP

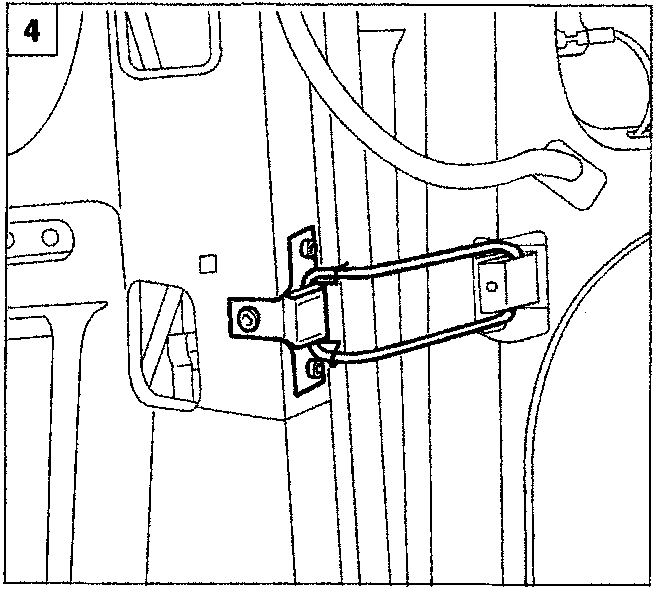

4. Release the check strap from the mounting on the door, undo the bolts fixing it to the door, then remove it from the pillar.
