70 BodyworkDismantling - reassembling seat belt mounting device
Diagram showing a lever mechanism on the side of a vehicle seat
Rear view of a seat frame with arrows pointing to four mounting points on vertical rails
Hand turning a circular adjustment knob on the side of a seat backrest

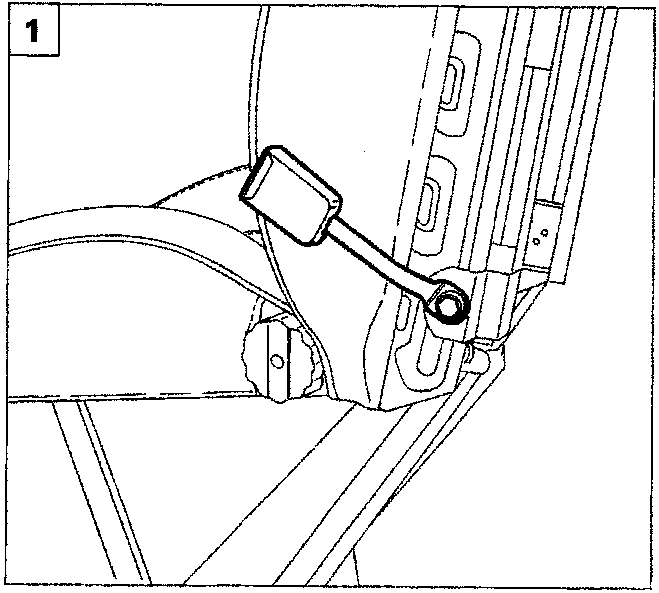

Dismantling - reassembling seat belt mounting device

  1. Undo the bolt fixing the seat belt mounting device to the mounting bracket, then remove it.

Dismantling - reassembling mounting bracket

  1. Undo the fixing bolts and remove the mounting brackets.

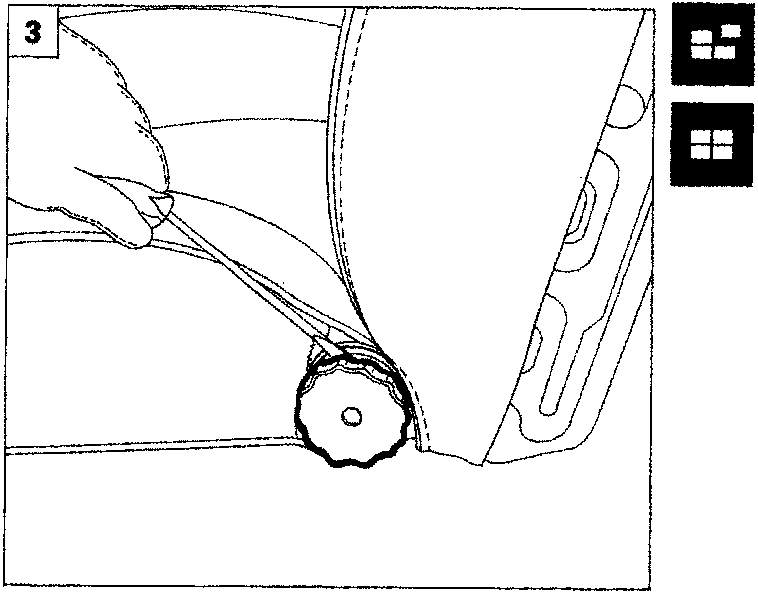

Dismantling - reassembling backrest adjustment knob

  1. Remove the backrest adjustment knob which is a press fit.

NOTE The driver's seat has two backrest adjustment knobs, then repeat the operations carried out for removing the first knob on the second knob as well.

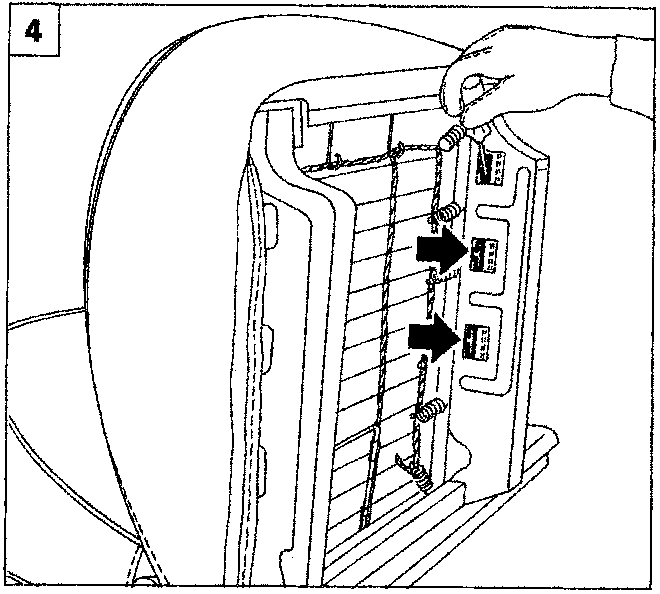

Dismantling - reassembling cushion

Hand pulling a fabric cover away from the side slits of a seat frame
  1. Acting between the side slits, remove the cushion cover from the frame
