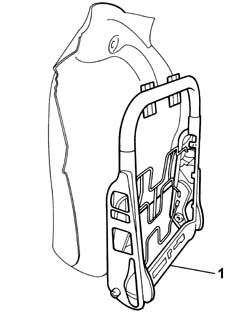

REAR SEAT BACKREST FRAME - R.R.

Operation 7050D54 · REAR SEAT TRIM/PADDING

Removing

Op. 7050A87 JOINT COVER PROTECTION FOR ONE SINGLE REAR SIDE SEAT (ONE) LH OR RH R R WITH SEAT REMOVED

Op. 7050B10 ERAR SEAT HEAD RESTRAINT (ONE), LEFT OR RIGHT - R.R.

Op. 7050B07 BUSHES FOR (ONE) REAR SEAT HEAD RESTRAINT LEFT OR RIGHT - R.R.

Op. 7050A02 SIDE REAR INDIVIDUAL SEAT (ONE), LEFT OR RIGHT - R.R.

Op. 7050A96 REAR SEAT GUARD (ONE) - R.R.

Op. 7050A17 ODDMENTS POCKET IN CENTRE REAR SEAT BACKREST - R.R.

Op. 7050A18 REAR SEAT BACKREST - R.R.

Op. 7050D33 TRIM OF ONE REAR SEAT SQUAB ONE LH OR RH RR WITH SEAT REMOVED

- Remove the rear seat frame.

Refitting

- Fit the rear seat frame.

Op. 7050D33 TRIM OF ONE REAR SEAT SQUAB ONE LH OR RH RR WITH SEAT REMOVED

Op. 7050A18 REAR SEAT BACKREST - R.R.

Op. 7050A17 ODDMENTS POCKET IN CENTRE REAR SEAT BACKREST - R.R.

Op. 7050A96 REAR SEAT GUARD (ONE) - R.R.

Op. 7050A02 SIDE REAR INDIVIDUAL SEAT (ONE), LEFT OR RIGHT - R.R.

Op. 7050B07 BUSHES FOR (ONE) REAR SEAT HEAD RESTRAINT LEFT OR RIGHT - R.R.

Op. 7050B10 ERAR SEAT HEAD RESTRAINT (ONE), LEFT OR RIGHT - R.R.

Op. 7050A87 JOINT COVER PROTECTION FOR ONE SINGLE REAR SIDE SEAT (ONE) LH OR RH R R WITH SEAT REMOVED
