REAR SEAT SQUAB - R+R

Operation 7050A18 · REAR SEAT ASSEMBLY

Removing

- Carry out

Op. 7050A96 REAR SEAT GUARD (ONE) - R R

1. Release the slide lever (1a) by undoing the retaining clip (1b).

2. Release the seat lift link (2a) and spring (2b) from the slide device.

Removing

Op. 7050B10 L/H OR R/H HEAD RESTRAINT (ONE) OF REAR SEAT - R+R

Op. 7050B07 BUSHES FOR (ONE) REAR SEAT HEAD RESTRAINT LEFT OR RIGHT - R.R.

Op. 7050A98 QUICK RELEASE PASSENGER COMPARTMENT REAR SEATS - R.R.

Op. 7050A96 REAR SEAT GUARD (ONE) - R R

Op. 7050A68 LH OR RH PROTECTION (ONE) OF ONE REAR SEAT SQUAB RELEASE MECHANISM R R

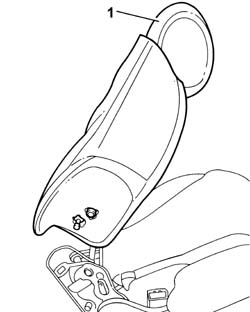

1. Remove the rear seat backrest.

1. Release the links controlling device (1a) by undoing the retaining clips (1b).

2. Undo the bolt fixing the slide device.

3. Remove the retaining clip (3a) that secures the device to the release lever (3b) and remove the slide device (3c).

Refitting

Op. 7050A68 LH OR RH PROTECTION (ONE) OF ONE REAR SEAT SQUAB RELEASE MECHANISM R R

Op. 7050A96 REAR SEAT GUARD (ONE) - R R

Op. 7050A98 QUICK RELEASE PASSENGER COMPARTMENT REAR SEATS - R.R.

Op. 7050B07 BUSHES FOR (ONE) REAR SEAT HEAD RESTRAINT LEFT OR RIGHT - R.R.

Op. 7050B10 L/H OR R/H HEAD RESTRAINT (ONE) OF REAR SEAT - R+R

Refitting

- Position the seat slide device in its seat.

- Position the new retaining clips on the device the refit the release lever.

- Tighten the bolt fixing the seat slide device.

- Do up the slide device control links and fit new retaining clips.

- Fit the seat lift link and spring to the slide device.

- Fit the slide lever.

- Carry out

Op. 7050A96 REAR SEAT GUARD (ONE) - R R

Removing

- Carry out

Op. 7050A96 REAR SEAT GUARD (ONE) - R R

1. Release the slide lever (1a) by undoing the retaining clip (1b).

2. Release the seat lift link (2a) and spring (2b) from the slide device.

1. Release the links controlling device (1a) by undoing the retaining clips (1b).

2. Undo the bolt fixing the slide device.

3. Remove the retaining clip (3a) that secures the device to the release lever (3b) and remove the slide device (3c).

Refitting

- Position the seat slide device in its seat.

- Position the new retaining clips on the device the refit the release lever.

- Tighten the bolt fixing the seat slide device.

- Do up the slide device control links and fit new retaining clips.

- Fit the seat lift link and spring to the slide device.

- Fit the slide lever.

- Carry out

Op. 7050A96 REAR SEAT GUARD (ONE) - R R
