EngineLabel not available
LABEL NOT AVAILABLE
Removing
- Position the vehicle on a lift.
- Raise the vehicle.

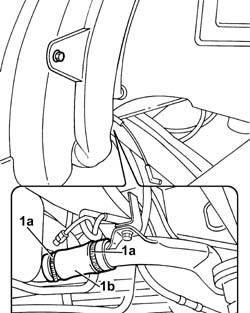

1. Open the retaining bands (1a) and release and remove the hose (1b).
Refitting
- Fit the hose in place and restore the retaining bands.
Removing
- Position the vehicle on a lift.
- Raise the vehicle.
1. Open the retaining bands (1a) and release and remove the hose (1b).
Refitting
- Fit the hose and in place and restore the retaining bands.
