AUTOMATIC TRANSMISSION ASSEMBLY

Operation 2130A · AUTOMATIC TRANSMISSION WITH DIFFERENTIAL

2.0 16v, 2.0 16V JTD

Removing

- Turn the ignition key to the OFF position.

- Disconnect the negative battery terminal.

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 2135B52 ELECTRONIC AUTOMATIC TRANSMISSION ELECTRIC CIRCUIT -ECU MOUNT R R

Turn the relevant interface module block in the arrowed direction using finger pressure only:

1 - heat exchanger by-pass solenoid - blue - 3 pin

Op. 4450B02 LEFT FRONT WHEEL - R.R

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

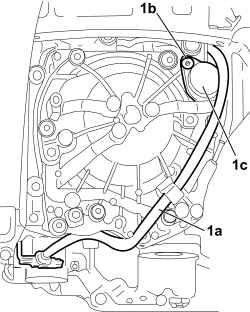

1. Rlease wiring (1a) from the anchorages, undo bolts (1b) and remove the heat exchanger by-pass solenoid (1c).

Refitting

Always replace both by-pass solenoid o-rings.

Position the heat exchanger by-pass solenoid in its seat.

Tighten the fixing bolt to the recommended torque.

Attach the wiring to the anchorages.

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

Op. 4450B02 LEFT FRONT WHEEL - R.R

Fit the relevant block in the interface module.

Op. 2135B86 SEALING RINGS ON ELECTRONIC AUTOMATIC TRANSMISSION SYSTEM WIRINGCONNECTOR - REPLACE

Op. 1048A11 AIR CLEANER ASSEMBLY - R R FOR VERSIONS WITH AUTOMATIC TRANSMISSION

Connect the negative battery terminal.
