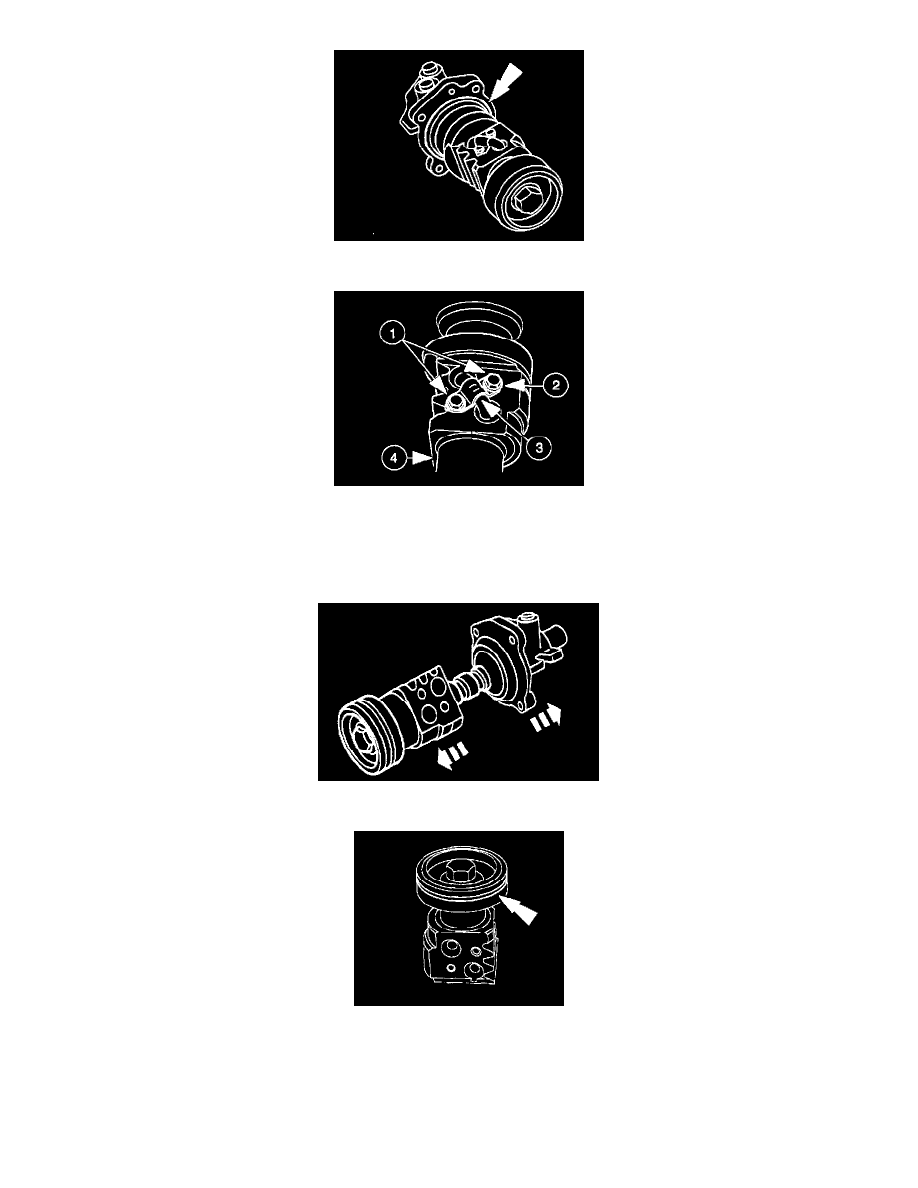

10. Remove and discard the gasket.

11. Remove the ball bearings.

1. Remove the bolts.
2. Remove the steering gear ball return guide clamp.
3. Remove the steering gear ball return guide.
4. Rotate the piston over a container to collect the 28 steering gear worm balls.

12. Remove the input shaft valve and housing assembly from the piston.

13. Remove and discard the seal.
