Transit Connect L4-2.0L (2010)
Flex Plate: Specifications

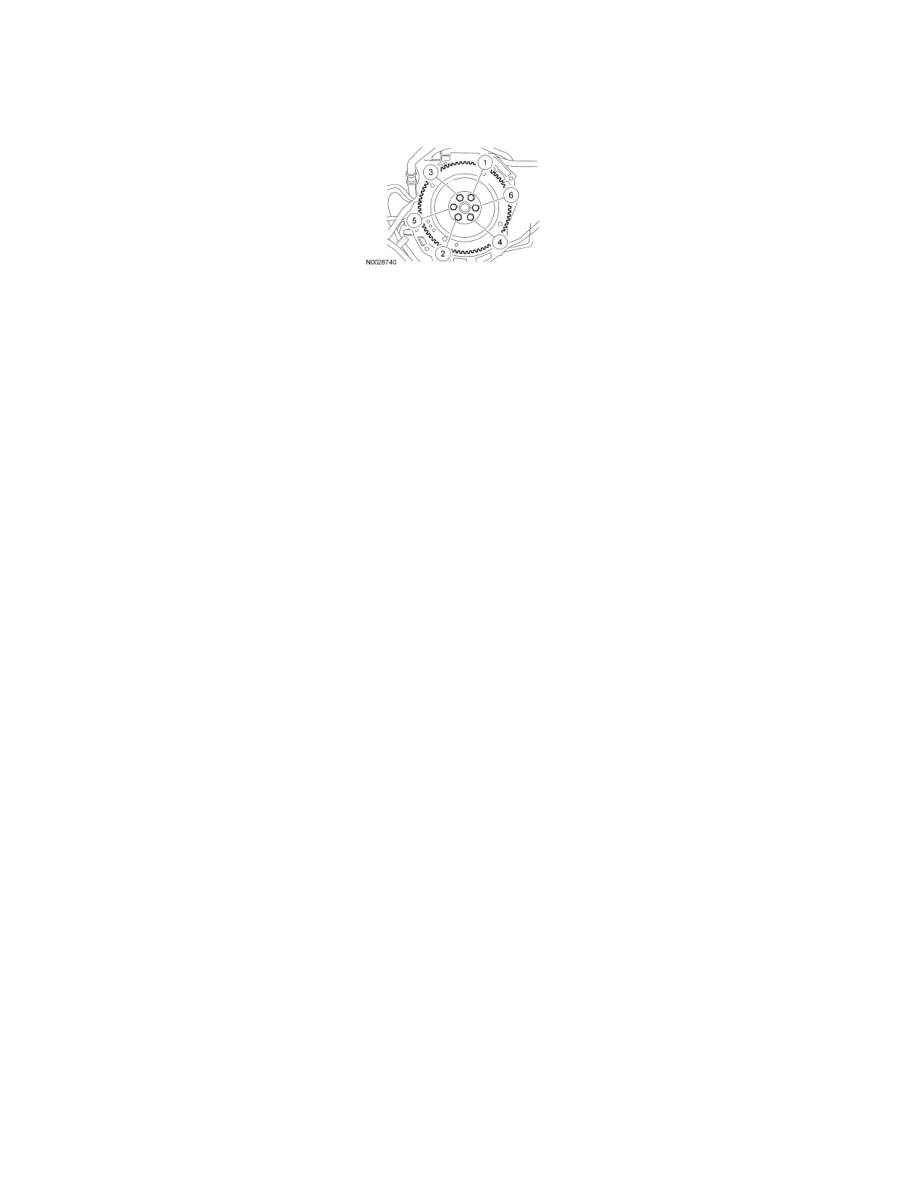

Install the flexplate or flywheel and the 6 bolts. Tighten the bolts in the sequence shown in 3 stages:
Stage 1: Tighten to.........................................................................................................................................................................................50 Nm (37 lb-ft).
Stage 2: Tighten to.........................................................................................................................................................................................80 Nm (50 lb-ft).
Stage 3: Tighten to.......................................................................................................................................................................................112 Nm (83 lb-ft).
