Canyon 2WD L4-2.9L (2008)
Dimmer Switch: Locations

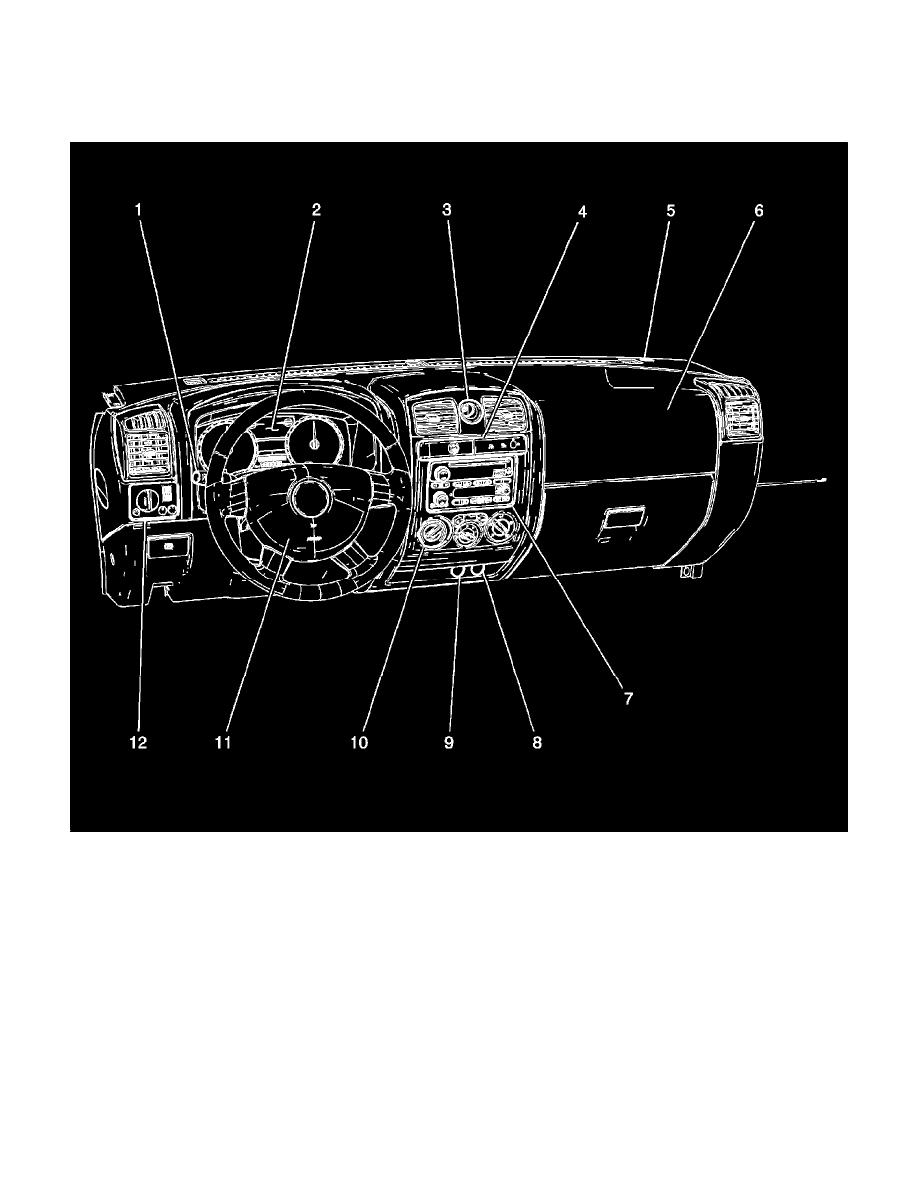

Instrument Panel/Center Console Component Views
Front of the I/P Components
1 - Turn Signal/Multifunction Switch
2 - Instrument Panel Cluster (IPC)
3 - Hazard Switch
4 - Accessory Switch
5 - Ambient Light Sensor
6 - Inflatable Restraint I/P Module
7 - Radio
8 - Auxiliary Power Outlet 2
9 - Auxiliary Power Outlet 1
10 - HVAC Control Module
11 - Inflatable Restraint Steering Wheel Module
12 - Headlamp and Panel Dimmer Switch
