Ignition Coil: Diagrams
- Make
- GMC
- Model
- Savana 3500
- Engine
- V8-6.0L
- Year
- 2007
- Section
- Ignition System › Ignition Coil › Diagrams
Powertrain ManagementDiagrams · page 1 of 8
Ignition Coil: Diagrams

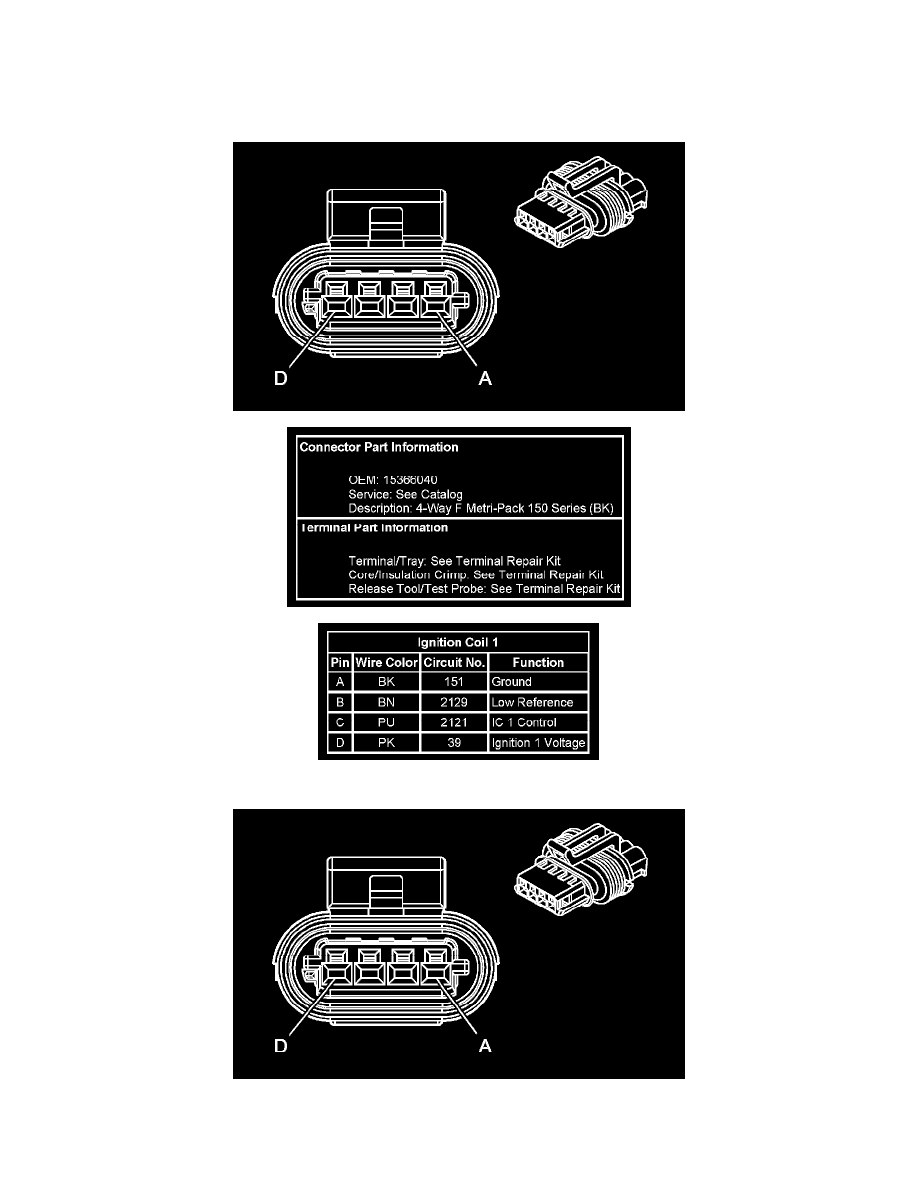

Engine Controls Connector End Views
Ignition Coil 1
Ignition Coil 2
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
