GMC Savana 4500 V8-6.0L (2010)17 · Lighting and Horns
17 · Electrical

Underhood Lamp: Diagrams

Make
GMC
Model
Savana 4500
Engine
V8-6.0L
Year
2010
Section
Underhood Lamp › Diagrams
Lighting and HornsDiagrams · page 1 of 2
background image

Underhood Lamp: Diagrams

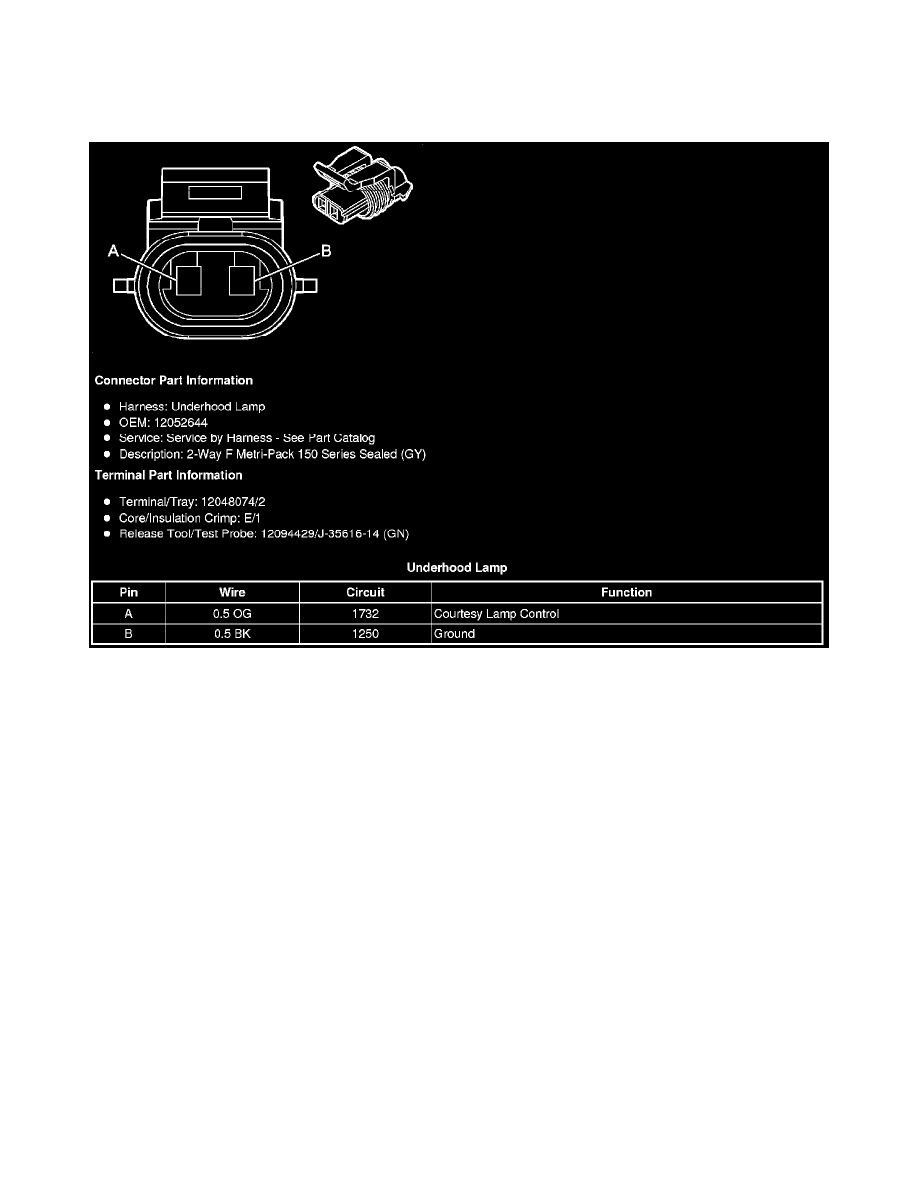

Component Connector End Views

Underhood Lamp
