Ignition Coil: Diagrams

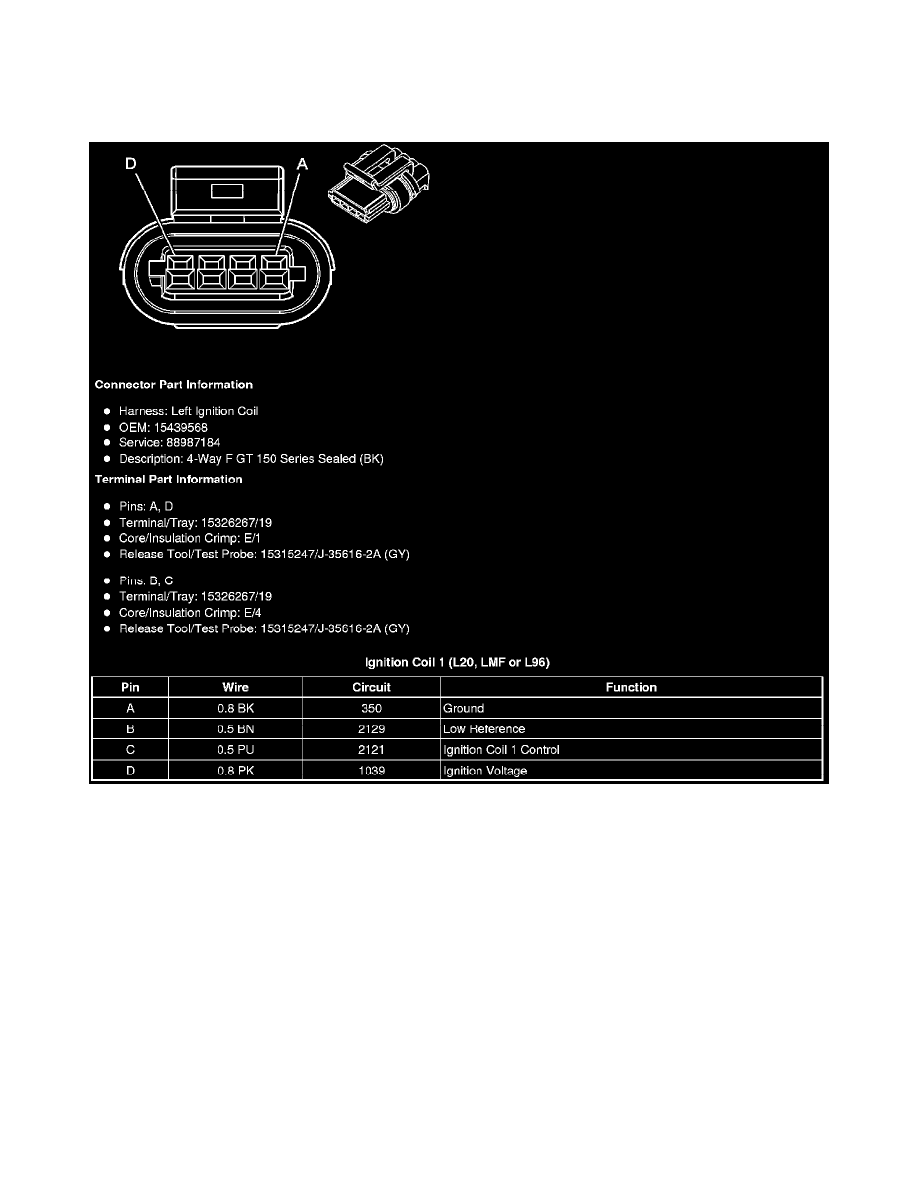

Component Connector End Views

Ignition Coil 1 (L20, LMF or L96)

Ignition Coil 2 (L20, LMF or L96)
