Drive Belt: Testing and Inspection
- Make
- Honda
- Model
- Civic
- Engine
- L4-1.8L CNG
- Year
- 2008
- Section
- Drive Belt › Testing and Inspection
MaintenanceTesting and Inspection · page 1 of 2
Drive Belt: Testing and Inspection
Drive Belt Inspection
1. Inspect the belt for cracks or damage. If the belt is cracked or damaged, replace it.

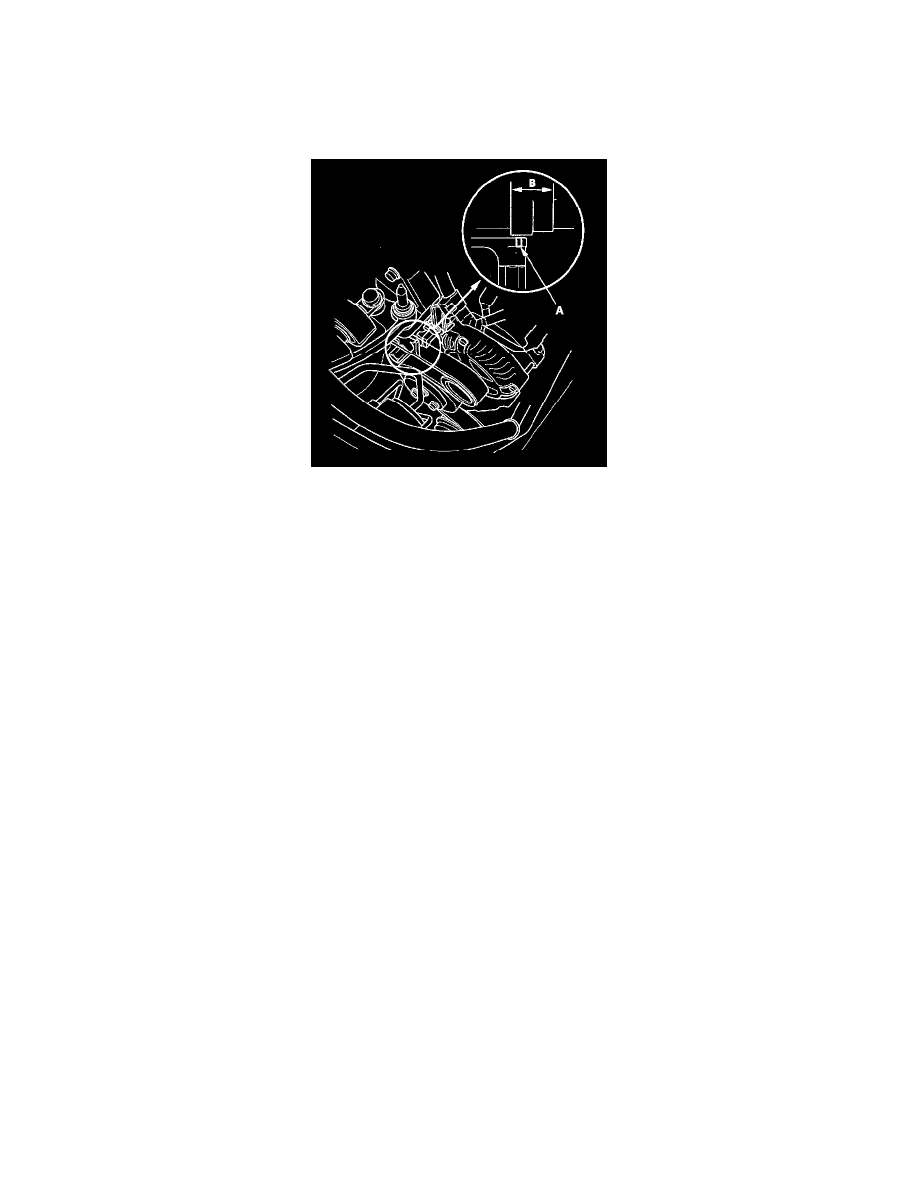

2. Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt. After
you inspected or replaced the drive belt, go to step 3.
3. If the maintenance minder required you to inspect the drive belt, reset the maintenance minder, and this procedure is complete.
