Sound Proofing / Insulation: Locations

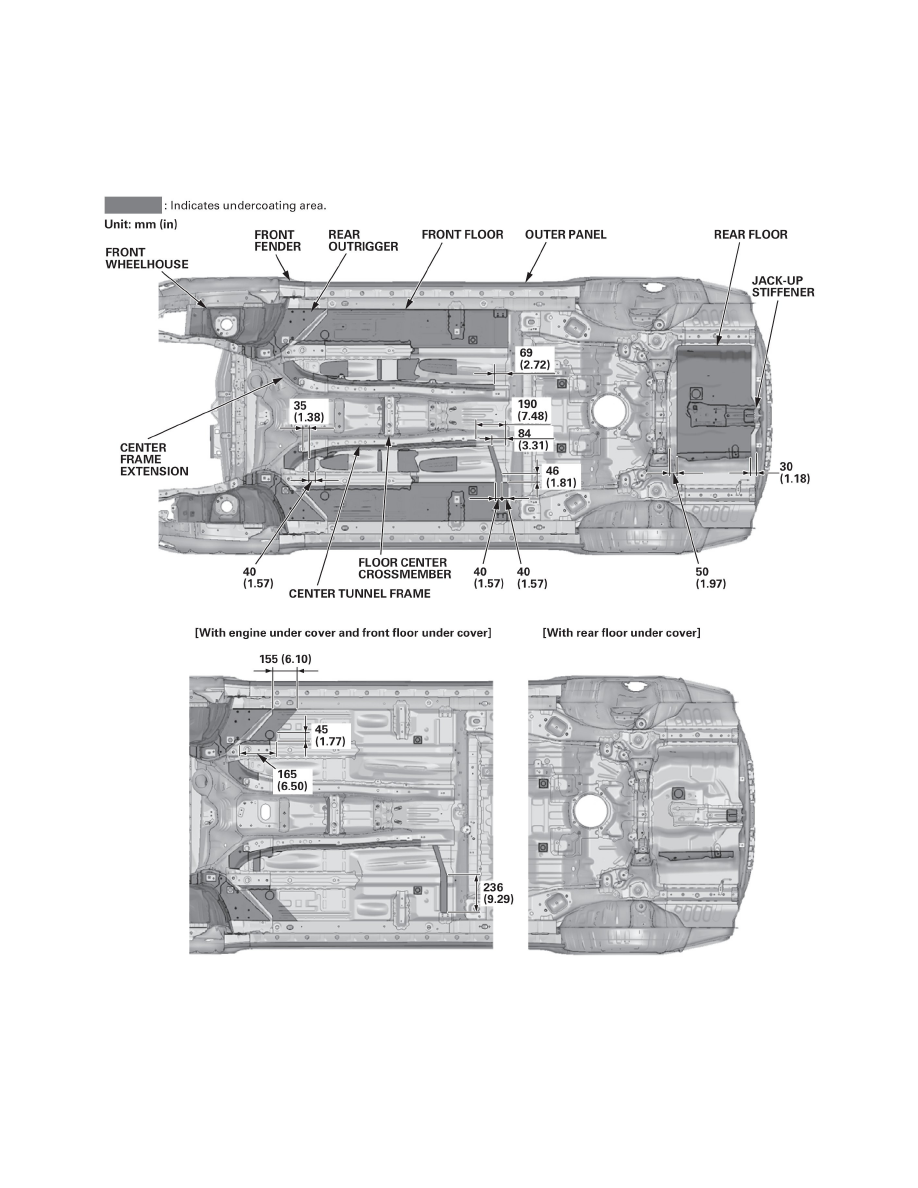

Undercoating Areas
1. Apply the undercoat to the areas shown.
NOTE:
-
Coating thickness: 0.4 mm (0.016 in) min.
-
Front wheelhouse and dashboard lower coating thickness 0.5 mm (0.020 in).
