Sound Proofing / Insulation: Locations

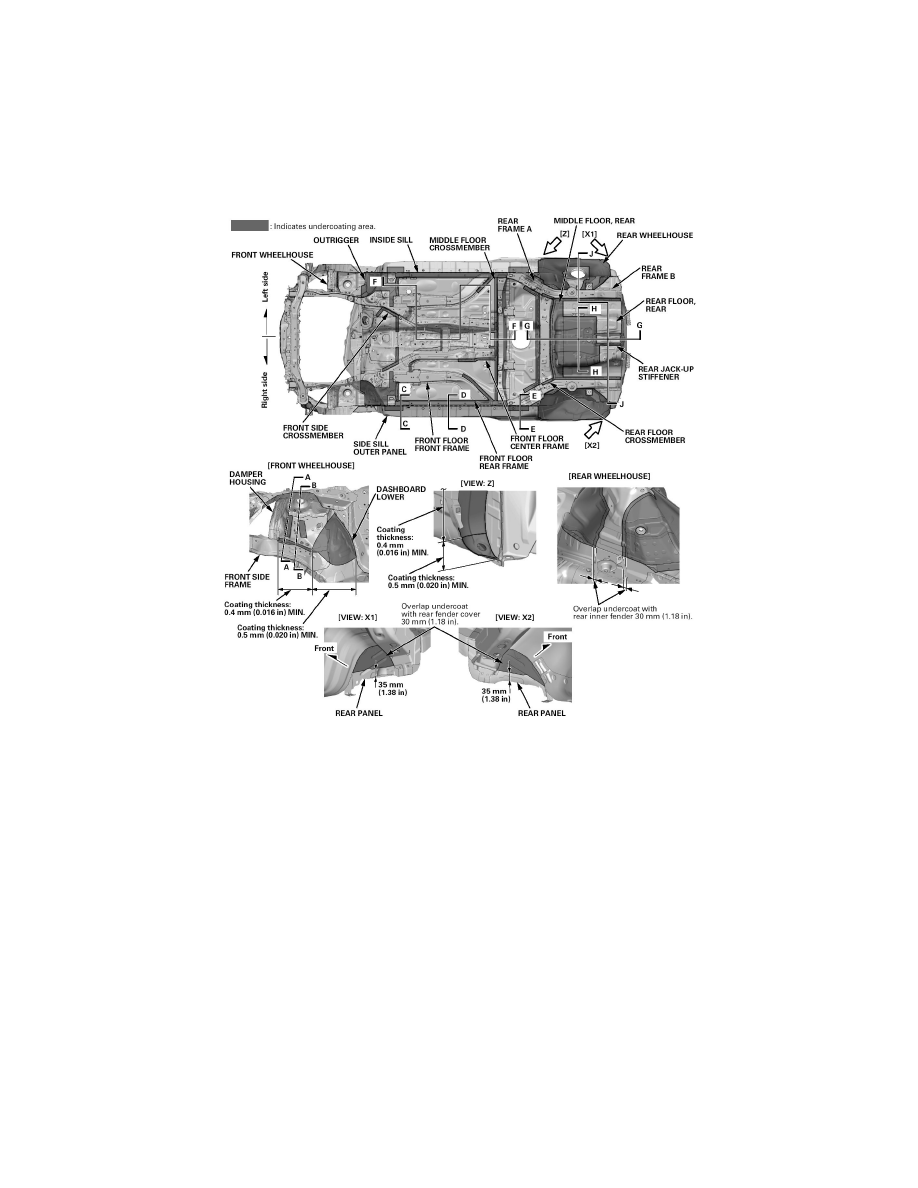

Undercoating Areas

Apply undercoat to the areas shown.

NOTE:

-

Coating thickness: 0.4 mm (0.016 in) MIN.

-

Front wheelhouse, rear wheelhouse, and dashboard lower coating thickness 0.5 mm (0.020 in).

-

Apply the undercoat 10 mm (0.39 in) from the edge of the welded flanges.
